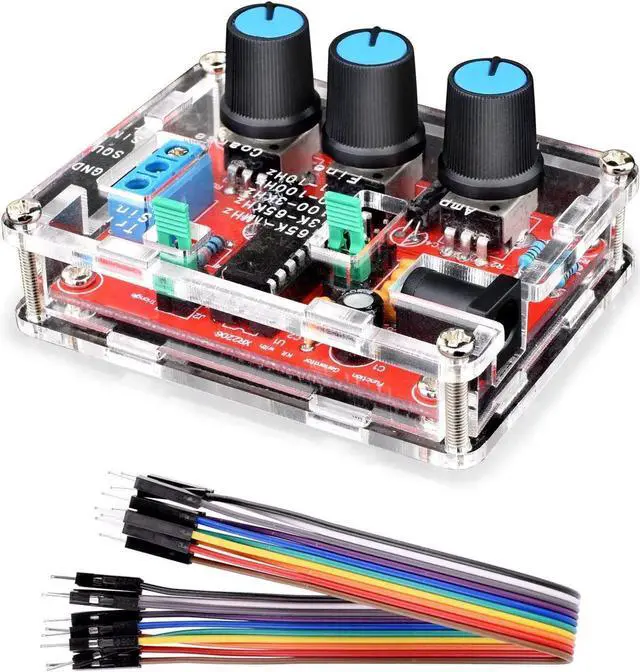

XR2206 Function Generator - Werleo Updated XR2206 DIY Kit Signal Generator with Jumper Wires Cable - Sine Triangle Square Output 1Hz-1MHz Adjustable Frequency Amplitude
- Werleo XR2206 Great Function Signal Generator DIY Kit Comes with the 10p male to male Jumper cables
- High Precision, can generate sine/triangle/square waveforms.
- Output frequency range: 1Hz-1MHz and Adjustable frequency and amplitude.
- Wide power supply range, use 9-12V external power or 9V battery(NOT Included).

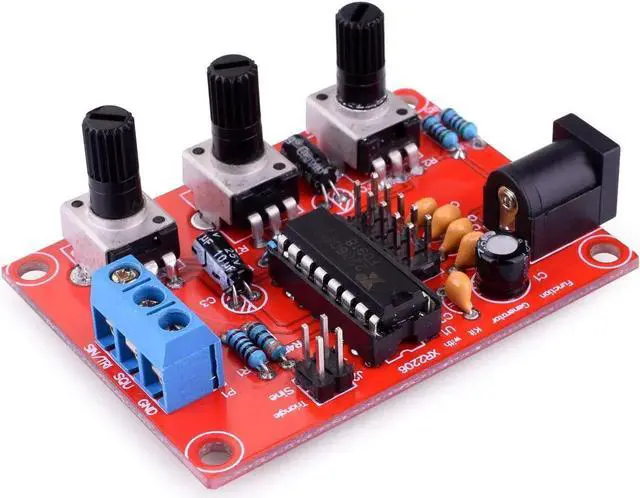

- This is a DIY kit with All are through hole components,easily assemble the Function Generator by yourself.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Highlights: Werleo XR2206 Great Function Signal Generator DIY Kit Comes with the 10p male to male Jumper cables High Precision, can generate sine/triangle/square waveforms.
Output frequency range: 1Hz-1MHz and Adjustable frequency and amplitude. Wide power supply range, use 9-12V external power or 9V battery (NOT Included). This is a DIY kit with All are through hole components, easily assemble the Function Generator by yourself.
Specifications: Voltage
Supply: 9-12V
DC Input Waveforms: Square, Sine
& Triangle Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE Amplitude: 0-3V at 9V
DC Input Distortion: Less than 1% (at 1KHz)
Flatness: + 0.05 dB 1Hz - 100kHz
SQUARE WAVE Amplitude: 8V (no load) at 9V
DC Input Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE Amplitude: 0-3V at 9V
DC Input Linearity: Less than 1% (up to 100KHz) 10mA

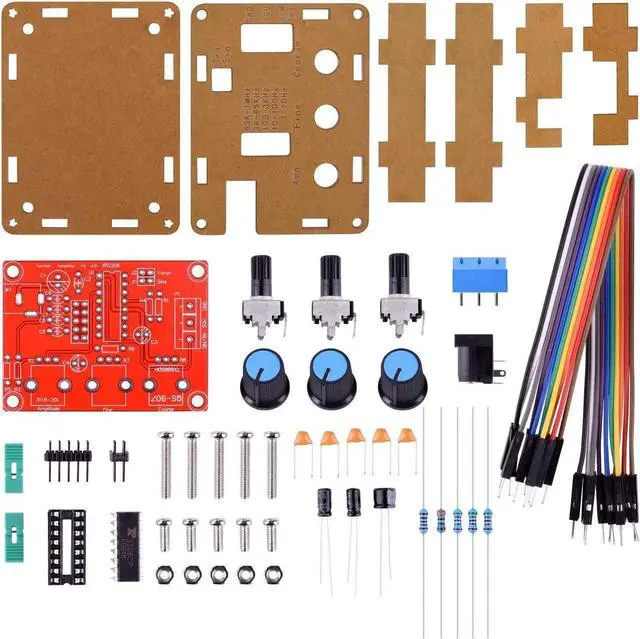

Package Includes: 1 * Kuman Signal Generator DIY Kit 1 * 10P male to male Jumper Wires
