Quick test Digital LCD Power Bank Supply Tester Computer 20/24 Pin Power Supply Tester Support 4/8/24/ATX 20 Pin Interface

Digital LCD Computer 20/24 Pin Power Supply Tester

Description:

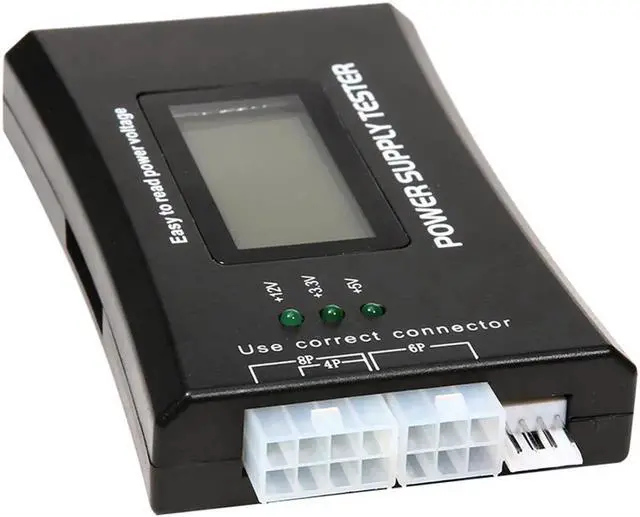

The item is a LCD power supply tester.

It can test your power supply and avoid damage to your expensive computer equipment with this power supply tester.

The device is suitable for the ambitious hobby user, as well as for a quick functional check in a specialized trade.

Features:

Housing material: Plastic

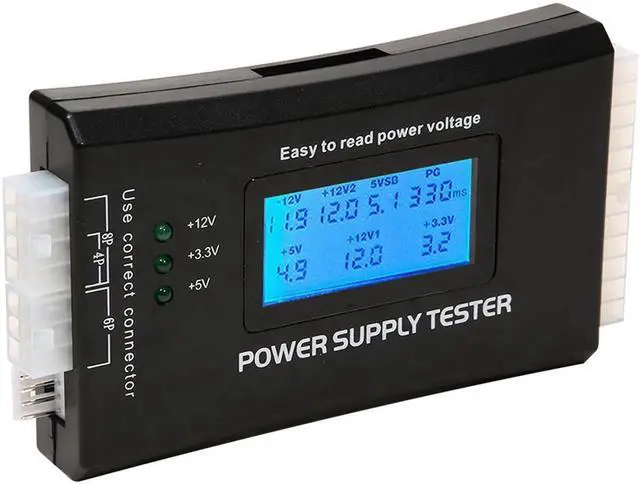

LCD indicate the status of voltage

The power supply tester is a robust voltage tester for PC-power supplies: ATX, BTX, and ITX compliant power supplies can be tested.

Simple and easy to use, no batteries are needed. Connect to the power supply's 20-pin Molex connector.

Equipped with +3.3V, +5V, +VSB, -5V, -12V and +12V leads for monitoring voltage output.

Operation:

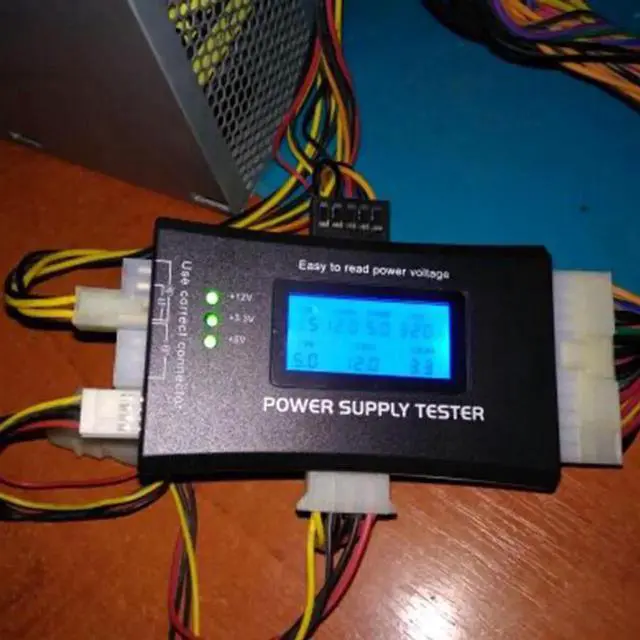

1.Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite.

2.Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal.

3.If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.

Specification:

Housing material: Plastic

Support 24Pin, ATX 20Pin interface

Support SATA interface

Support 8Pin, 4Pin interface

Support PCI-E graphics 6Pin interface

Support the floppy disk interface

Support ATE hard disk interface

Test voltage: 3.3V, -12V, 12V1, 12V2 + 5 VSB, + 5V, and PG time

Size: approx. 126 x 64 x 18.5mm/4.96 x 2.51 x 0.72 inch

Package included:

1 x LCD Power Supply Tester
