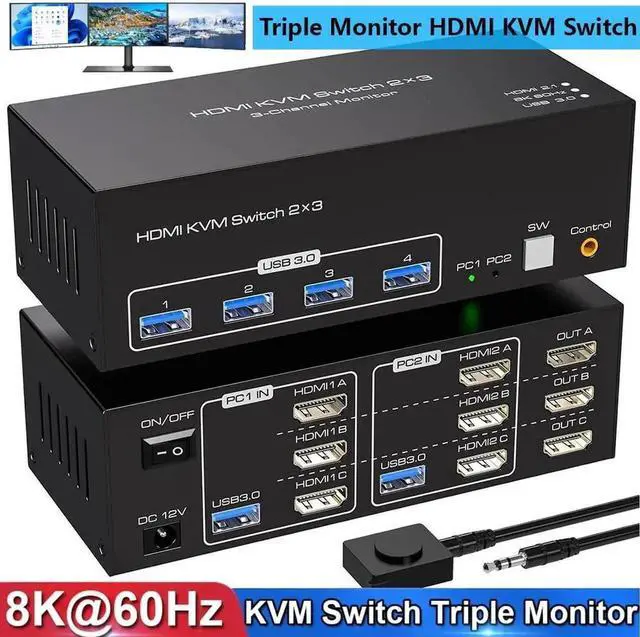

8K@60Hz HDMI KVM Switch 3 Monitors 2 Computers, USB 3.0 Triple Monitor KVM Switcher with 4 USB Ports for 2 PCs Support Extended&Copy Mode, Wired Controller 12V DC Adapter 2 USB Cables Included

8K 60Hz 2x3 HDMI USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and three HDMI monotor to control 2 computers, laptops, game consoles.

It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home; You can switch between 2 computers using a manual switch located on the top of the KVM unit.

Features:

1. 2 computers/laptops share one set of keyboard, mouse, and 3 HDMI monitors

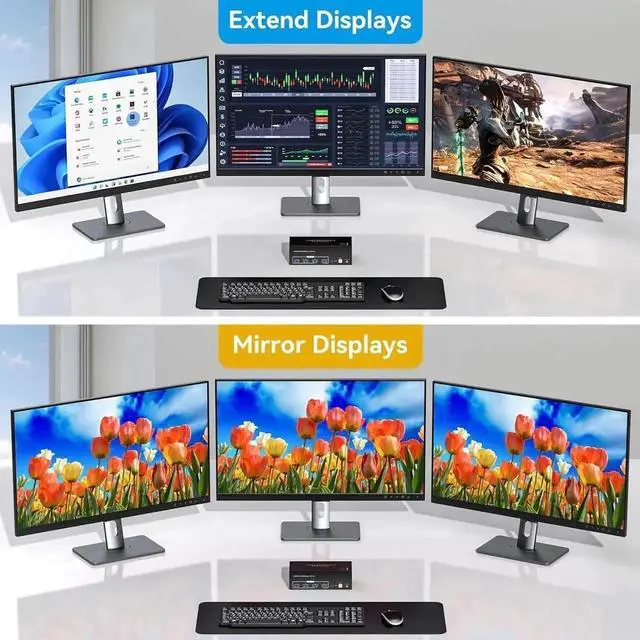

2. Triple monitors output support up to 8K@60Hz for extended and mirror display, support HDMI 2.1 and HDCP 2.3 standards.

3. 2

Switching modes: Button switch and wired remote.

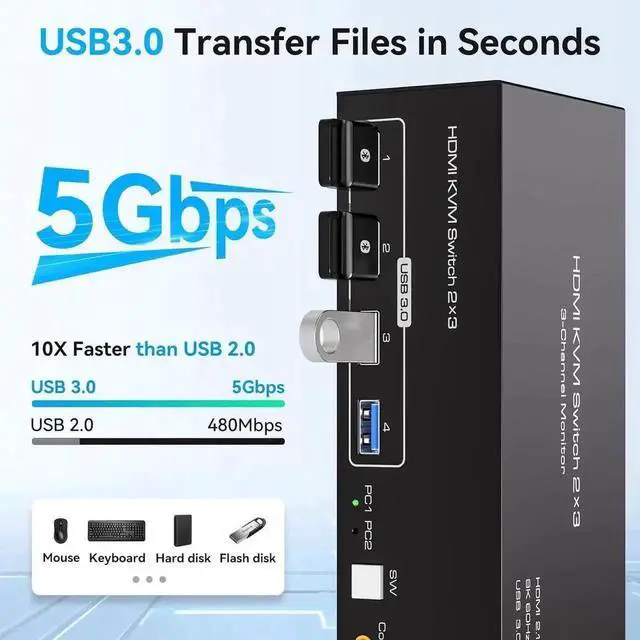

4. With extra 4 x 5Gbps USB 3.0 ports.

5. Cross-support most major OS including Windows, Linux, Mac, and more.

6. The ports that need to plug in HDMI/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.

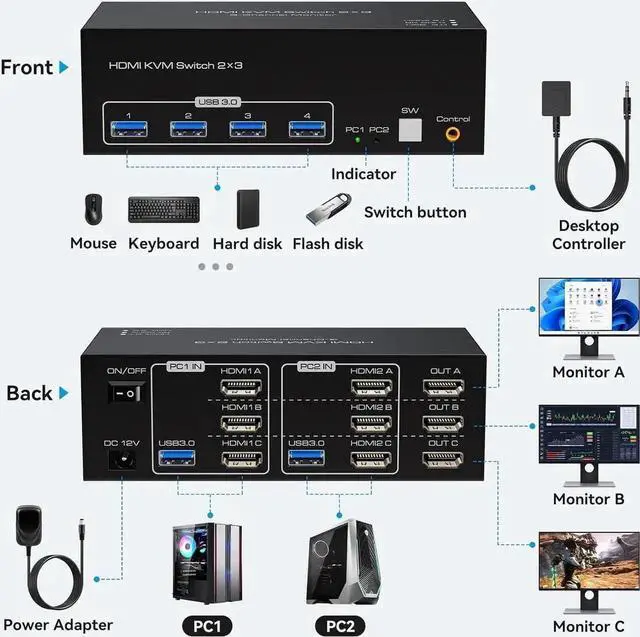

Installation steps:

1. Insert the adapter into the KVM;

2. Plug the 3* HDMI cable into the KVM switch and monitor; (Output)

3. Plug the HDMI cable, and USB cable into the KVM switch and your computer/laptop (HDMI cables are not included) (Input)

Please check whether HDMI IN 1A, HDMI IN 1B, HDMI IN 1C, and USB IN 1 corresponding, and whether HDMI IN 2A, HDMI IN 2B, HDMI IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.

HDMI IN 1A + HDMI IN 1B + HDMI IN 1C + USB IN 1=PC1

HDMI IN 2A + HDMI IN 2B + HDMI IN 2C + USB IN 2=PC2

4. Insert the mouse and keyboard into the KVM switch

Note:

1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 3 HD-MI cables connected to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
