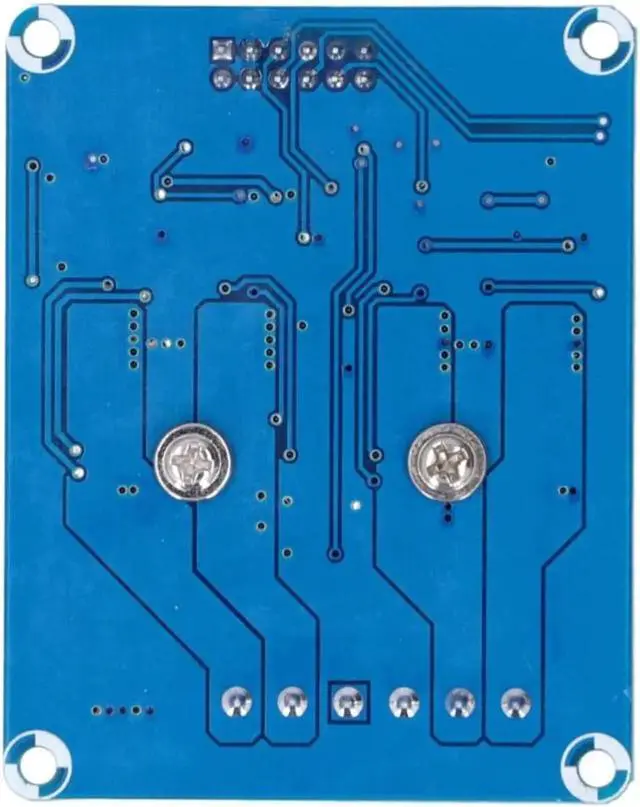

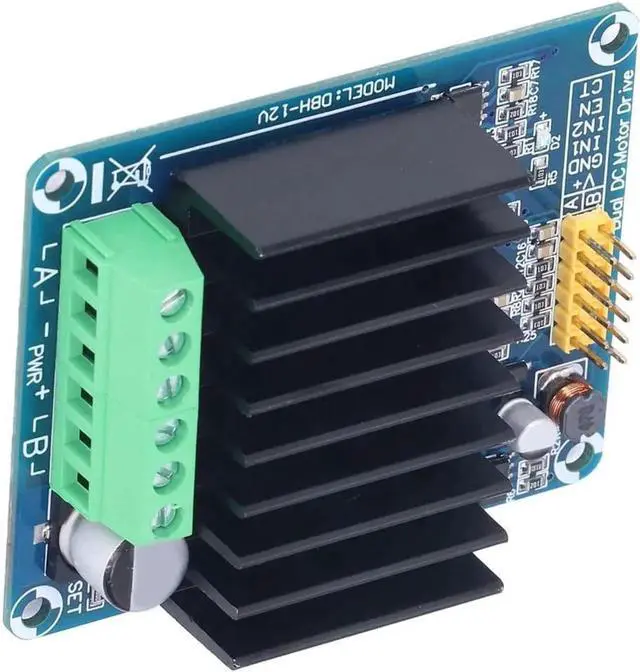

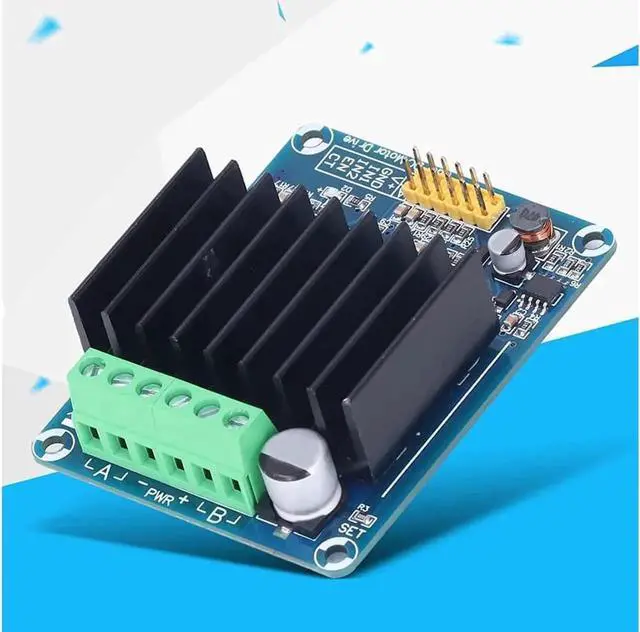

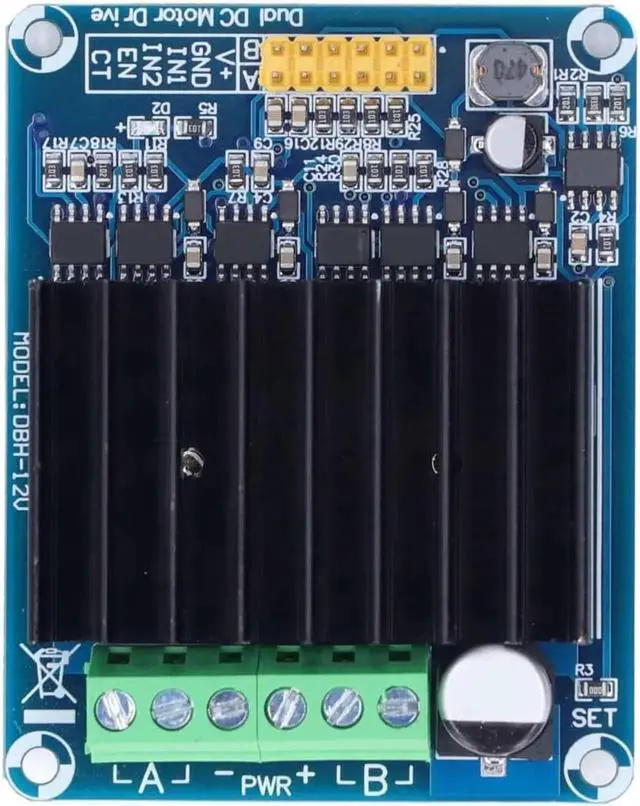

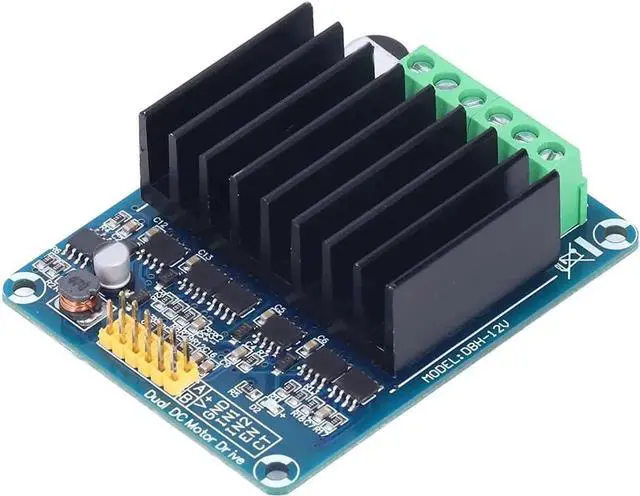

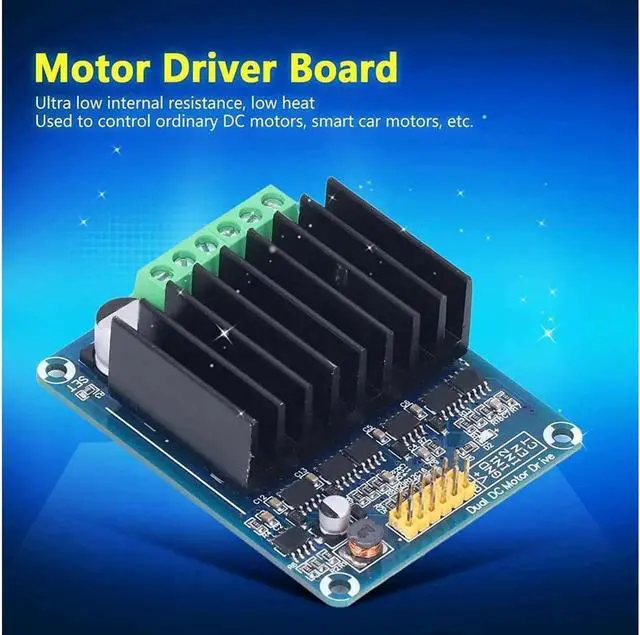

Motor Driver Module DC 5?15V 30A Dual Channel H Bridge Motor Drive Module Smart Car Driver Board for Intelligent Automobile Motor
- MATERIAL: The motor driver board adopts PCB material, which has high speed switch design, practical and efficient, helping you to achieve fast operation.
- REVERSIBLE CONTROL: This DC motor drive module has reversible control and PWM speed control to control the normal operation of the entire motor.
- FEATURES: This stepper motor driver module has ultra low internal resistance and low heat, which improves the running time and life of the entire motor.
- CONVENIENT CARRYING: The h bridge motor driver module is small in size, light in weight, convenient and fast in use, and stable in performance, which is convenient for carrying.
- WIDE APPLICATIONS: This high power motor driver module has fine workmanship and is used to control ordinary DC motors, smart car motors, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Motor Driver Module
Material: PCB
Working Voltage: DC5-15V
Standby Current: <30mA±5mA
Working Current: 0A-30A (Maximum) / Per Channel
PWM Mode: Duty
Cycle: 0-98%.
Frequency: Universal Motor 16 kHz; Coreless Motor 80 kHz; TEC 500 Hz-80 kHz
Input Voltage Levels: Low 0- 0.5 V; High 2.5 V-13 V (Typical
Unit Levels: 3.3 V, 5 V, 12 V)
Current Sampling: CT Pin Output Voltage (V) = Current (A) x 0155
Package List:
1 x Motor Driver Module
Note:
Use according to parameter voltage
