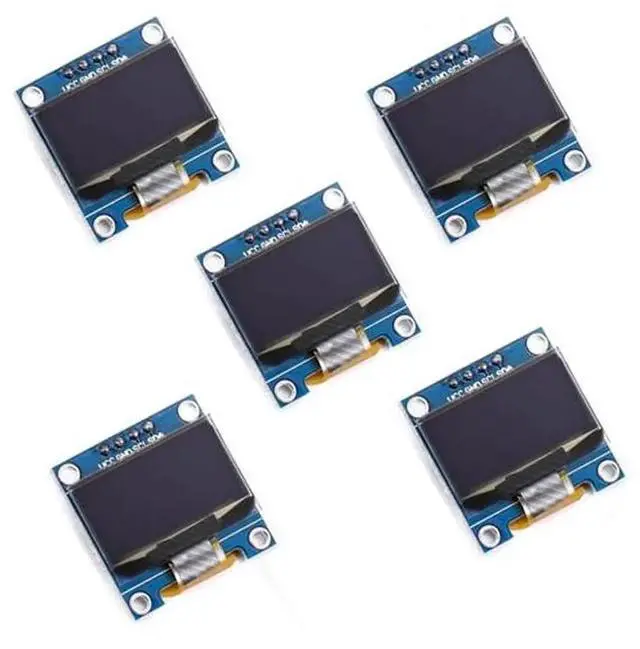

Main image of 0.96 inch LCD OLED Display Board Module 12864 128X64 IIC I2C SSD1306 Driver 4 Pins for Raspberry Pi Arduino(5pcs, White Light)

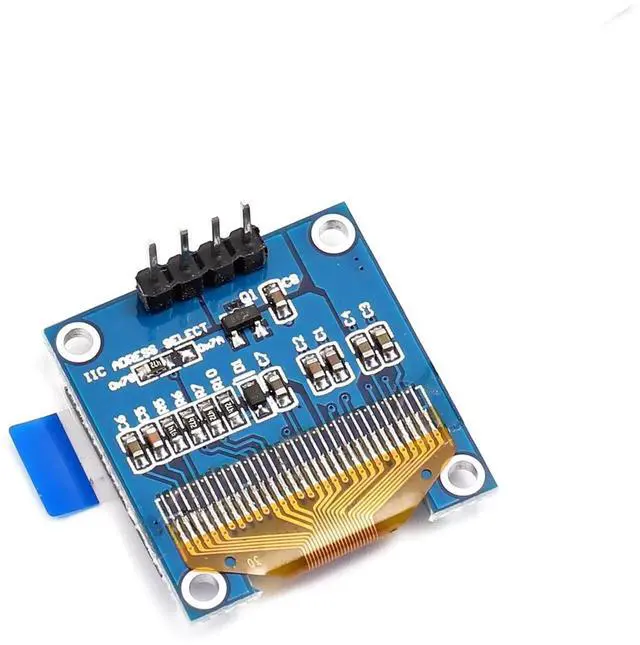

Alt view image 2 of 2 - 0.96 inch LCD OLED Display Board Module 12864 128X64 IIC I2C SSD1306 Driver 4 Pins for Raspberry Pi Arduino(5pcs, White Light)

Shop All Aomoproing Products | Visit Chancelv Store

0.96 inch LCD OLED Display Board Module 12864 128X64 IIC I2C SSD1306 Driver 4 Pins for Raspberry Pi Arduino(5pcs, White Light)

Pins has been soldered,comes in a small box to prevent it from being dropped during transportation
There is also a removable transparent film on each OLED glass surface for scratch resistant protection until use.
Pin Definition: VCC,GND,SCL, SDA
Voltage: 3V ~ 5V DC
Ultra-low power consumption: full screen lit 0.08W

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Super high brightness and contrast are adjustable With embedded driver/controller Interface type is IIC Pin Definition: VCC , GND,SCL, SDA Voltage: 3V ~ 5V DC Working Temperature: -30 ° ~ 70 ° Character Colors: White Drive Duty: 1/64 Duty High resolution: 128 * 64 Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx) Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx) Driver IC: SSD1306(Original)
