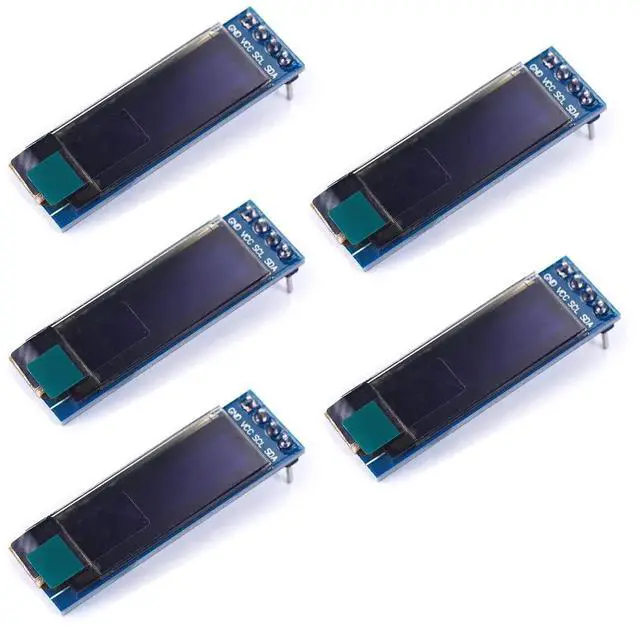

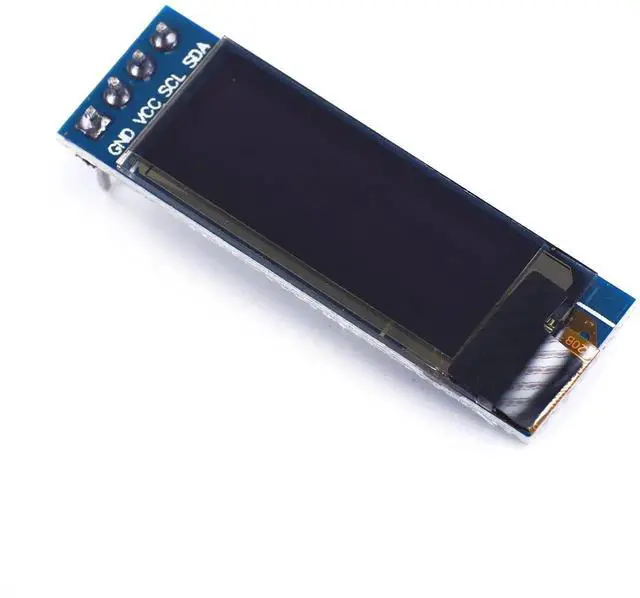

0.91 inch OLED LCD Display Module SSD1306 IIC 128x32 LCD OLED Screen 3.3V~5V 4PIN for Arduino White 5PCS
- OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.
- Driver IC: SSD1306
- Resolution: 128 x 32 IIC interface Display
- Pin Description: GND: Power Ground VCC: Power + (DC 3.3 ~5v) SCL: Clock Line SDA: Data Line
+
+
Overview
Specs
Reviews
Description: OLED display, no need backlight, self-illumination. The display performance is better than the traditional LCD display, also lower consumption. Specifications: Driver IC: SSD1306 Size: 0.91 inch OLED Resolution: 128 x 32 Size: 38 * 12 mm Interface Type: IIC interface Pin Description: GND: Power Ground VCC: Power + (DC 3.3 ~5v) Operating temperature:-40 ~ 85 SCL: Clock Line SDA: Data Line
