6PCS Dual High-Power MOSFET Trigger Switch Drive Module 0-20KHz PWM Adjustment Electronic Switch Control Board Motor Speed Controller Lamp Brightness Control, DC 5V-36V 400W, 15A (Max 30A)
- Working voltage: DC 5V-36V, the trigger source: digital high-low (DC 3.3V - 20V), continuous current: 15A, maximum current and power: 30A, 400W, operating Temperature: -40-85, size: 1.34x0.67x0.47inch/34 x 17 x12mm (length x width x height)

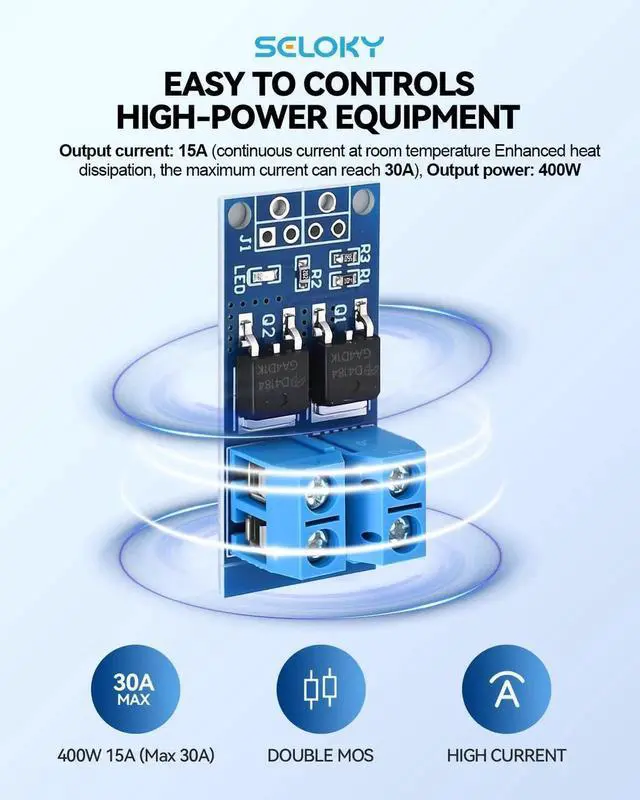

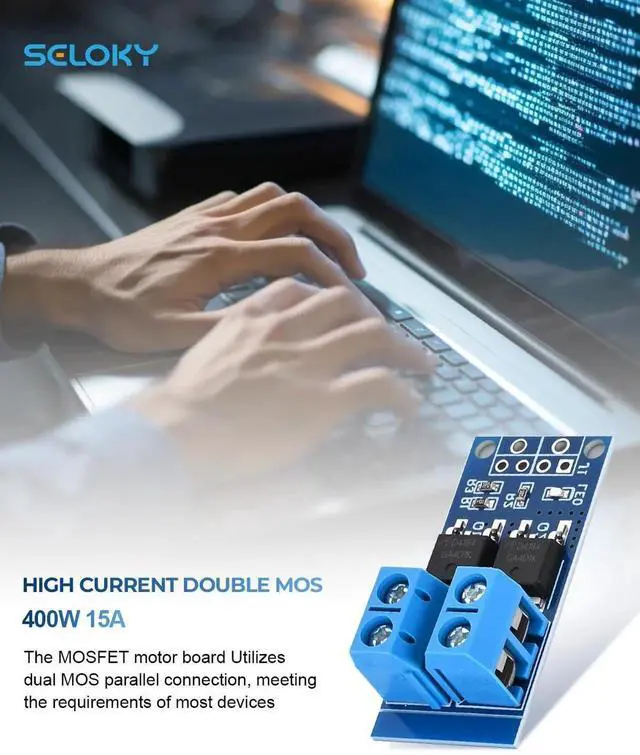

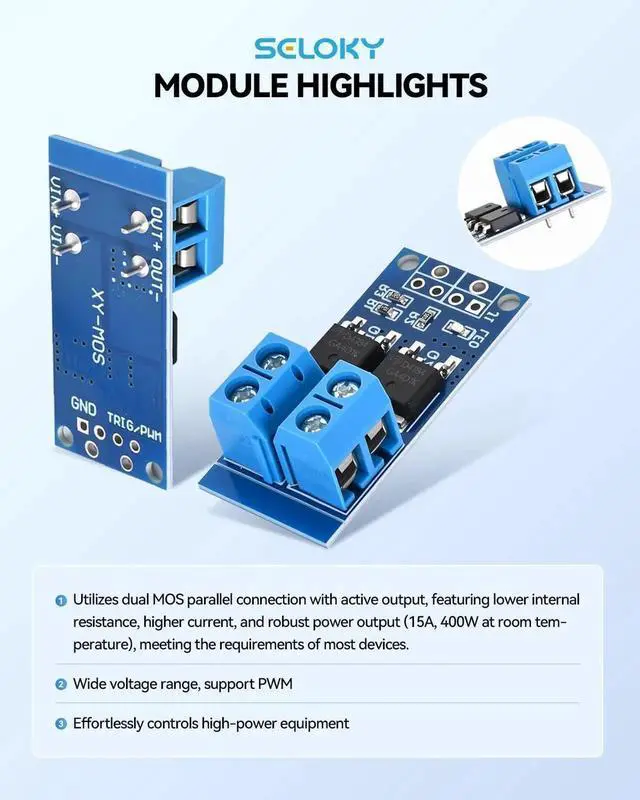

- DUAL MOS DRIVE: The MOSFET motor board Utilizes dual MOS parallel connection with active output, featuring lower internal resistance, higher current, and robust power output (15A, 400W at room temperature), meeting the requirements of most devices

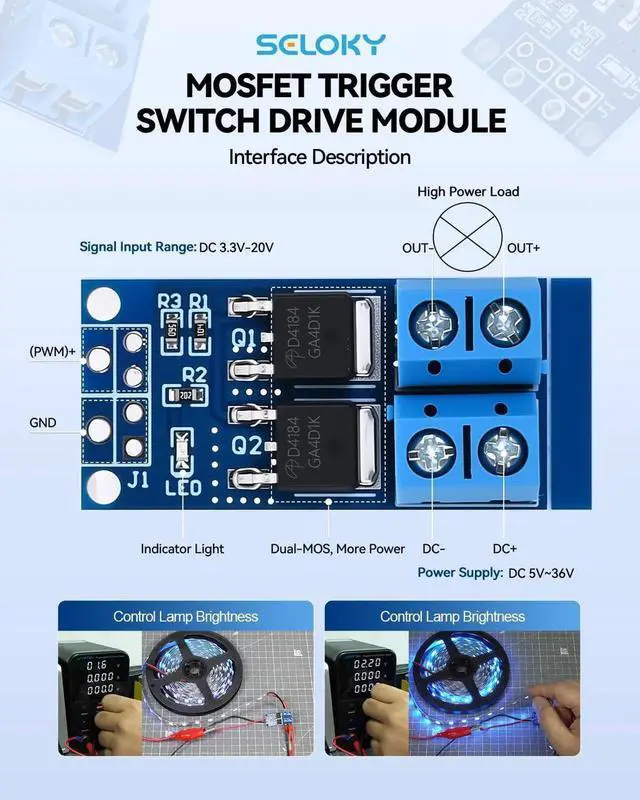

- WIDE VOLTAGE RANGE, PWM SUPPORT: With a working voltage range of DC 5V to 36V and compatibility with PWM signals, this PWM regulator control panel offers versatility in controlling devices. It accepts digital signals within the voltage range of DC 3.3V to 20V, making it suitable for use with micro controller IO ports, PLC interfaces, and other DC power sources
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

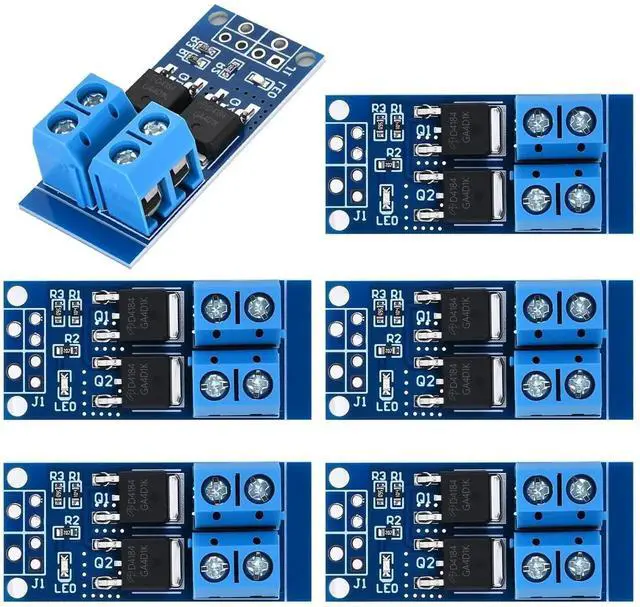

15A (Max 30A) 400W MOSFET Trigger Switch Drive Module 0-20KHz PWM Regulator Control Panel DC 5V-36V Electronic Switch Control Board DC Motor Speed Controller (Pack of 6)

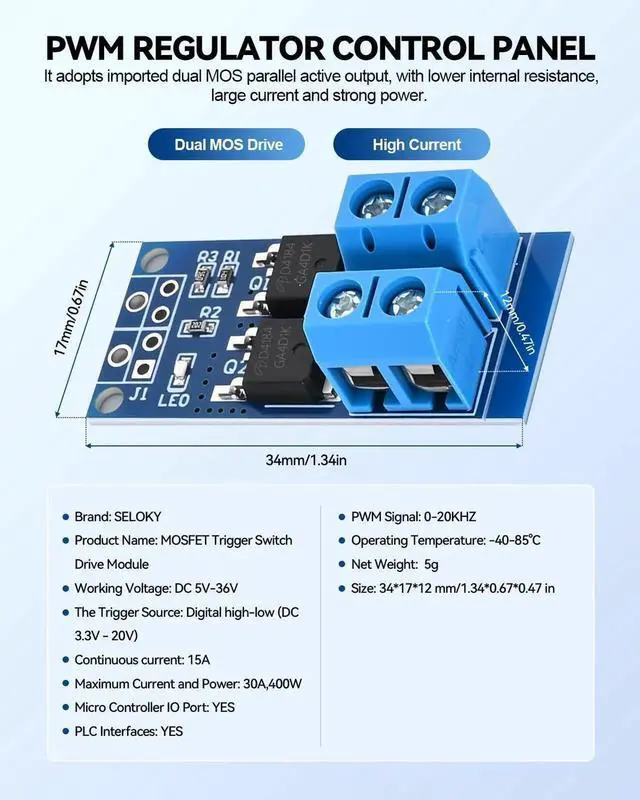

- COMPACT DESIGN, EASY INTEGRATION: Measuring just in 34x17x12mm (1.34x0.67x0.47inch), this high power PWM MOSFET driver module offers a compact form factor, facilitating effortless integration into various applications. Easily achieve control over high-power devices with this versatile and efficient module
- WIDELY APPLICATIONS: The MOSFET switch drive module is a versatile power control module that excels in a wide range of applications. Its design allows for precise control of high-power devices such as motors, LED lights, bulbs, micro-pumps, and solenoid valves. By accepting PWM signals, it can accurately regulate motor speeds, adjust lamp brightness, and more
