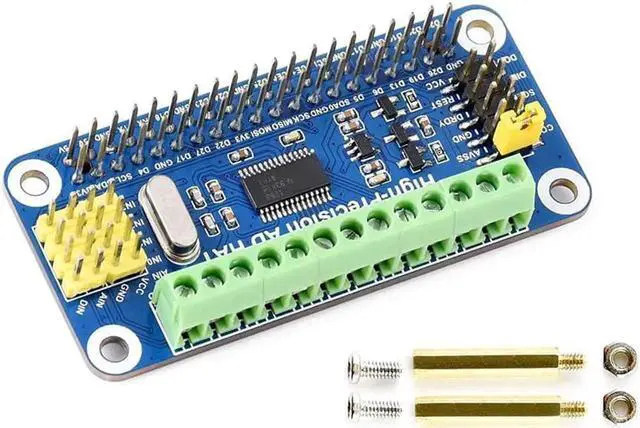

High-Precision Ad Hat For Raspberry Pi 4B/3B+/3B/2B/Zero/W/Zero Wh Jetson Nano Expansion Board With Ads1263 10-Channel 32-Bit High Precision Adc 24-Bit Auxiliary Adc

High-Precision Ad Hat For Raspberry Pi 4B/3B+/3B/2B/Zero/W/Zero Wh Jetson Nano Expansion Board With Ads1263 10-Channel 32-Bit High Precision Adc 24-Bit Auxiliary Adc

Item Condition: New

Model: High-Precision Ad Hat Board

Product Information

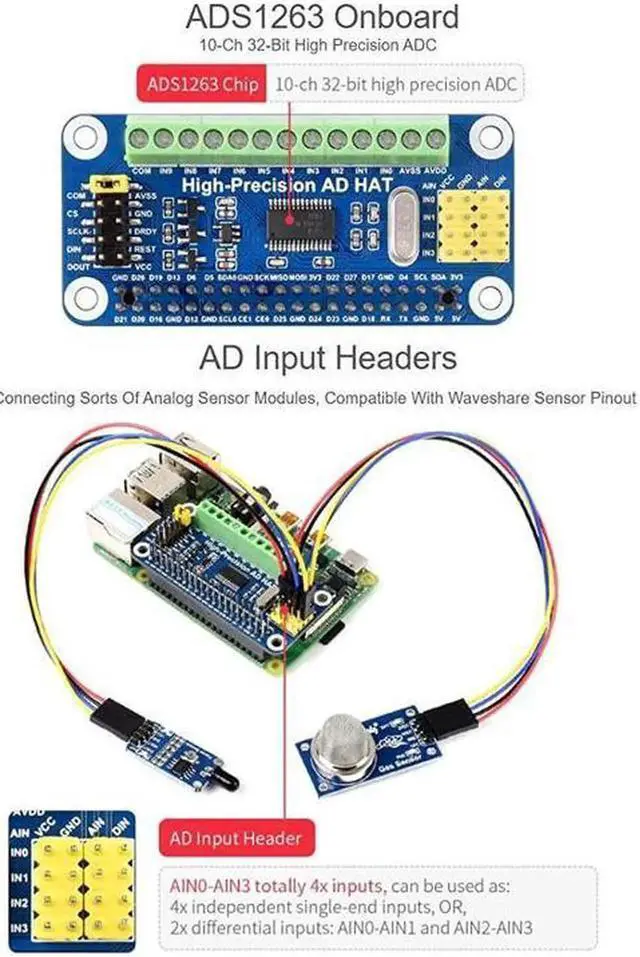

Adopts Ads1263 Chip, Low Noise, Low Temperature Drift, 10-Ch 32-Bit High Precision Adc (5-Ch Differential Input), 38.4K sps Max Sampling Rate With Embedded 24-Bit Auxiliary Adc, Internal Adc Test Signal, Idac, 2.5V Internal Reference Voltage, 8X Multiplexing Gpio, Pga (32 Times Max)

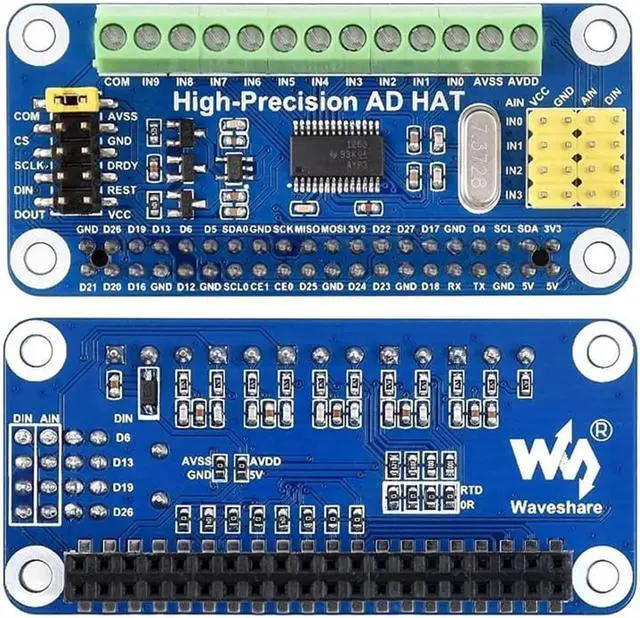

Onboard Ad Header Input, Compatible With Waveshare Sensor Pinout, For Connecting Sorts Of Sensor Modules

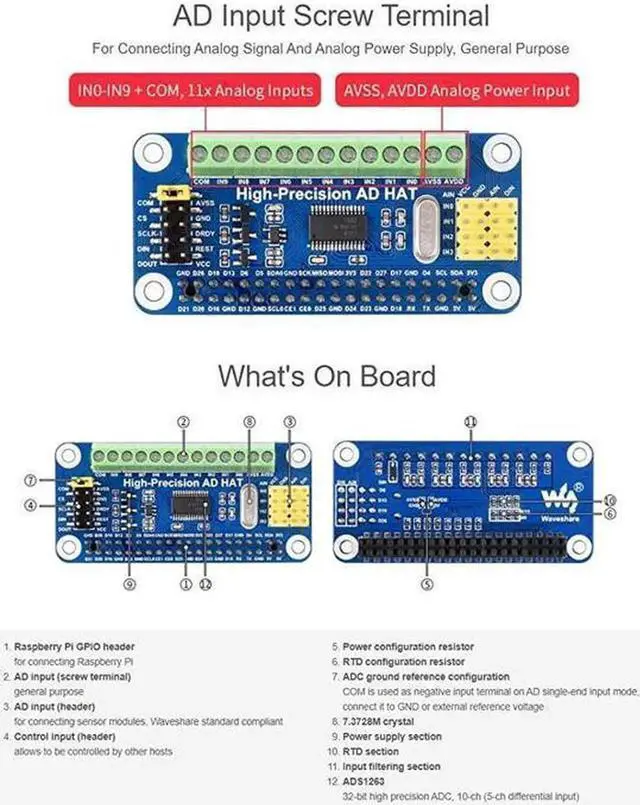

Onboard Ad Screw Terminal Input, Allows Connecting Og Signal And Og Power Supply, General Purpose Interface

Onboard Control Header, Make It Easy To Control The Module By Other Hosts In Additional To Raspberry Pi

Three-Wire Rtd (Resistor Temperature Detector) Circuit, Enabled By Soldering 0R Resistor

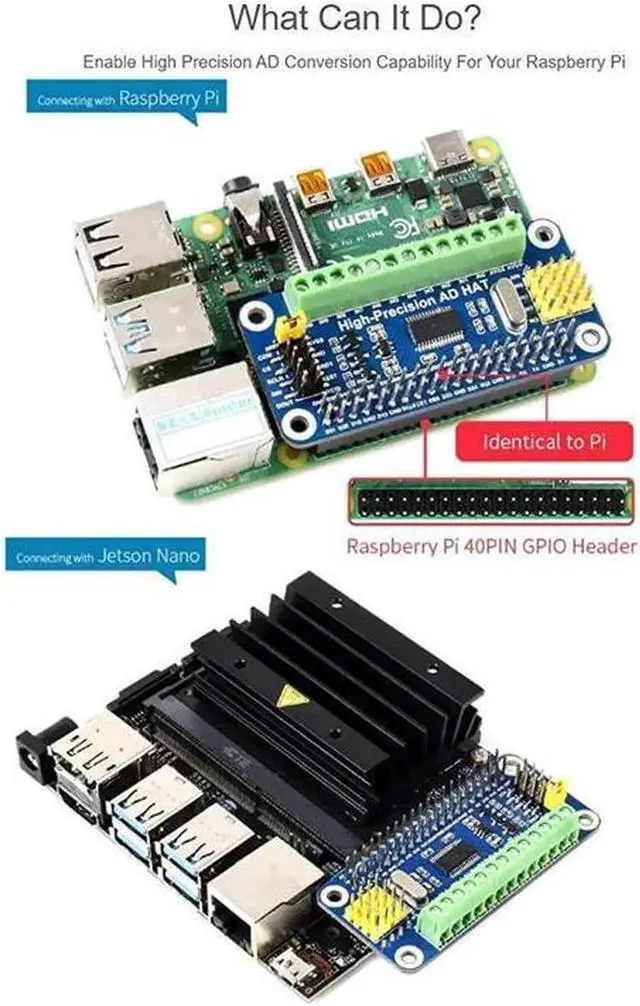

Overview High-Precision Ad Hat For Raspberry Pi, Ads1263 10-Ch 32-Bit Adc Function 1. High-Precision Ad Hat Compatible With Raspberry Pi Series And Jetson Nano, Enable High Precision Ad Conversion Capability For Your Raspberry Pi 2. Ads1263 Onboard 10-Ch 32-Bit High Precision Adc 3. Ad Input Headers For Connecting Sorts Of Og Sensor Modules, Compatible With Waveshare Sensor Pinout 4. Ad Input Screw Terminal For Connecting Og Signal And Og Power Supply, General Purpose

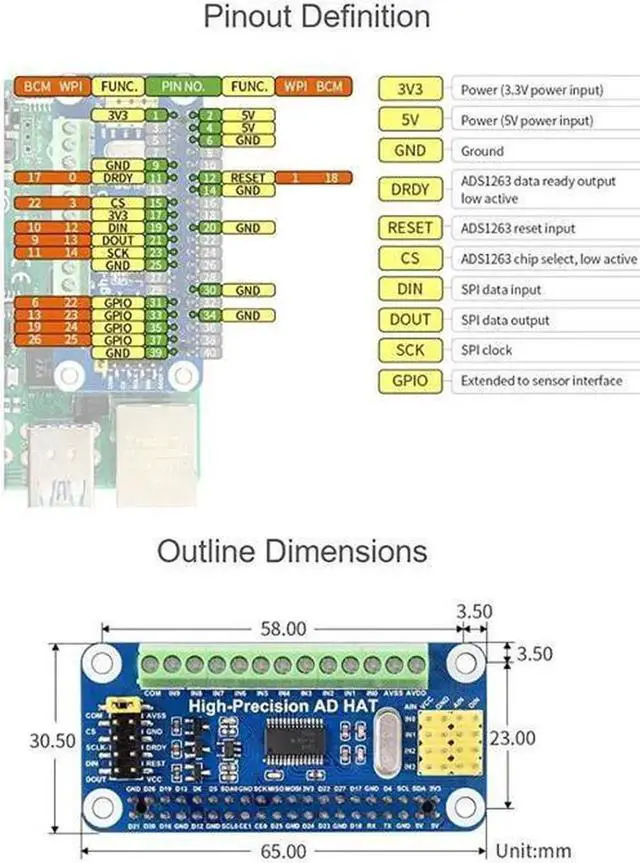

Specifications

Resolution: 32

Bits Sampling Rate (Max): 38.4

Ksps Bus: Spi

Input Type: Differential, Single-End

Input Voltage Range (Max): 2.5V, 5V

Input Channels: 10

Pga Magnification (Max): 32

Structure: Delta-Sigma

Reference Voltage: Internal, External

Input Voltage Range (Min): - 2.5V, 0V Package Content High-Precision Ad Hat X1 Rpi Screws Pack (2Pcs) X1 Note Aspberry Pi And Jetson Nano Are Not Included. Development Resources Are Provided, Please Contact With Us Via Buyer Message To
