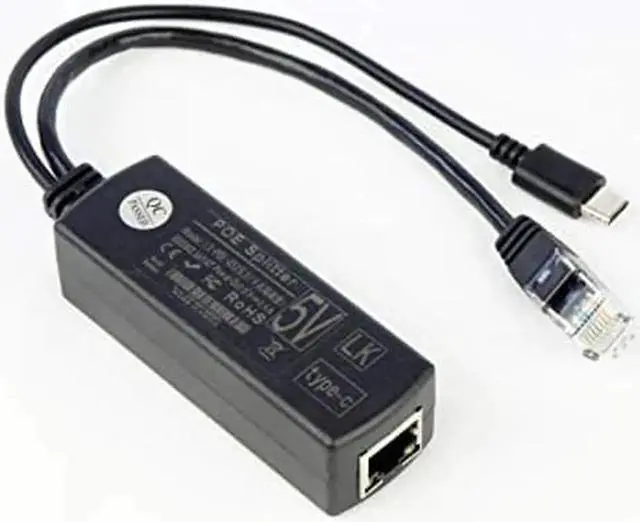

Gigabit USB Type C Active PoE Splitter 48V to 5V IEEE802.3af Power Over Ethernet for Raspberry Pi 4 4B

Note: The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.

RJ45 female INPUT Port: Support the IEEE 802.3 af/at the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet

PoE Adapter Specification: Compliant with IEEE 802.3 af/at

Isolation: 2.5 kV

Power Input: DC44~57V

Power Output: DC5V 2.4A

Data&Power INPUT Port: from RJ45 female (Compliant with IEEE 802.3 af/at PoE) Data

Output Port: RJ45 Male

Power Output Port: Micro USB Power Plug Data Transfer Rate: 10/100/1000

Mbps Data Pin: RJ45 pin 12345678 Devices will be detected before poe input

Power Pin: support both 1/2(+/-), 3/6(-/+) or 4/5(+), 7/8(-)

Body size: 80 x 27x 22 mm

DC cable length: 165mm

RJ45 Modular Plug cable length: 155mm

Weight: 55g

Operation Temperatue: -20 ~ 45

Storage Temperature: -30 ~ 70

Item Included: 10/100/1000Mbps Active PoE Splitter(USB type-C Power Plug) x1
