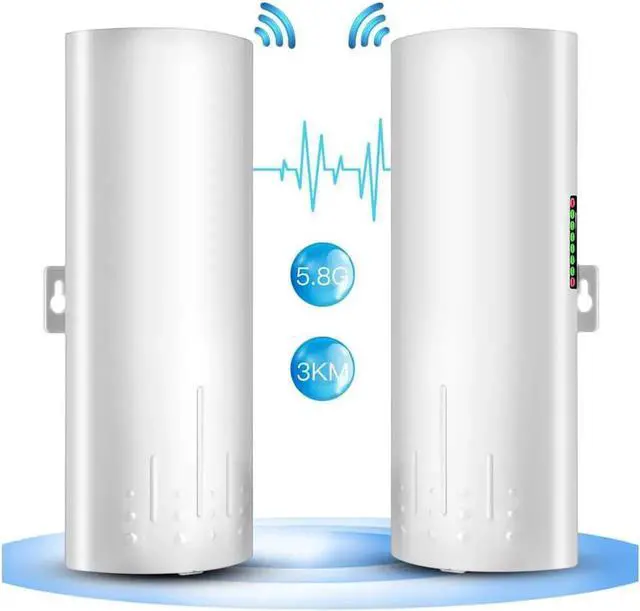

5.8G Long-Range Outdoor CPE Wireless Bridge 300Mbps Point to Point Transmission Distance WiFi Transmitter 14DBi High Gain 2*2 Mimo Antenna with PoE Adapter 2 RJ45 Port 2-Pack

CPE450 is a long-distance 5.8G wireless transmission equipment. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point-to-multipoint interconnection. The working data link layer realizes the interconnection and transmission of local area networks. The distance can be up to 3km.

Outdoor CPE Function:

1. Long-distance 5.8G wireless transmission equipment

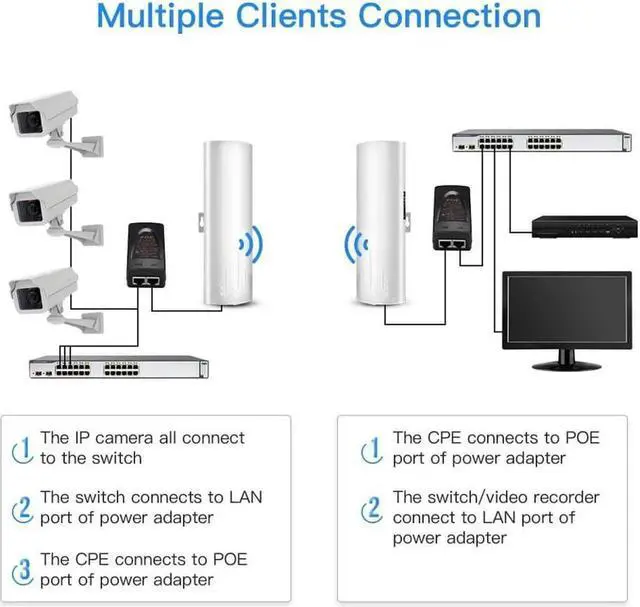

2. Support point-to-point, point-to-multipoint mode

3. Transmission distance up to 3km(Barrier-Free)

4. WDS networking mode, video network dual compatible.

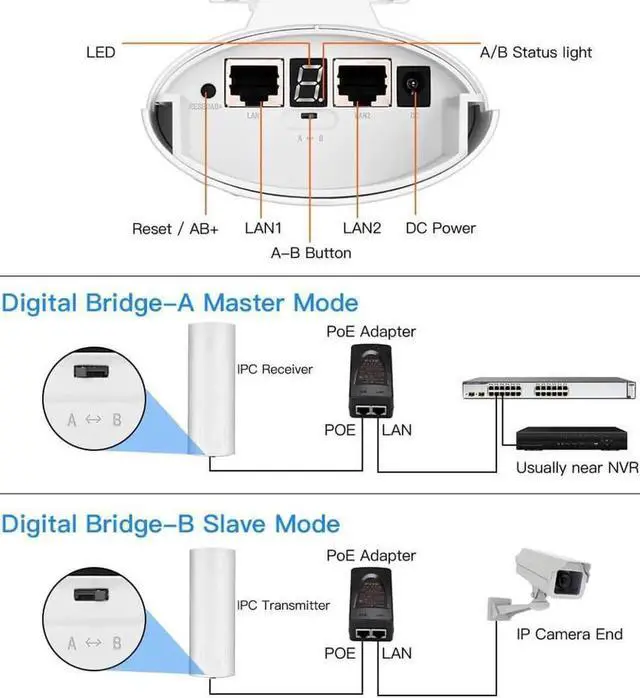

5. Dialing to set the transmitter and receiver, and also support the PC to modify the IP settings.

6. Dynamic MIMO power saving mode (DMPS) and automatic power-saving transmission (APSD)

Specification:

Master control: AR9344

DRAM: DDR2 64MByte

FLASH: 8MByte

Wired Interface: 10/100Mbps LAN*2

Transfer method: Direct Sequence Spread Spectrum (DSSS)

Modulation: OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK

Network Standard: IEEE 802.11 n, IEEE 802.11 a, IEEE 802.3 u

Supporting agreement: CSMA/CA, TCP/IP, IPX/SPX, Net

BEUI, DHCP, NDIS3, NDIS4, NDIS5

Frequency Range: 4900~6100MHz

Power consumption: le; 3W

Power scheme: POE 24V 1A

Antenna gain: 14DBi

Management settings: WEP management, Telnet, Serial

Encryption: WEP encryption 64/128bits, WPA, WPA2, 802.1 x

Operating temperature: -30? ~65?

Package Include:

2 * CPE450 Bridge

2 * POE Power Adapter (24V)

2 * Metal Hoop

1 * User Manual
