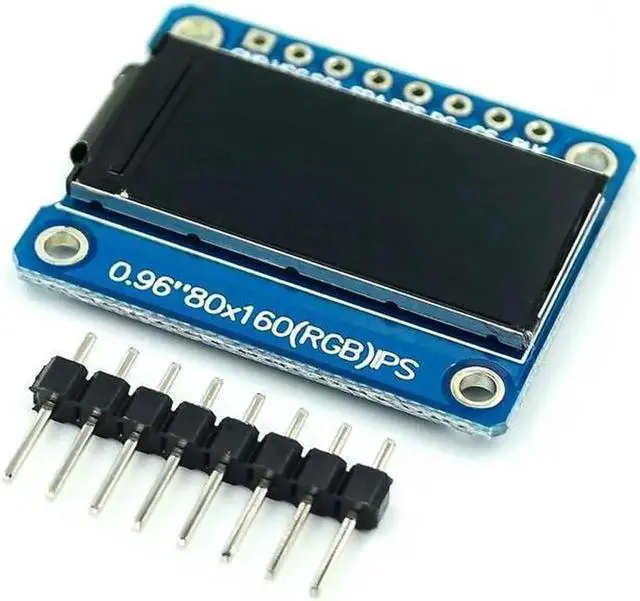

1pcs TFT Display 0.96 inch IPS 7P SPI HD 65K Full Color LCD Module ST7735 Drive IC 80*160 (Not OLED) Forarduino

1. Features

SIZE 0.96 inch

Display Mode Normally black IPS

Display Format Graphic 80RGB*160 Dot-matrix

Input Data SPI interface

Drive IC ST7735S

Dimensional outline 24 (W) *30 (H) * 2.8 +/- 0.1 (T) mm

Resolution 80RGB*160 Dots

LCD Active area 10.8 (W) * 21.7 (H)

Dot pitch 0.135 (H) x 0.1356 (V) mm

Viewing Direction All View

Operating Temperature -2070C

2.

Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 CS Chip Select

8 BLK Backlight control pin

1. Features

SIZE 1.3 inch

Display Mode Normally black IPS

Display Format Graphic 240RGB*240 Dot-matrix

Input Data SPI interface

Drive IC ST7789VW

Dimensional outline 27.78 (W) * 39.22 (H) * 3.0 +/- 0.1 (T) mm

Resolution 240RGB*240 Dots

LCD Active area 23.4 (W) * 23.4 (H)

Dot pitch 0.0975 (H) x 0.0975 (V) mm

Viewing Direction All View

Operating Temperature -2070C

2.

Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 BLK Backlight control pin
