3 in 1 NGFF and MSATA SSD Adapter Card M.2 NVME to PCIe 16X/M.2 SATA SSD to SATA III to SATA Converter+2 SATA Cable

Model Number:3 in 1 NGFF and mSATA SSD Adapter Card

Type:PCIE 4X To 16X Card

Origin:CN(Origin)

Model Number: 3 in 1 NGFF and mSATA SSD Adapter Card

Type: PCI-E 4X To 16X Card

SATA slot data transfer up to 6.0Gb/s

Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD

Supports 2230, 2242, 2260 & 2280 size NGFF SSD

Easy installation & no driver required

No additional power required,plug and play,easy installation

Supports any OS, like Windows, WinCE, Mac & Linux etc

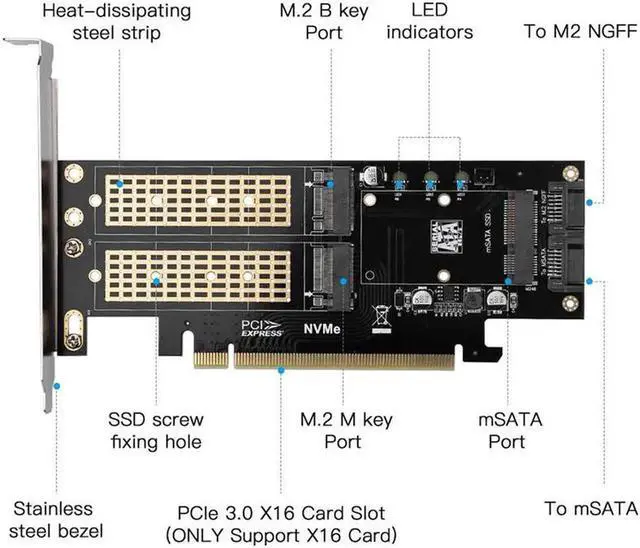

1.Connects one B key & one M key NGFF SSD at the same time to PCI-E 16X motherboard.

2.PCI 3.0 (Back Compatible with PCIe 2.0,PCIe1.0) Express M.2 specification 1.0.

3.SATA 3.0 specification for B key(SATA based).

4.PCI-E 3.0 specification for M key(PCIE or AHCI based).

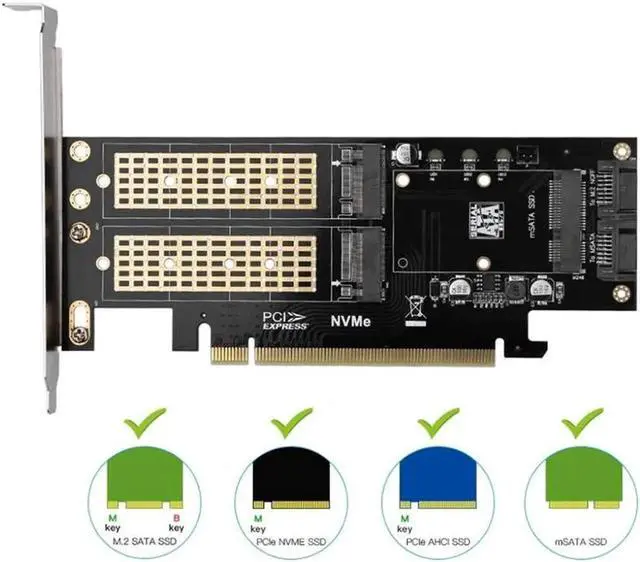

5.mSATA SSD card supported.

5.Compliant with 39Gbps PCI Express 3.0.

6.Four SSD card length Supported,2280 /2260 /2242/ 2230.

colour:black

Material:plastic

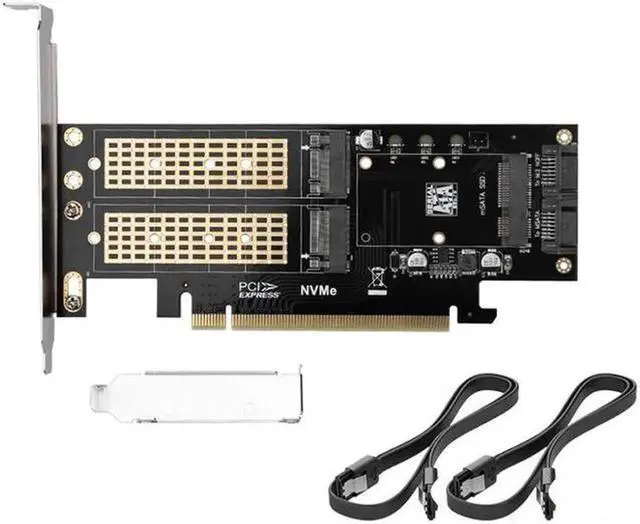

Package Contents:

1 x 3 in1 M.2 to PCI Express Adapter Card

1 x Small size bezel

2 x SATA Cable(Random Color)

Random colors cannot be selected

Please Kindly Note:

7-pin SATA cable must be connected to motherboard if you want to read the M.2 SATA SSD (Key B) for data transfer

M key SSD there must be a 2.0 or higher PCI-E 16X socket.

This adapter only support PCIe X16 slot. DO NOT support PCIe X1,X4, X8 slot.

Only the above package content, other products are not included.
