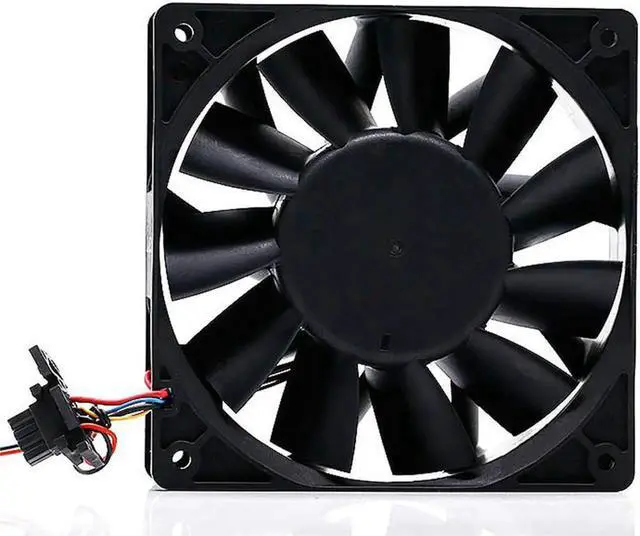

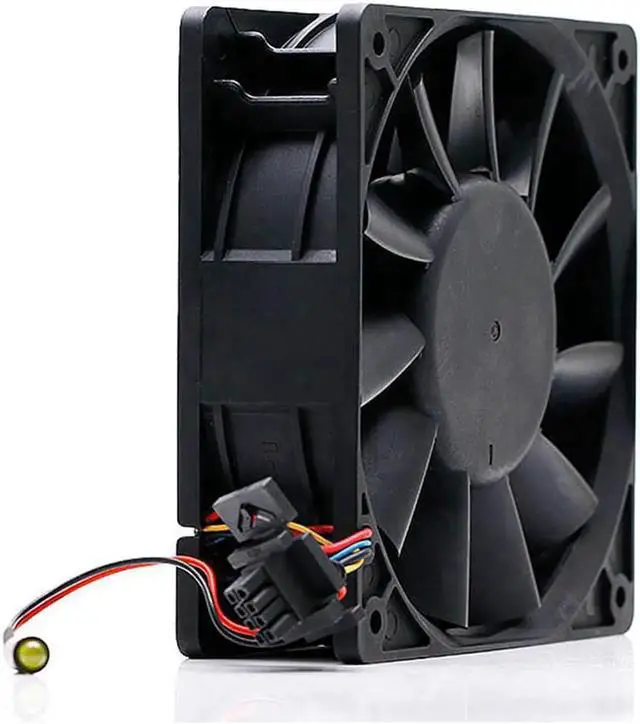

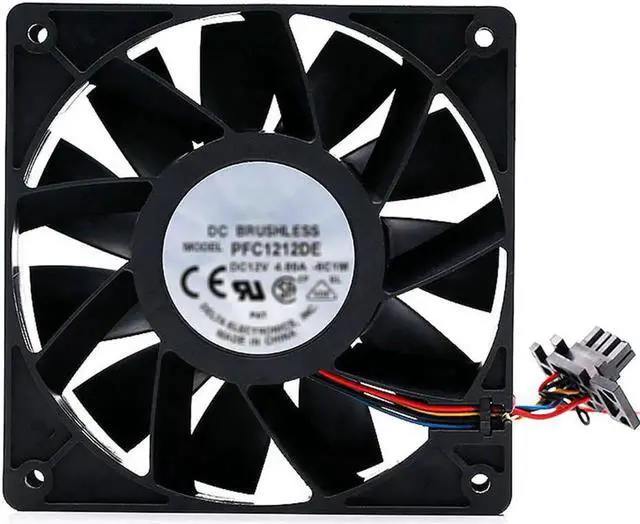

DC12V 4.8A Cooling Fan PFC1212DE High Speed PWM Brushless Fan Temperature Control Cooler Fan Repair Parts

With USB:/

is_customized:/

Model Number:EATAD836

Air volume:252.85CFM (7.16m3/min)

Bearings:high-precision ball bearings

Blade:injection molding, PBT+30% glass fiber +V0 grade flame retardant

Current:4.8A

Fan frame:Injection molding, PBT+30% glass fiber +V0 grade flame retardant

Fan rotation:counterclockwise from the fan blade side

Insulation resistance:more than 500Meg ohm

Interface:motherboard 4P

Item:Cooling Fan

Line length:35cm

Model:PFC1212DE

Noise:66.5 dB (A)

Operating temperature:-10 degrees to +70 degrees Celsius

Power:57.6W

Power range:plus or minus of the rated power 15%

Revolution:12V under 5500RPM

Speed measurement:support

Speed regulation:support motherboard PWM speed regulation

Storage Temperature:-40 degrees to +70 Degrees Celsius

Voltage:DC12V

Wind pressure:1.412 in H2O (351.7 Pa)

Withstanding voltage:Meeting the leakage current 0.5mA 500V/1min

Working life:80000 hours at the ambient temperature 25 degrees

DC12V 4.8A Cooling Fan PFC1212DE High Speed PWM Brushless Fan Temperature Control Cooler Fan Repair Parts

Description:

l

for long time use

l

Replace the old, broken or non-working cooling fan

l

High speed PWM fan to cool the temperature faster and more stable

l

Help to improve the cooling performance and extend the service life of the device

Specification:

l

Model: PFC1212DE

l

Voltage: DC12V

l

Current: 4.8A

l

Size: 120×120×38MM

l

Air volume: 252.85CFM (7.16m3/min)

l

Wind pressure: 1.412 in H2O (351.7 Pa)

l

Noise: 66.5 dB (A)

l

Power: 57.6W

l

Revolution: 12V under 5500RPM

l

Speed regulation: support motherboard PWM speed regulation

l

Speed measurement: support

l

Interface: motherboard 4P

l

Line length: 35cm

l

Bearings: high-precision ball bearings

l

Fan frame: Injection molding, PBT+30% glass fiber +V0 grade flame retardant

l

Blade: injection molding, PBT+30% glass fiber +V0 grade flame retardant

l

Fan rotation: counterclockwise from the fan blade side

l

Operating temperature:-10 degrees to +70 degrees Celsius

l

Storage Temperature:-40 degrees to +70 Degrees Celsius

l

Power range: plus or minus of the rated power 15%

l

Insulation resistance: more than 500Meg ohm

l

Withstanding voltage: Meeting the leakage current 0.5mA 500V/1min

l

Working life: 80000 hours at the ambient temperature 25 degrees

Package:

l

1x

Cooling Fan

Note:

l

This item is disassembled; please make sure you dont mind it before making an order.
