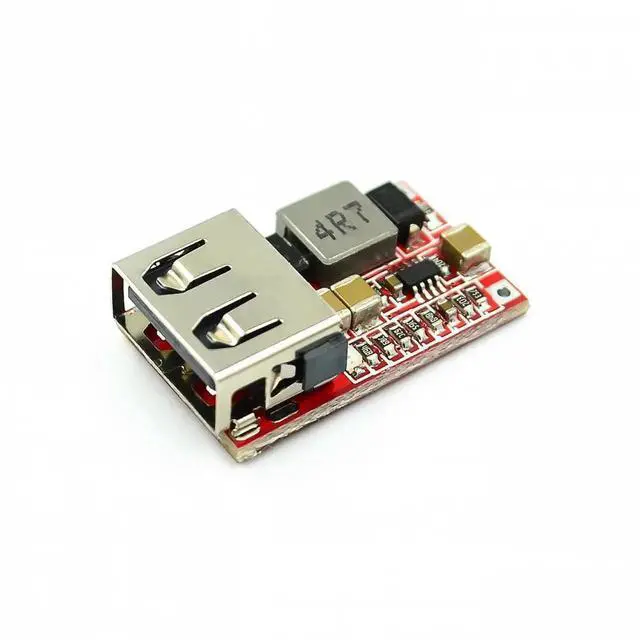

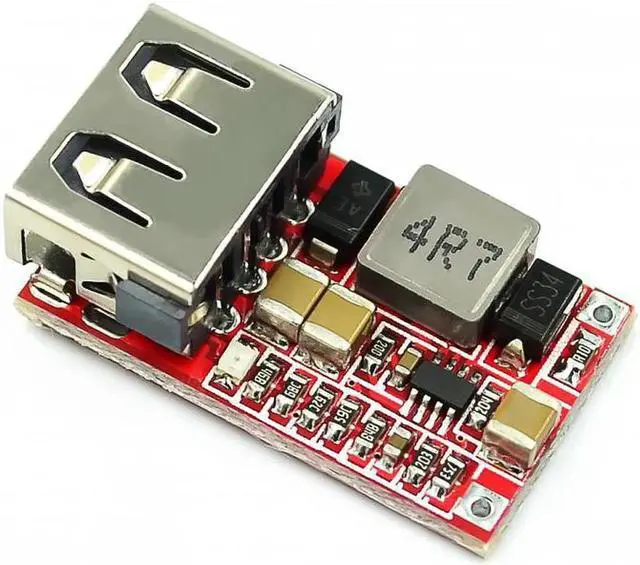

DC 6-20V 12V/24v to 5V USB Output charger step down Power Module Mini DC-DC Step Up Boost Module Power Adjustable buck Converter

Origin:CN(Origin)

Condition:

Type:Voltage Regulator

Application:Computer

Supply Voltage:1

Dissipation Power:1

is_customized:Yes

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

Press Release:

1: The United States imported chips, definitely not homemade chips, disassemble chip.

2: The maximum output current of 3A, the long-running 2.1A, sufficient margin.

3: The design, circuit design does not require electrolytic capacitors and tantalum capacitors (electrolytic capacitor life is short, there is a risk of explosion tantalum capacitors). Now with the use of high-end large-size solid ceramic capacitor circuit (MCC) 3

Very low ripple, 12V switch 5V 3A only about 10 mV ripple many peers have reached 500 mV or greater, the device will cause an invisible injury, severe can cause fault or damage.

4: The program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to 97.5%, 12V turn 5V 1A when it reached 94%, unlike some peers only 60-70% efficiency . (Efficiency test removed the input reverse polarity protection diode and fuse drop).

5: Using flat copper inductors, maximize conversion efficiency. Reduce heat.

6: The whole network first with output overvoltage protection, input fuse has 1.5A, 5V output of 300W TVS has done a pressure pipe clamp protection, protect USB devices.

7: Using the latest USB identification circuit.

8: Short head gilded boundless USB, long service life, not ordinary USB interface can be compared.

9: Output voltage indicator (red)

10: Ultra-small size, 26.4 (L) * 15 (W) * 7.4 (H) mm, the smallest of the whole network.

11: inputs with reverse polarity protection diode, the positive and negative input will not reverse damage (We tested the efficiency of ignoring the input diode and fuse drop)

12: ultra-low quiescent current, 0.85 mA quiescent current. Connected to the car without adding switches can be connected in a cigarette lighter line, or ACC power line cord.
