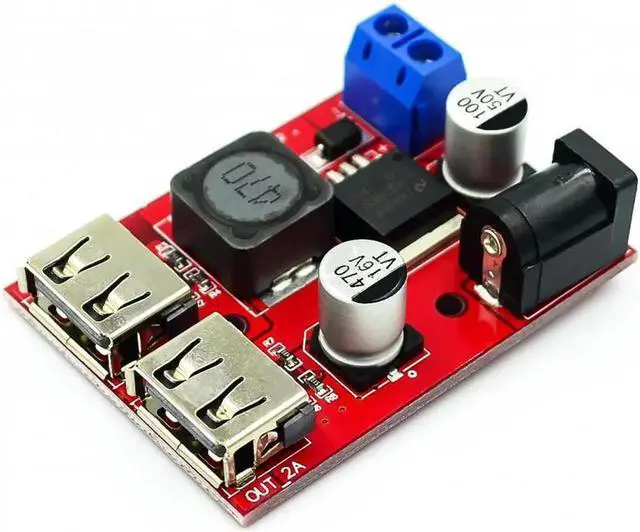

LM2596 LM2596S Dual USB DC-DC 9V 12V 24V 36V to 5V 3A Step Down Buck Converter Board Car Charger Solar Power Supply Module

Origin:CN(Origin)

Condition:

Type:Voltage Regulator

Application:Computer

Supply Voltage:1

Dissipation Power:1

is_customized:Yes

Description:

Name: Double USB output module 3A Step-Down

Input: 6V-40V (DC5.5/2.1 port, connecting terminal)

Output: 5V / 3A (MAX)(With Identification resistance for Apple)

Efficiency: 92% (MAX)

Switching frequency: 150KHZ

Working temperature: -40 ° - + 85 °

Load capacity: Maximum output 3A (Connect with two phones simultaneously)

Scope: mobile power, mobile phones, flat-panel powered devices USB5V

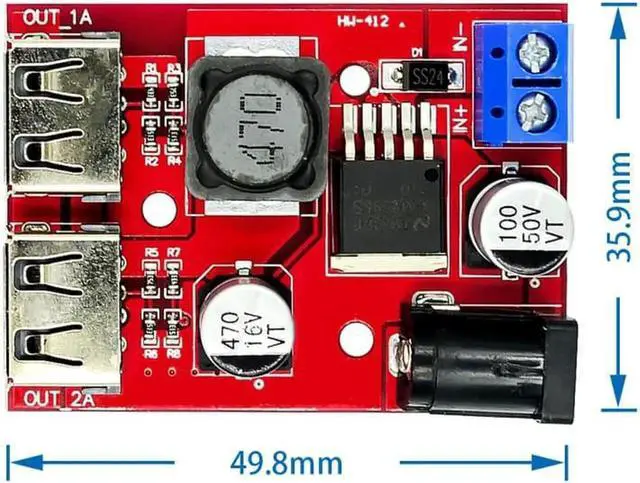

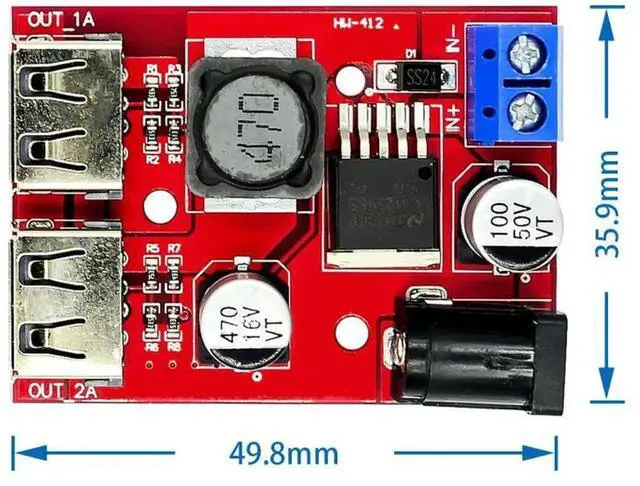

Product Size: approx. 50*35*12mm/1.96*1.37*0.47''

Net weight: approx. 17g

Note:

Please allow 1-3mm differs due to manual measurement.

Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
