Desktop USB Expansion Card PCI-E 3.0 Cable 19Pin Chassis Front Panel HUB Computer Optical Drive

Type:CD-ROM

Interface Type:USB

Origin:CN(Origin)

Application:External

Disc Loading Mode:Sucker Type

Package:Yes

Drive Type:DVD-RW

Provides 10 times the transfer speed of USB2.0, and the full-speed transfer rate can reach 5Gbps. In order to enable a single USB3.0 interface to exclusively enjoy the PCI-Express bandwidth and fully the USB3.0 transfer rate.

The USB3.0 interface connects to USB3.0 devices. Provides more power when needed and automatically reduces power consumption when not needed.

USB 3.0 can provide more power to support devices that require more power to drive, and devices that use USB to charge can complete charging faster.

USB 3.0 supports states such as standby, hibernate and suspend. Backward compatible with version 2.0, USB3.0 uses a 9-pin design, four of which are in the shape of USB2.0.

The definitions are all the same, and the other five are specially prepared for USB3.0. USB2.0 devices work well with USB3.0 ports.

Compliant with revision 1.0 of the USB 3.0 specification

Compliant with XHCI Revision 0.95 specification

Backward compatible with USB2.0/1.1 specification

The data transfer rate of the USB3.0 interface can reach 5Gbps,

The data transfer rate of the USB2.0 interface can reach 480Mbps

The USB3.0 interface can provide 900mA of current to power external devices

Support low speed (1.5Mbps) / full speed (12Mbps) / high speed transmission (480Mbps) / super high speed (5Gbps)

Supports all USB-compliant data transfer types as follows; control/bulk/interrupt/isochronous transfer

Revision 0.95 of the Intel Compatible Extensible Host Controller Interface (XHCI) Specification

Working temperature: 0 ~ 5 7 , working humidity: 5 % ~ 9 5 % relative humidity

Operating voltage: +3.3V~+5.0V, storage temperature: -20~85

Chip model of USB3.0 expansion card: VIA VL805(806)

Colour: black

Material: PCB + metal

Size: 14x12x3CM

Package Contents:

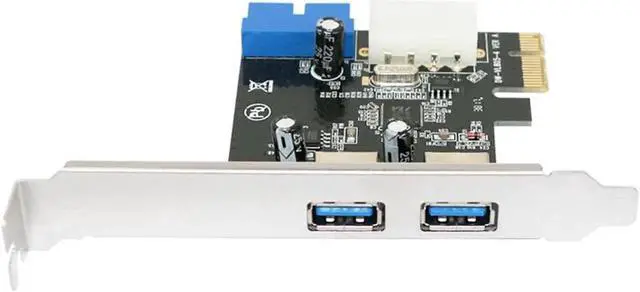

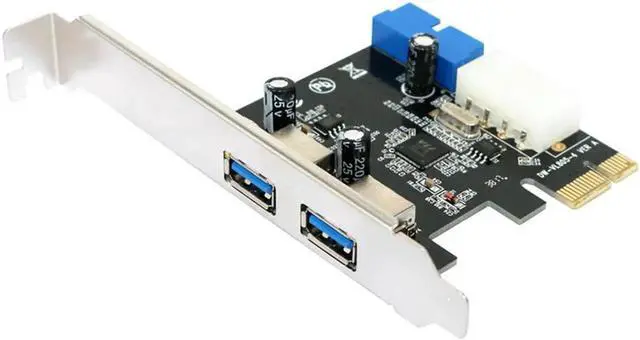

1 * PCI-E to USB 3.0 Expansion Card

1 * CD Driver

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
