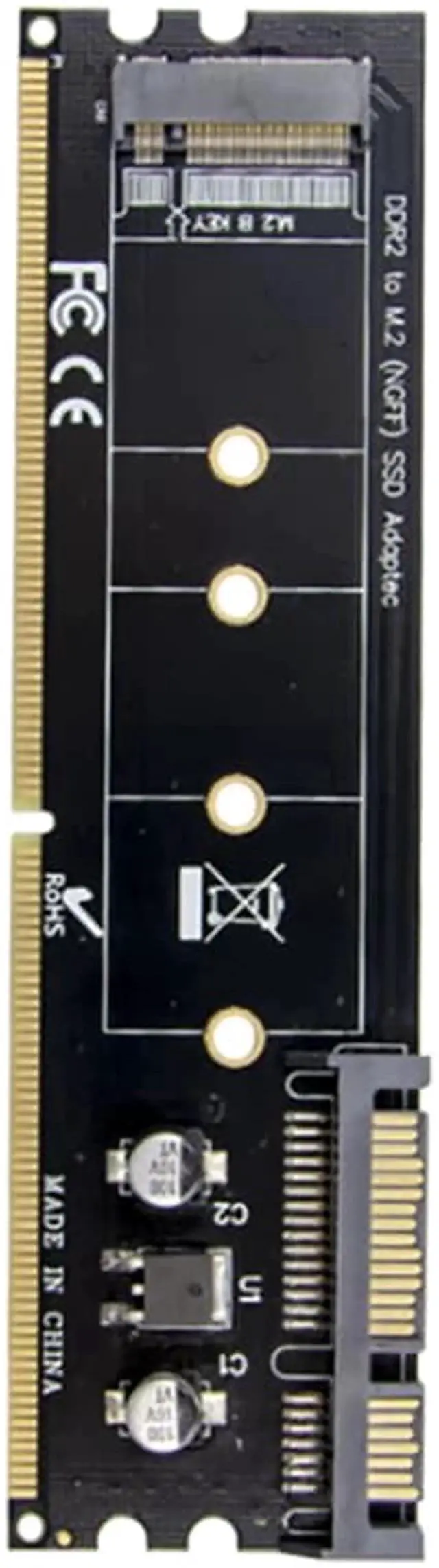

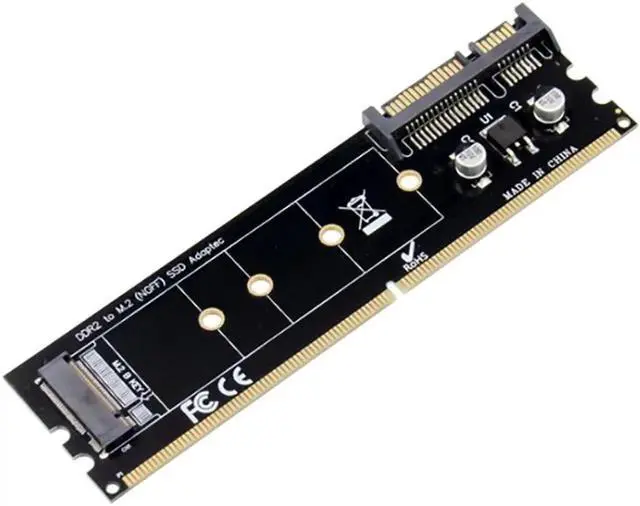

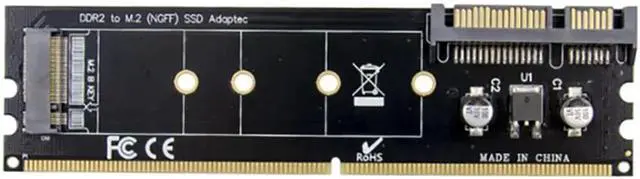

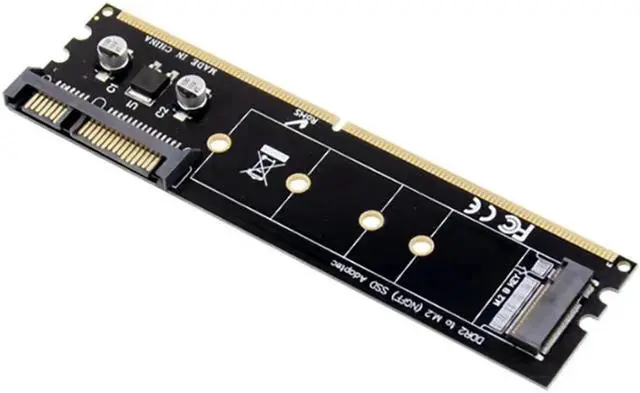

DDR2 Memory Slot M.2 SSD to SATA Expansion Board DDR2 to M.2 NGFF SSD Adapter for PC Laptop

Certification:NONE

Origin:CN(Origin)

Package:Yes

Model Number:

Type:Add On Cards

Interface Type:PCI Express

Product Type:DDR2 to M.2 SSD

M.2 type:SATA protocol M.2 2230, 2242, 2260, 2280

Transmission medium:1 x M.2 B Key SSD connector

Operating system:suitable for Windows MAC Linux

DDR2 Memory Slot M.2 SSD to SATA Expansion Board DDR2 to M.2 NGFF SSD Adapter for PC Laptop

Adopt DDR interface design, simple and firm installation.

External power supply, more power, excellent and stable performance.

The power supply uses 2 imported large solid capacitors to make the power supply more stable.

The copper studs that secure the SSD are removable for easy connection to various SSDs.

The gold-plated interface has better wear resistance and higher conductivity.

Support DDR2 desktop motherboard

M.2 SSD to SATA3 adapter riser card

DDR2 memory slot M.2 SSD to SATA expansion board

SATA 15-Pin power supply + SATA 7-Pin data port connected to the motherboard

Support 2230, 2242, 2260, 2280 size M.2 NGFF SSD

Only supports M.2 SATA protocol key B SSD, does not support M Key SSD based on M.2 slot 3 PCIe

Allow users to convert M.2 B key SATA bus SSD to SATA3 through DDR2 memory slot

No driver required, supports all systems

Product Type: DDR2 to M.2 SSD

M.2 type: SATA protocol M.2 2230, 2242, 2260, 2280

Transmission medium: 1 x M.2 B Key SSD connector

1 x SATA 15-Pin power supply + SATA 7-Pin data port

Operating system: suitable for Windows / MAC / Linux

No need to install drivers, plug and play

colour:black

Material:PCB

size:133x67x3mm

Package Contents:

1 * DDR2 to M.2 SSD adapter riser card

1 * Screwdriver (screw+driver)

1 * SATA cable

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
