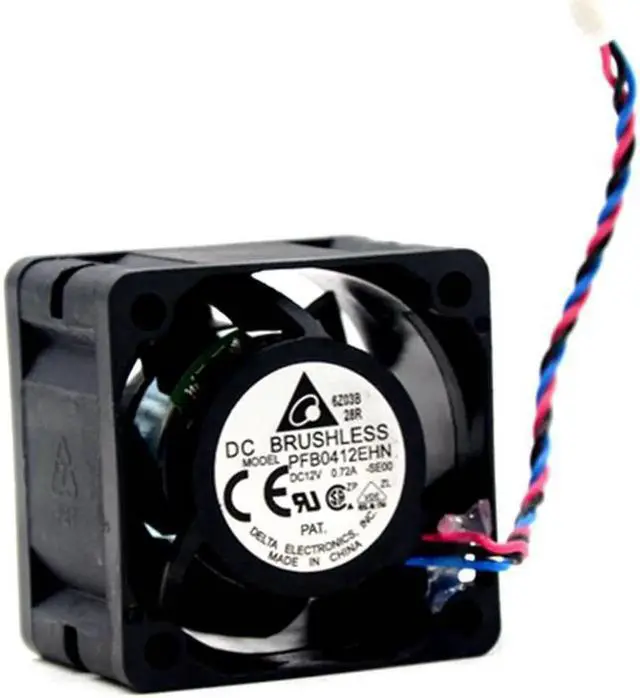

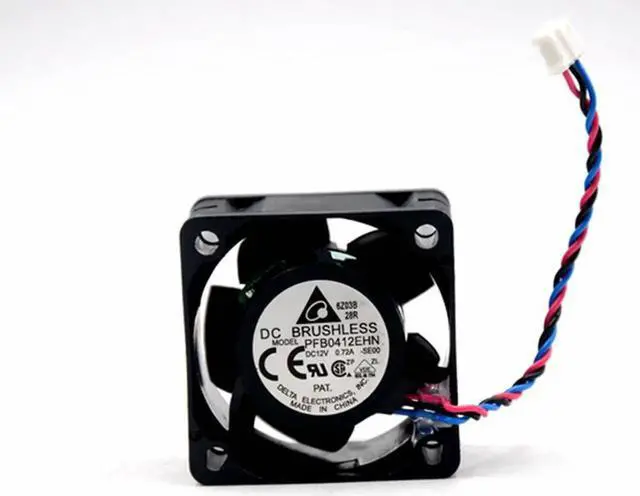

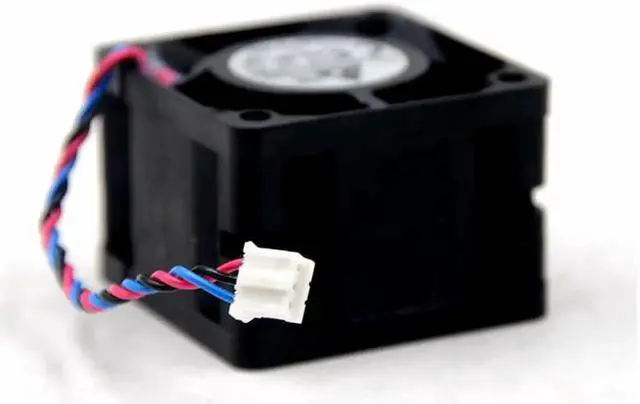

1pcs for Delta PFB0412EHN -SE00 4028 40*40*28mm DC12V 0.72A powerful axial cooling fan 40 mm

Certification:CE

Origin:CN(Origin)

Application:Computer Case

Bearing:Two Ball Bearing

Fan Life:50000 hrs

Lines:3 Lines

Type:Fan

Power Interface:3pin

Heatsink Material:Plastic

1U server fan pfb0412ehn

[fan model]: pfb0412ehn

[appearance size]: 40 × 40 × 28mm

[rated voltage]: DC12V

[voltage range]: dc7.0v-13.6v

[input power]: 0.72 a

[rated speed]: 16000 r.p.m

[temperature range]: - 10.. 70 ° C

[life expectancy]: L10 life expectancy 50000 hours at 25 ° C

[bearing structure]: maintenance double ball bearing

[rotation direction]: the wind is discharged from the bracket and rotates counterclockwise facing the rotor

[wiring mode]: + Red Black signal: Blue (blue is speed measuring line yellow: PWM speed regulation)

[maximum air volume]: 22cfm

[motor protection]: overload protection, fault level protection and locked rotor current protection

[noise index]: 54.5 dB (a)

[material]: fiberglass reinforced plastic, PBT shell, PA blade

[function description]: electronic exchange outward rotor DC fan, complete electronic reversing component
