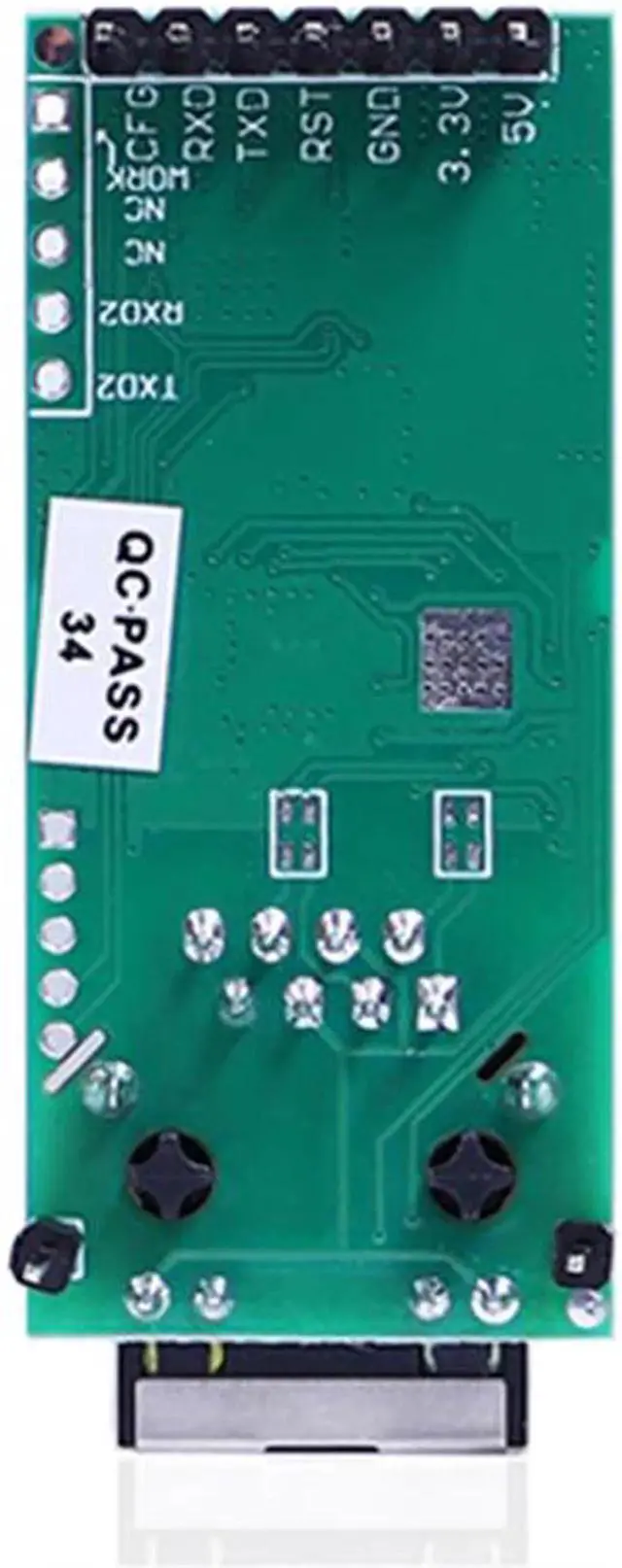

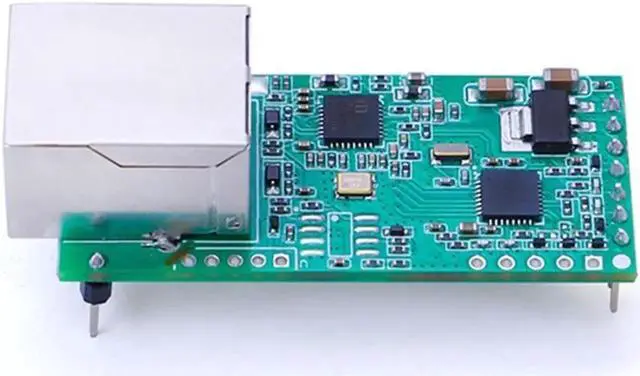

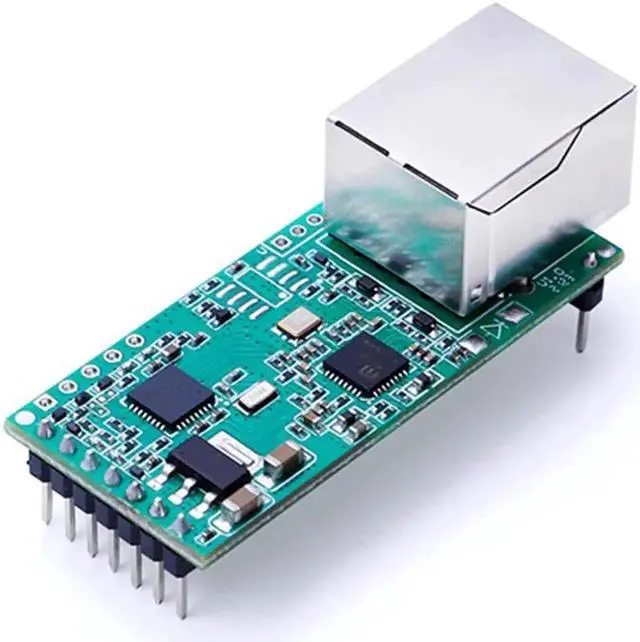

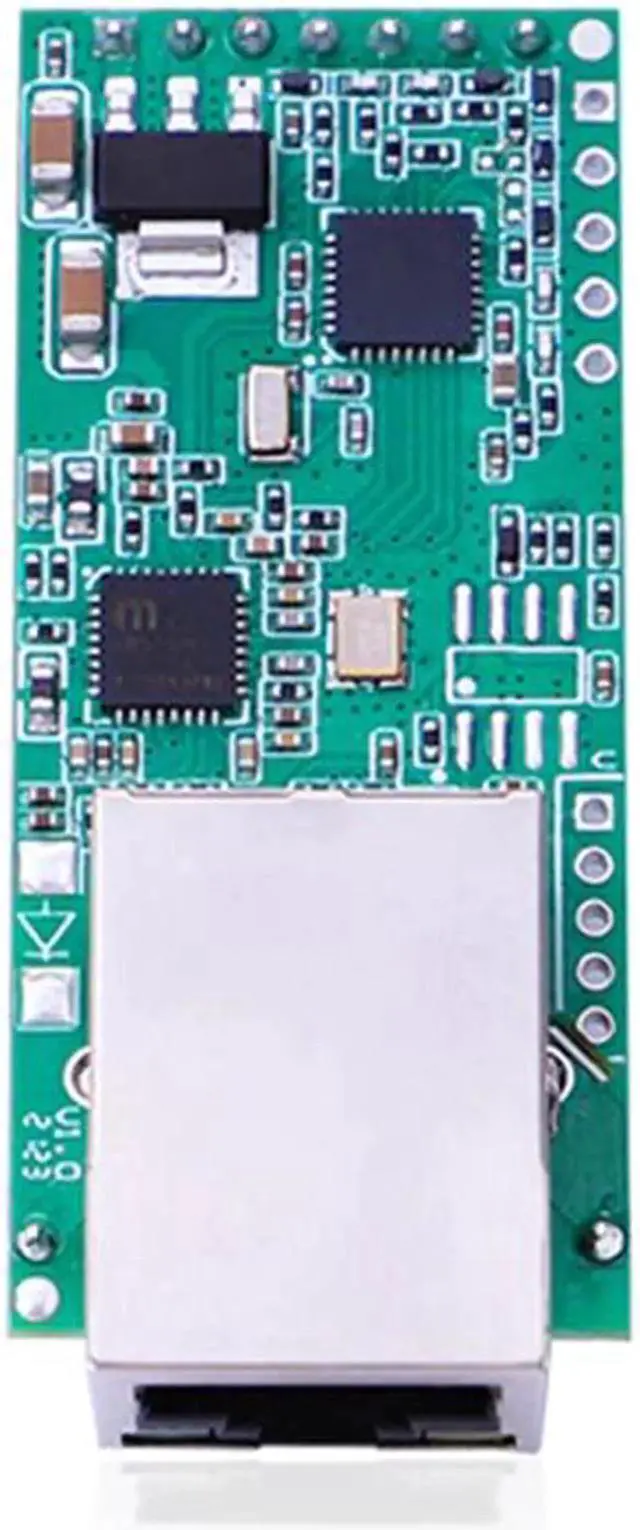

Low Cost Solution Serial TTL to Ethernet Module USR-TCP232-T2 Web page configuration / DHCP & DNS

Certification:NONE

Origin:CN(Origin)

Model Number:USR-RS232-T2

Introduction of Serial UART Ethernet Module

USR-TCP232-T2 Serial TTL to Ethernet Module which can realize data bidirectional transparent transmission between serial TTL and RJ45 Port. USR-TCP232-T2 is based on Cortex-M0 core- low cost solution. It has characters of low power, fast speed and high efficiency.

Serial UART Ethernet Module M0 Series

Edit

Feature of Serial UART Ethernet Module

DHCP &DNS, automatically obtain an IP address and query IP address through serial setting protocol

Set parameters through webpage and serial AT command

Upgrade firmware via network

Auto-MDI/MDIX, RJ45 port with 10/100Mbps

Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space

Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client

Support virtual serial port and provide corresponding software USR-VCOM

Heartbeat package mechanism to ensure connection is reliable, put an end to dead link

User-defined registration package mechanism, check connection status and use as custom packet header

Under TCP Server mode, Client number ranges from 1 to 16; default number is 4

The global unique MAC address bought from IEEE, user can define MAC address

Restore factory default

Across the gateway, switches, routers

Can work in LAN, also can work in the Internet (external network)

Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS

Support customization

Application Field of Serial UART Ethernet Module

Industrial data transmission, industrial automation

security and protection monitoring, public security

Smart home, power control, environmental monitoring, intelligent agriculture

Door check on work attendance system,

POS system, rice selling system

Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
