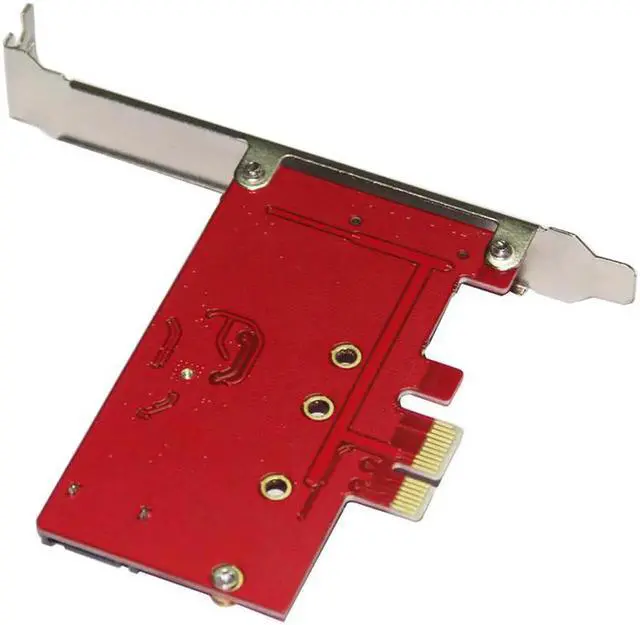

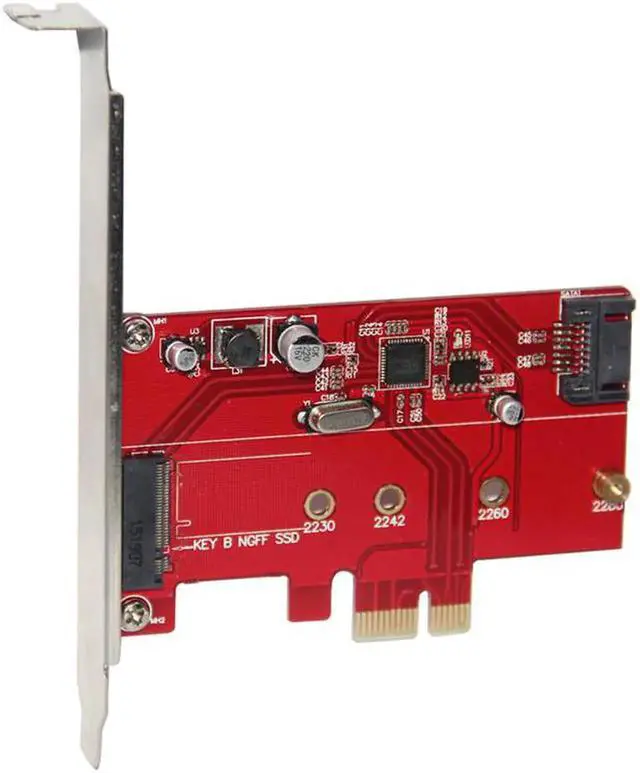

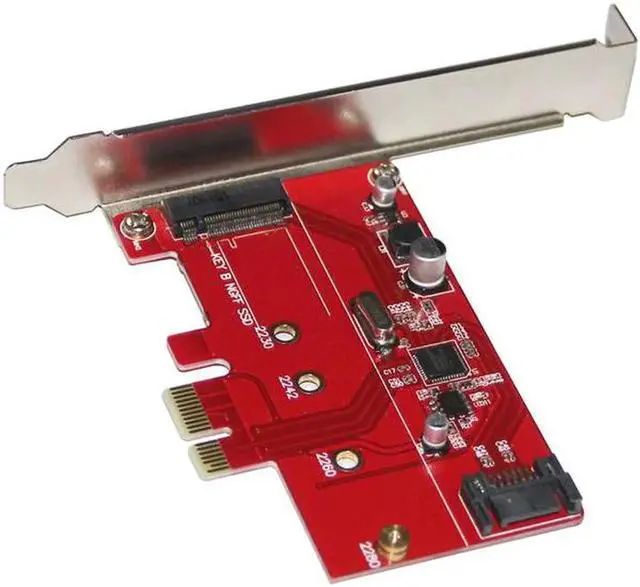

PCIE Riser Card PCI-E 2.0 to SATA3.0+M.2 SSD Adapter ASM1061 6Gbps Support NGFF(M.2) B Key Type

Origin:CN(Origin)

Type:Other

Model Number:Conversion Card Expansion Card Chip Extender Adapter

Name:PCIE 2.0 to SATA3.0M.2 SSD Adapter

Chip:ASM1061

Interface:M.2 (NGFF) x 1, SATA3.0 x 1

Applicable card slots:PCIEX1, PCIEX4, PCIEX8, PCLEX16

Features:

Mixing small-capacity high-performance M.2 SATA solid state drives and low-cost, high-capacity mechanical hard drives to improve the overall performance of the system

The maximum transmission rate is 6Gbps

Support port multiplication

Support hot swap

Can support long and short iron sheets

Compatible with SATAI, SATAII, SATA III hard drives

Support NCQ

SATA III maximum transfer rate of 6.0Gbps

Revision of M.2 specification 0.9

Serial ATA Specification 3.2

Support NGFF (M.2) card size: 22 x 30, 22 x 42, 22 x 60, 22 x 80

Support NGFF(M.2) B key type

Note: Support M.2 (NGFF) SATA solid state drive

The efficiency mainly depends on the size of the M.2 (NGFF) solid-state drive main control IC and capacity

Interface: M.2 (NGFF) x 1, SATA3.0 x 1

Applicable card slots: PCI-EX1, PCI-EX4, PCI-EX8, PCL-EX16

color: red

Material: PCB

Package Contents:1 x Adapter

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
