Chenyang NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575 2280
- Chenyang NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575 2280
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Use:Mobile Storage
Origin:CN(Origin)
USB Type:Other
Model Number:SA-035
Certification:CE
Package:Yes

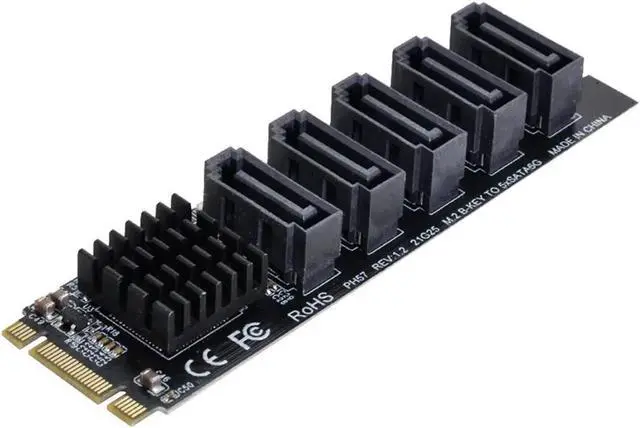

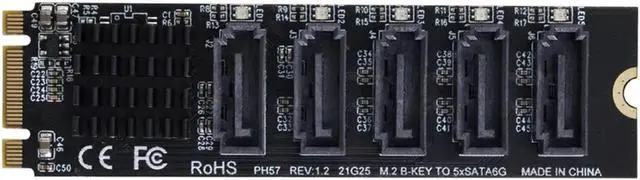

NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575
JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.

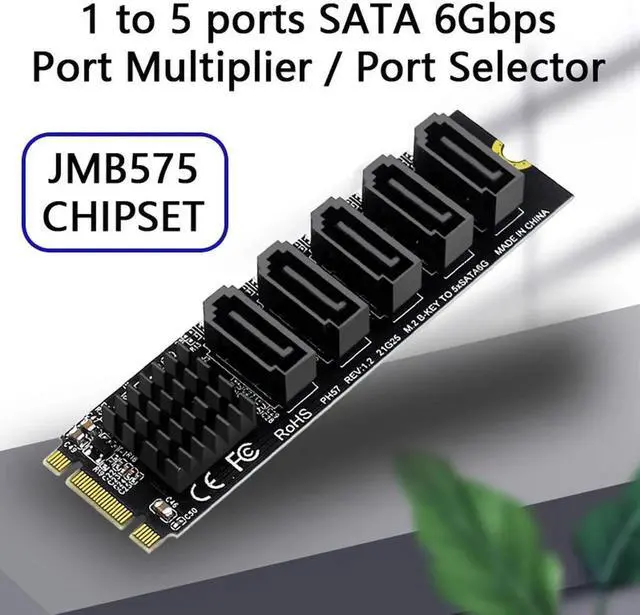

With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port Multiplier or a 5 to 1 port SATA 6Gbps Port Selector.
JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
Key Features
·
Comply with Serial ATA Port Multiplier Spec. Revision 1.2
·
Comply with Serial ATA Port Selector Spec. Revision 1.0
·
Support 6 port SATA 6Gbps interface
·
Supports BIST and loopback mode
·
Support command-based and FIS-based switching
·
Support PM aware and non-PM aware host
Main control chip: JMB575
Interface: 5 * SATA3.0 interface
Applicable slot: NGFF Key B+M
