$56.99
Ships from China.
Meet Your Seller

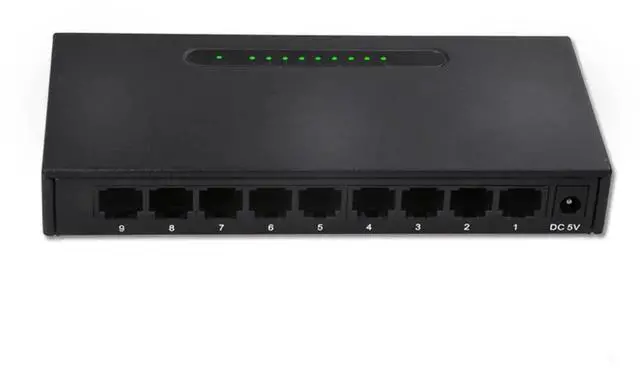

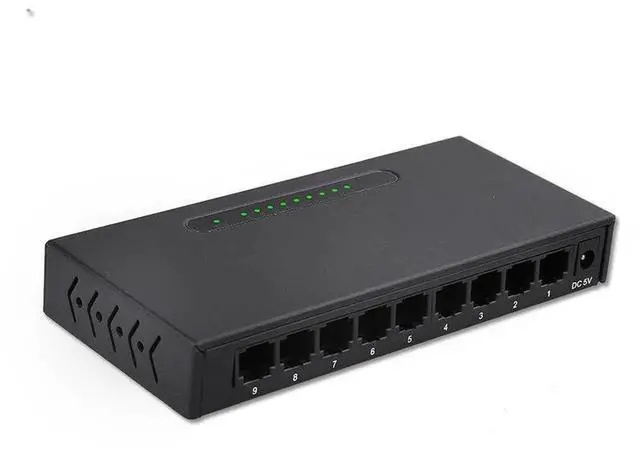

90 Gigabit Switch RJ45 Network Cable Hub Monitoring High-speed switching Diverters Metal shell
- Model number
- TXE091-M
- Chipset
- IP179N
- Port number
- 9 port 10/100M Auto MDI-MDIX RJ45
- Standard
- IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
- Network media
- 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
- Data rate
- 10/100M
- Forwarding rate
- 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
- LED Indicator
- 10/100Mbps(Link/Act),Power
- Dimension
- 160*72*24mm
- Power Input
- DC5V/500mA
- Power Consumption
- Max1.5W
- Environment
- Operating Temperature: 0 -40
- Relative Humidity: 10%-90%(non-condensing)
- Storage Temperature: -40-70
- Relative Humidity: 5%-90%(non-condensing)
- Similar Products Shop All Products
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model number
TXE091-M
Chipset
IP179N
Port number
9 port 10/100M Auto MDI-MDIX RJ45
Standard
IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Network media
10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP
Data rate
10/100M
Forwarding rate
10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator
10/100Mbps(Link/Act), Power
Dimension
160*72*24mm
Power Input
DC5V/500mA
Power Consumption
Max 1.5W
Environment
Operating Temperature: 0 -40
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40-70
Relative Humidity: 5%-90%(non-condensing)
