10PCS DB15 Solderless Connector, RS232 D-SUB Serial to 15-pin Port 16mm Thinner Terminal Female Adapter Breakout Board with Case Long Bolts Nuts

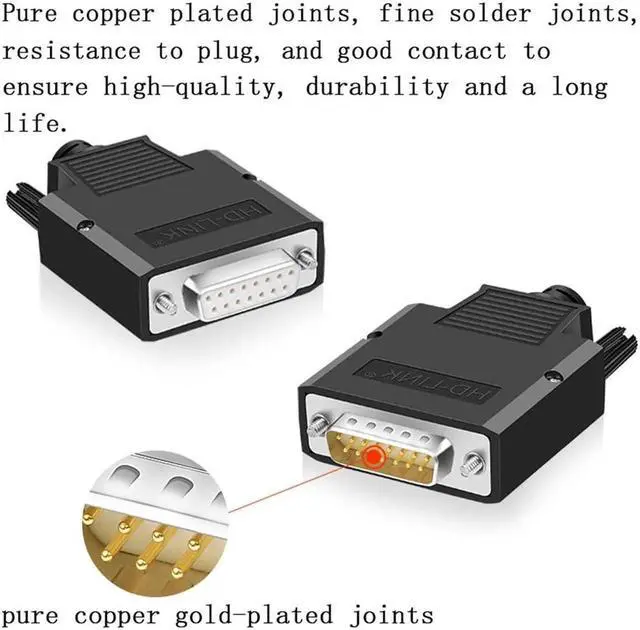

- DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.

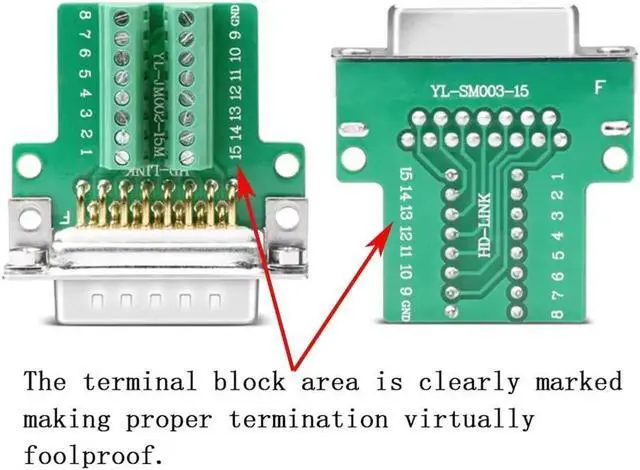

- No Soldering Required. Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
- SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.

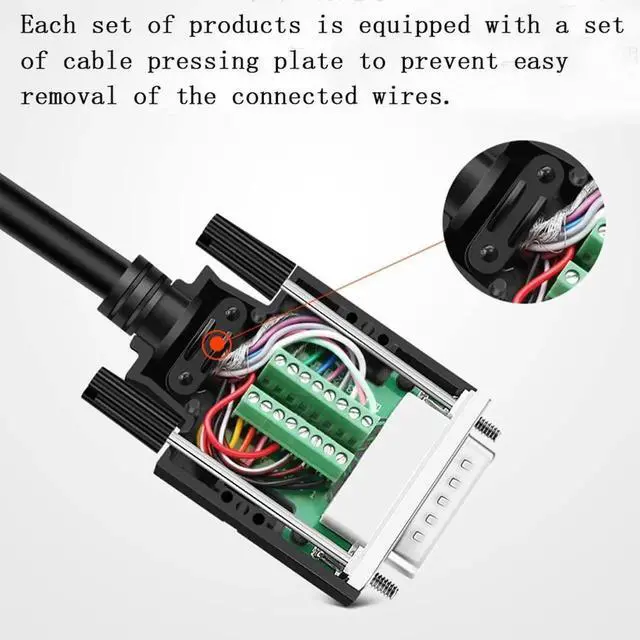

- RELIABLE: Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.
- WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrument
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
:
Name: 16mm Thin DB15 solderless module
Plug type: Female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: Screw lock
Pin Pitch: 3.81 mm/ 0.15 in
Cable Specification: 28-16 AWG/ 0.15 - 1.5 mm2
Torque: 0.2N m ( 1.7L b-In. )
Opening size (cable port): 10.5 mm/ 0.41 ''

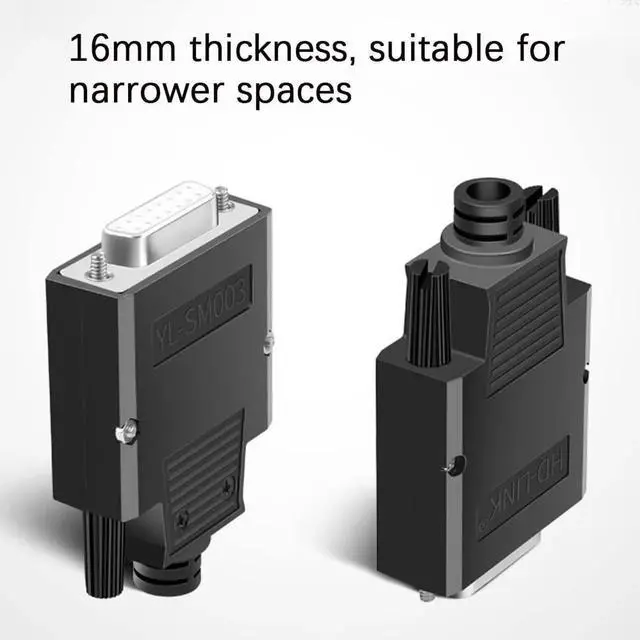

Thickness: 16mm/ 0.63 ''
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 55 mmx43 mmx16 mm/ 2.17 ''x 1.69 ''x 0.63 ''

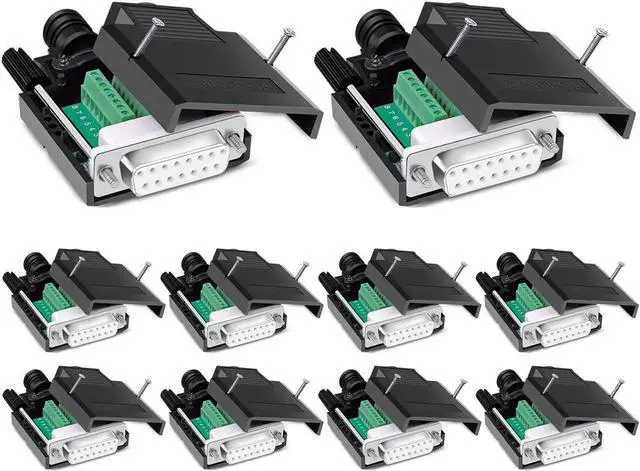

Package includes:
10 x DB15 16mm Female Solderless Connectors
10x cable pressing plate
20x Lock screws
20x Long bolts
10x 5mm tail pipe
10x 6mm tail pipe
10x 7.5 mm tail pipe
10x 8.5 mm tail pipe
