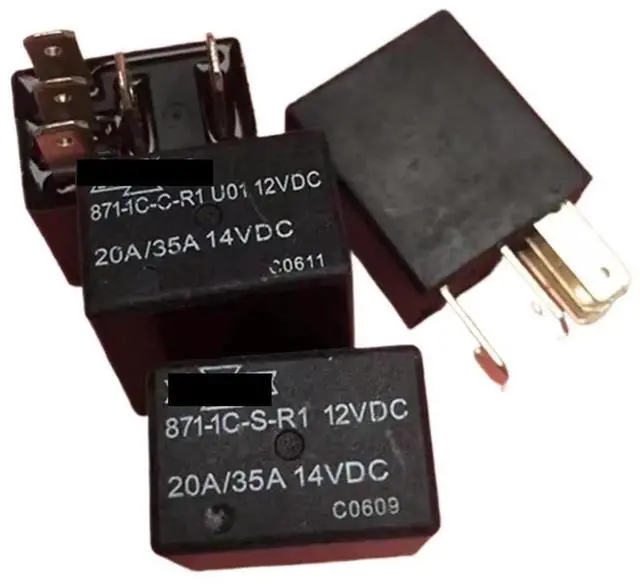

Song Chuan 871-1C-S-R1-12VDC Relay, 12V DC Coil SPDT 35A/20A DIP5 Automotive Relay with Built-in Resistor
Limited time offer, ends 06/06 By Aomoproging
- High Current Rating: 35A (NO) / 20A (NC) at 14VDC, handles heavy loads for automotive use.
- 12V DC Coil: 123 resistance, 97.5mA current, 1.2W power, ideal for 12V vehicle systems.
- SPDT 5-Pin Design: 1 Form C contact, DIP5 plug-in package for easy PCB/socket mounting.
- Built-In Resistor: Suppresses coil voltage spikes, protects circuits and extends relay lifespan.
- Industrial Quality: AgSnO contacts, 10 mechanical cycles, RoHS compliant for auto/industrial applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Song Chuan 871-1C-S-R1-12VDC is a heavy-duty SPDT automotive relay in a compact DIP5 package. Designed for 12V DC systems, it features a 12V coil (123, 1.2W) and robust silver tin oxide (AgSnO) contacts rated 35A NO / 20A NC at 14VDC. The integrated resistor absorbs coil surge voltage, safeguarding your circuitry from damage. Its plug-in design enables quick installation on PCBs or relay sockets, while the durable construction ensures up to 10 million mechanical operations. Widely used in cars, motorcycles, RVs, and industrial equipment for controlling lighting, fans, and power circuits.
