Specification:

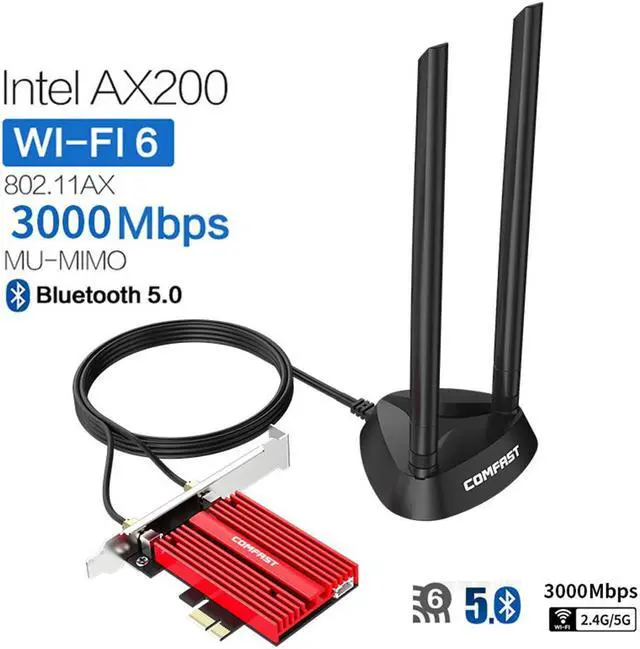

Hardware: for Intel AX200
Antenna: External 2 x 5dBi
Physical Interface: PCIE-X1
Wireless Rate: 2.4GH z: 574Mbps, 5GHz: 2400Mbps
(3000Mbps is the theoretical speed, actually 2.4GH z 574Mbps + 5.8GH z 2400Mbps)
Compatible slots: PCIE-16X / PCIE-8X / PCIE-4X / PCIE-1X, graphics card slot
Network Environment: Gigabit Network
Transmit Power: 20dBm
Other Functions: Simulate AP Function, need to install third-party software, for Win10 system does not support AP function
Scope of Application: Desktop (Not Supported by Apple computers)
Operating System Support: for Win10 (64-bit), Bluetooth 5.0
Product Size: 72 X 46mm/ 2.83 X 1.81"; Antenna Length 143mm/ 5.63; Extension Cable 1.5 m/ 4.92 ft
Use Environment:
Working Temperature: 0? ~ 40?
Storage Temperature: -40°C ~ 70°C
Working Humidity: 10% ~ 90% RH Non-Condensing
Storage Humidity: 5% ~ 90% RH Non-Condensing
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
Packages:
1 x Network Card
1 x Bluetooth Cable
1 x Screw
