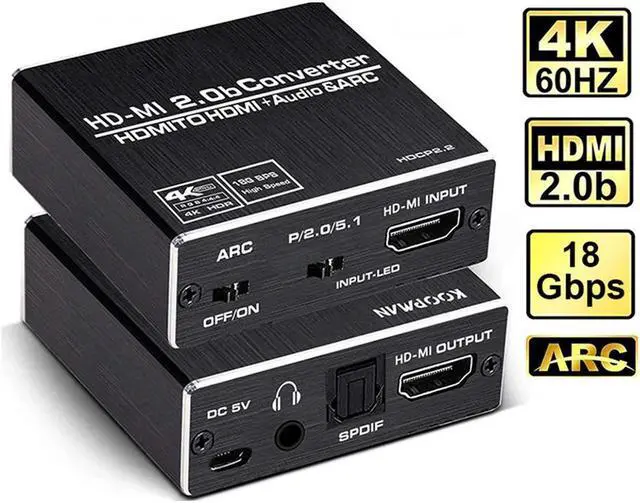

Upgrade HDMI Audio Splitter Extractor

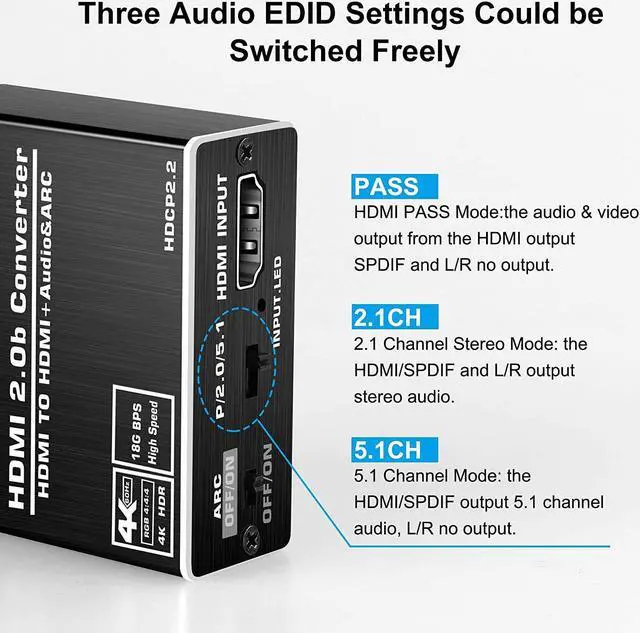

One HDMI Input to one HDMI Output (Pass Mode), Toslink SPDIF (Optical) digital audio output( 2.0CH / 5.1CH Mode), and 3.5 mm stereo audio output (2CH Mode), achieving the synchronization of audio signal separation, guarantees audio and video transmission with high-fidelity and lossless
Specifications
:
HDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit, 36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Features:
Support 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM 7.1 /DTS/dobly-ac-3 (not support always Dobly Digital plus)
Need DC5V power supply.
