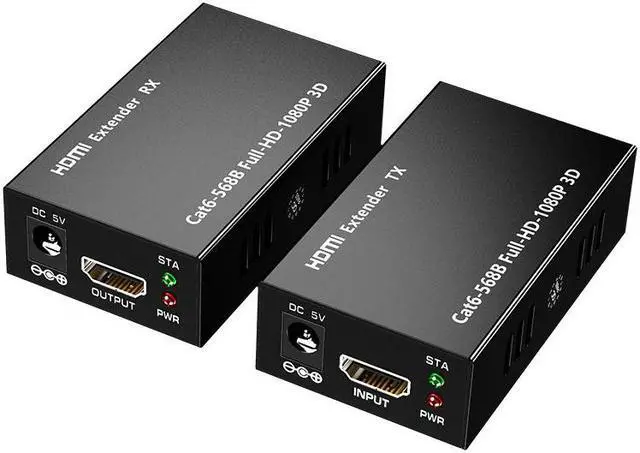

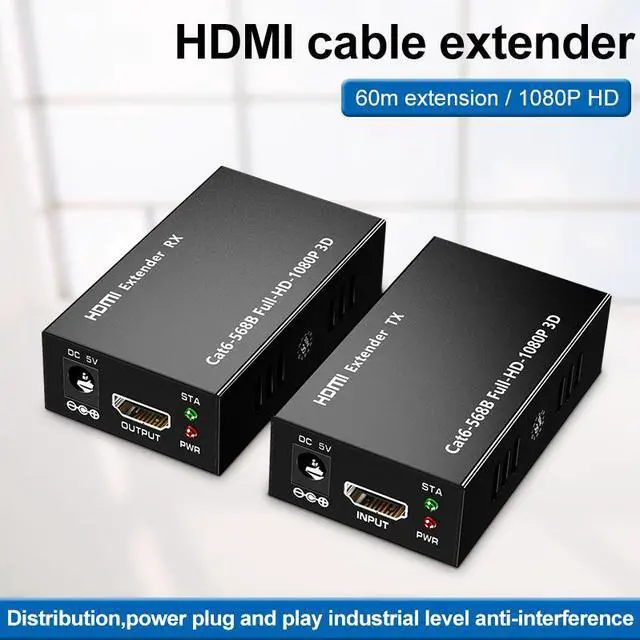

1080P HDMI Extender In-Line Transmitter/Receiver over Dual Cat5/Cat6 Extender Kit for Video/Audio,1920x1080 (1080p) @ 60Hz HDMI to rj45 60m/196ft Max Signal Amplifier

1080P HDMI Extender In-Line Transmitter/Receiver over Dual Cat5/Cat6 Extender Kit for Video/Audio,1920x1080 (1080p) @ 60Hz HDMI to rj45 60m/196ft Max Signal AmplifierKEY_TAB



Product description

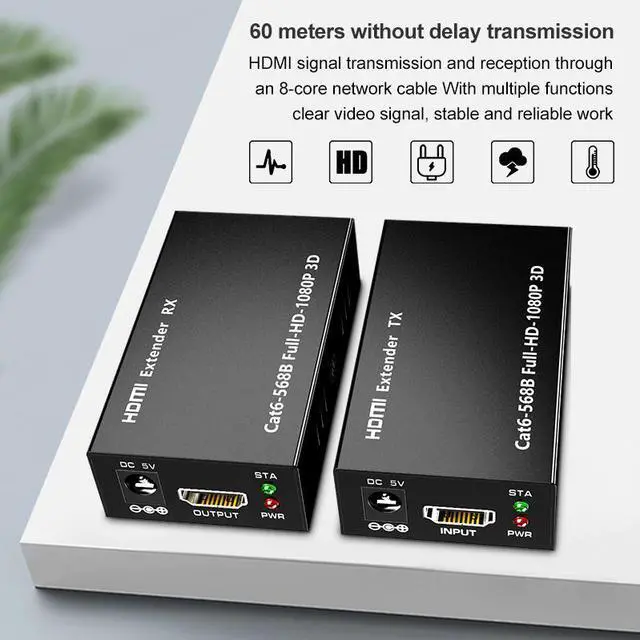

The HDMI signal amplifier and extender uses two unshielded twisted pair connections to expand the high 1080P high-definition video up to a distance of up to 60 meters. Not only does it break through the limitation of the HDMI cable, but the Cat5/6 network cable is more convenient in the structure of the cable. With adaptability and lower cost, it is your best choice to expand HDMI signal.



Features

Support video input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Signal transmission: a cat5e or cat6 cable (recommended) instead of the HDMI cable, the cable between the receiver and the transmitter can be up to 60 meters long

Support video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

LED indicator light: When the power supply or extender is working, the related LED light will turn on

Using AWG26 cable, the signal transmission can reach 60 meters

No signal loss



Installation

External DC5V/2A power adapter



Delivery accessories list:

1. 5V voltage power adapter

2. An instruction sheet

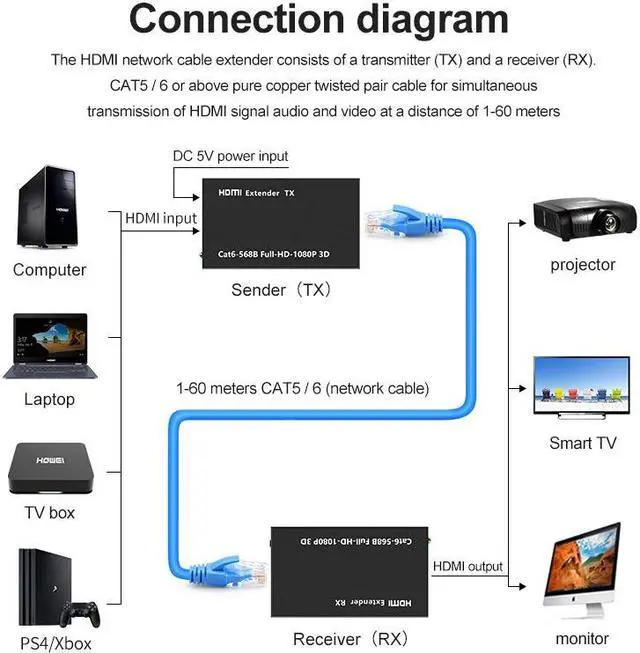

Connection and operation:

Use an HDMI cable to connect the signal source to the transmitter of the extender, the cable can be up to 15 meters long

Use an HDMI cable to connect the signal end to the receiving end of the extender, the cable can be up to 15 meters long

Use a cat5e cable or cat6 cable (recommended) to replace the HDMI cable to connect the transmitter and receiver of the extender, and the maximum transmission length is 60 meters

Plug in the power supply to the transmitter and receiver
