HDMI Repeater Female to Female Signal Extension HDMI 1.4 1080P@60hz Up to 40m (131ft)
- The HDMI amplifier is a passive amplifier and does not need to be connected to a power supply. The amplifier has polarity and cannot be reversed. INPUT is connected to the input to the signal source, and OUT is connected to the output to connect to the display device.
- The passive amplifier cannot restore the distorted signal, but the function is to amplify the signal that is about to be distorted so that it is not distorted.
- For example: 1. To connect a 10m and a 20m HDMI cable, you must first ensure that the 20m cable can be used independently. If the 20m cable cannot be used alone, the signal has been distorted. Add an extender. It didn't work. On the contrary, if the 20-meter cable can be used independently, you can use an extender to connect the two lines to a distance of 30 meters.
- Therefore, if you want to connect two lines together, you must ensure that these two lines can be used alone. One 15-meter and one 20-meter line can be used alone
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

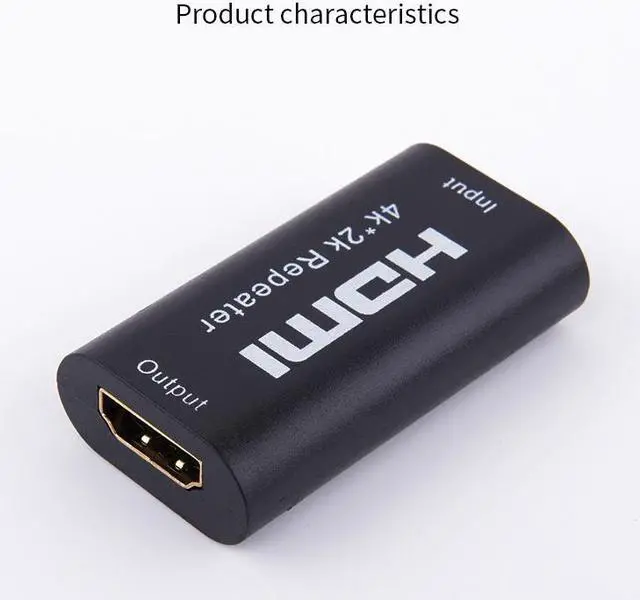

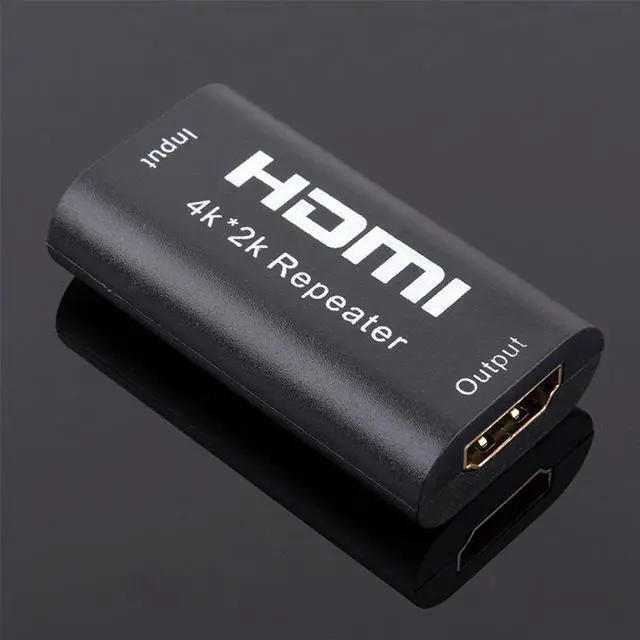

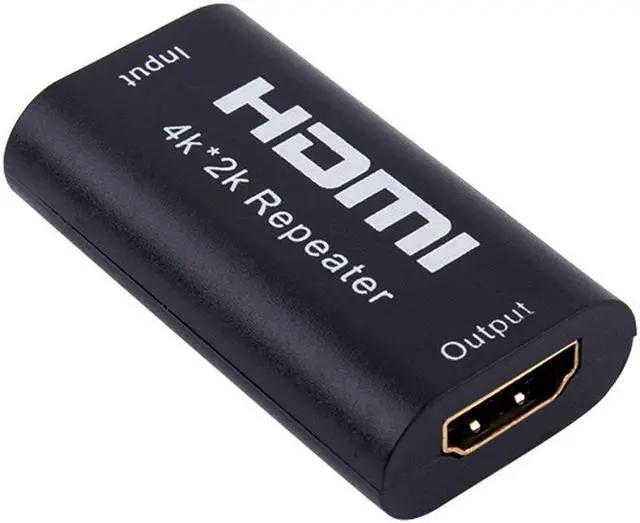

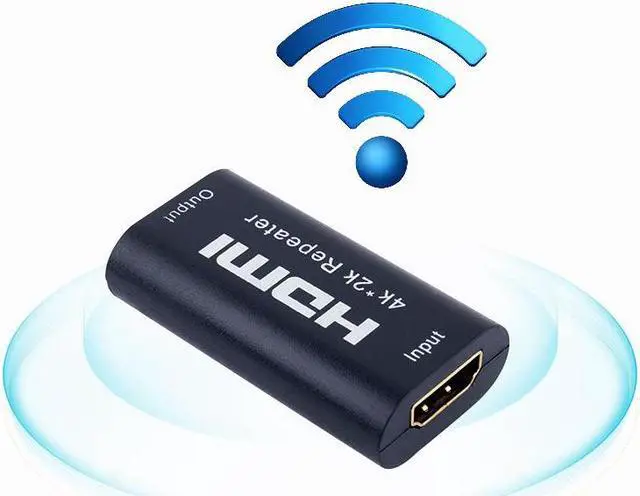

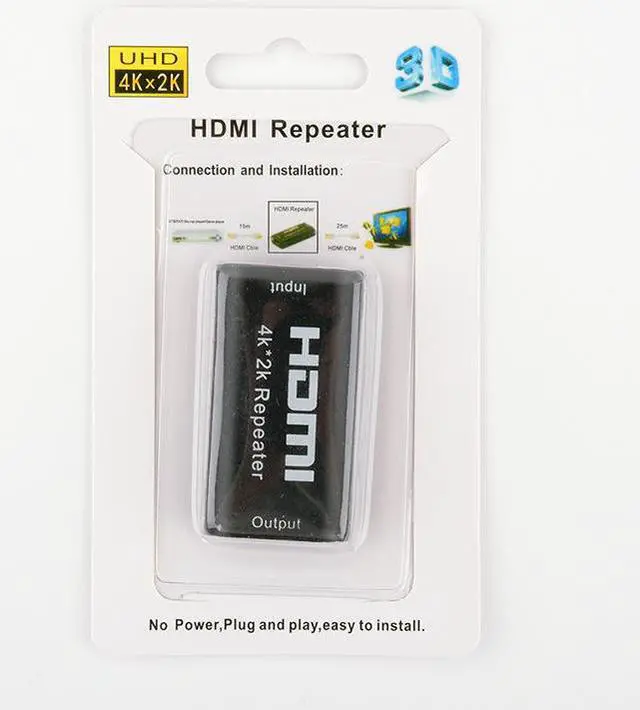

HDMI Repeater Female to Female Signal Extension HDMI 1.4 1080P@60hz Up to 40m (131ft)
Product name:HDMI repeater female to female signal extension HDMI amplifier support 4K*2K
Product description
The HDMI amplifier is a passive amplifier and does not need to be connected to a power supply. The amplifier has polarity and cannot be reversed. INPUT is connected to the input to the signal source, and OUT is connected to the output to connect to the display device.
The passive amplifier cannot restore the distorted signal, but the function is to amplify the signal that is about to be distorted so that it is not distorted.
For example: 1. To connect a 10m and a 20m HDMI cable, you must first ensure that the 20m cable can be used independently. If the 20m cable cannot be used alone, the signal has been distorted. Add an extender. It didn't work. On the contrary, if the 20-meter cable can be used independently, you can use an extender to connect the two lines to a distance of 30 meters.
Therefore, if you want to connect two lines together, you must ensure that these two lines can be used alone. One 15-meter and one 20-meter line can be used alone, so it can be used as long as it is connected with an extender for 40 meters.
Product Specifications
1.HDMI: Compliant with HDMI 1.4
2.HDMI HDCP: Compliant with HDCP 1.1
3.Operating frequency: 165 mhz
4.HDMI data rate: 1.65 g bps (single link)
5.Input/output resolution: HD: 480i@60hz 480i@50hz 480p@60hz 576p@50hz 720p@60hz 720p@50hz 1080i@60hz 1080i@50hz 1080p@60hz 1080p@50hz 1080p@30hz,1080p@25hz,1080 p@24hz
6.Support 3D
7.Distance support with twisted pair cable: more than 40 meters
