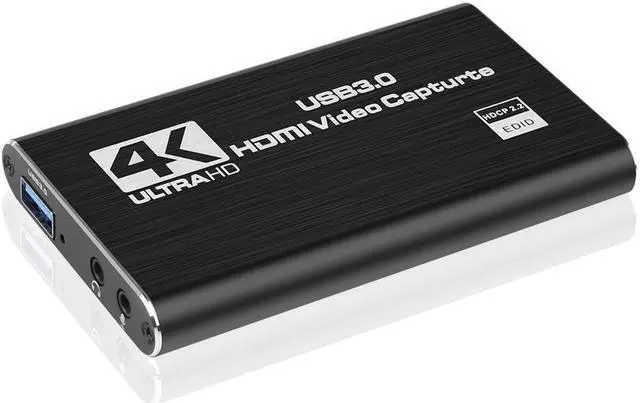

4K Audio Video Capture Card, USB 3.0 Video Capture Device with 4K HDMI Local Loop Out, Full HD 1080P 60FPS Video Recorder Grabber for OBS Game Recording, Live Streaming Broadcasting

4K Audio Video Capture Card, USB 3.0 Video Capture Device with 4K HDMI Local Loop Out, Full HD 1080P 60FPS Video Recorder Grabber for OBS Game Recording, Live Streaming Broadcasting

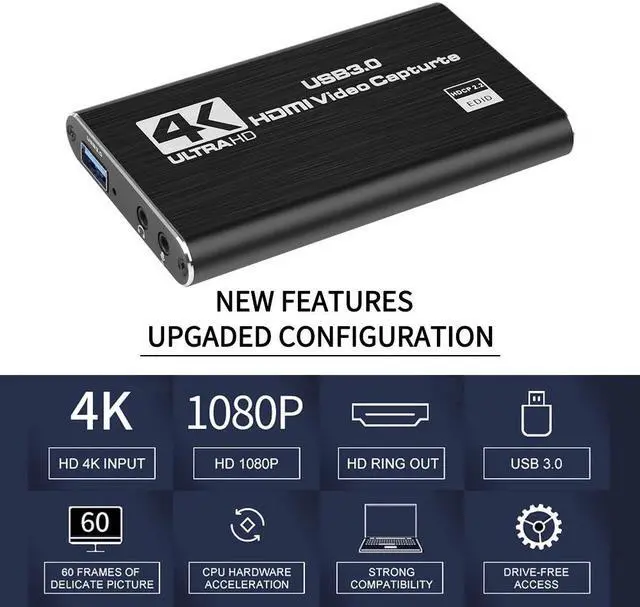

Features:

1.It can capture single HD HDMI video signal;

2.The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;

3.Support MJPEG and YUY2;

4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;

5.Some win7 need to install the driver;

6.Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;

7.USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);

8.Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;

9.Can automatically detect the input audio format and convert it to 48KHz PCM audio;

10.2 collection rods can be used on a PC;

11. Support online firmware upgrade to better improve product compatibility;

12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;

13. Support all third-party player software compatible with UVC and UAC protocols;



System Requirements:

Computer system requirements:

Windows® 10 / Windows 8.1 / Windows 7 (SP1);

Desktop computer: Intel® Core i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above;

Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above;

4 GB RAM (8 GB recommended);



Mobile phone system requirements:

Android phone (supported by newer phones);

Only supports USB2, not USB3. (The reason is that android UVC driver does not support USB3);

If it is a USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use



Specifications:

1. Input interface: 1 HDMI interface;

2. Output interface: USB3.0, 300 ~ 350MB / s throughput;

3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480

4. HDMI sound input: LPCM sound signal;

5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;

6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /

1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x1080

frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps;

7. Video sampling rate: HDMI: 165MHz;

8. Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards;

9. Output color space: YUV, RGB;

10. Support operating system: Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;

11. Software compatibility:

Adobe Flash Media Live Encoder (Windows, OS X);

Real Producer Plus (Windows); VLC (Windows, OS X, Linux);

QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and etc.

12. Power consumption: <= 2.5W;

13. Working temperature: 0-70 degrees Celsius;

14. Storage temperature: -20-120 degrees Celsius;

15. Storage humidity: 5% -90%;

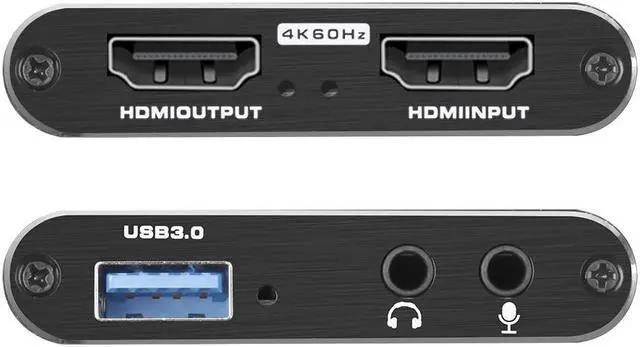

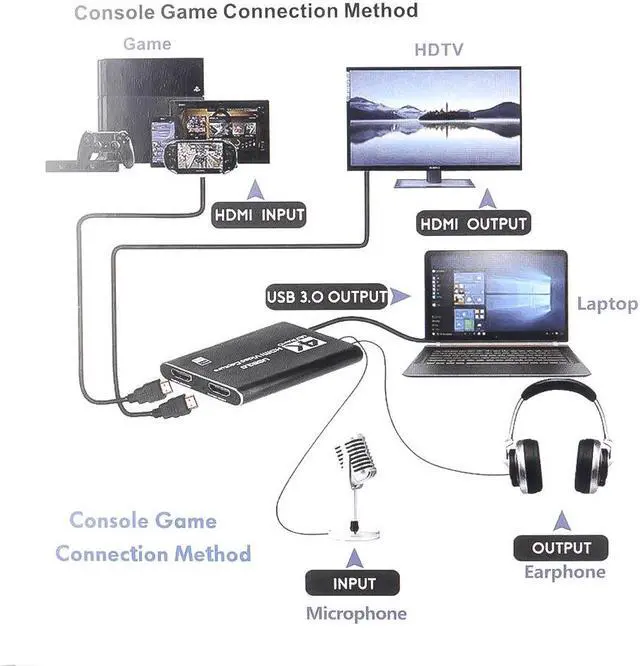

Interface Description:

1. Signal indicator: When the device captures video normally, the indicator lights up.

2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights.

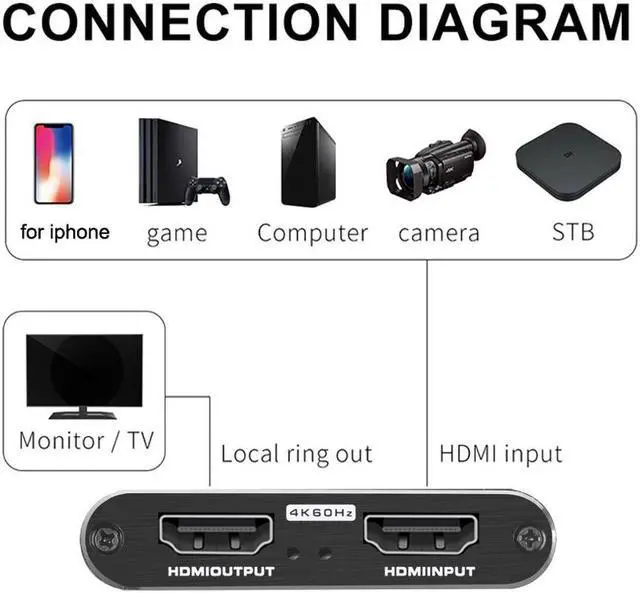

3. HDMI input: This slot is where the HDMI output source such as camera, camcorder, game box, IPTV box, etc. is connected.

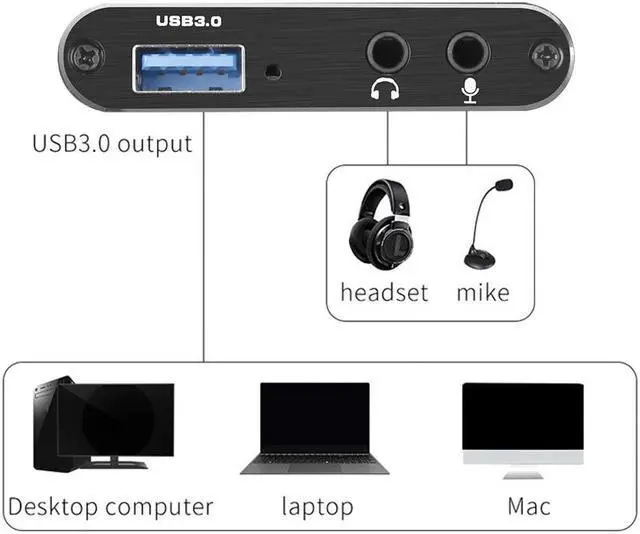

4. USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop.
