$87.88
Ships from China.
Meet Your Seller

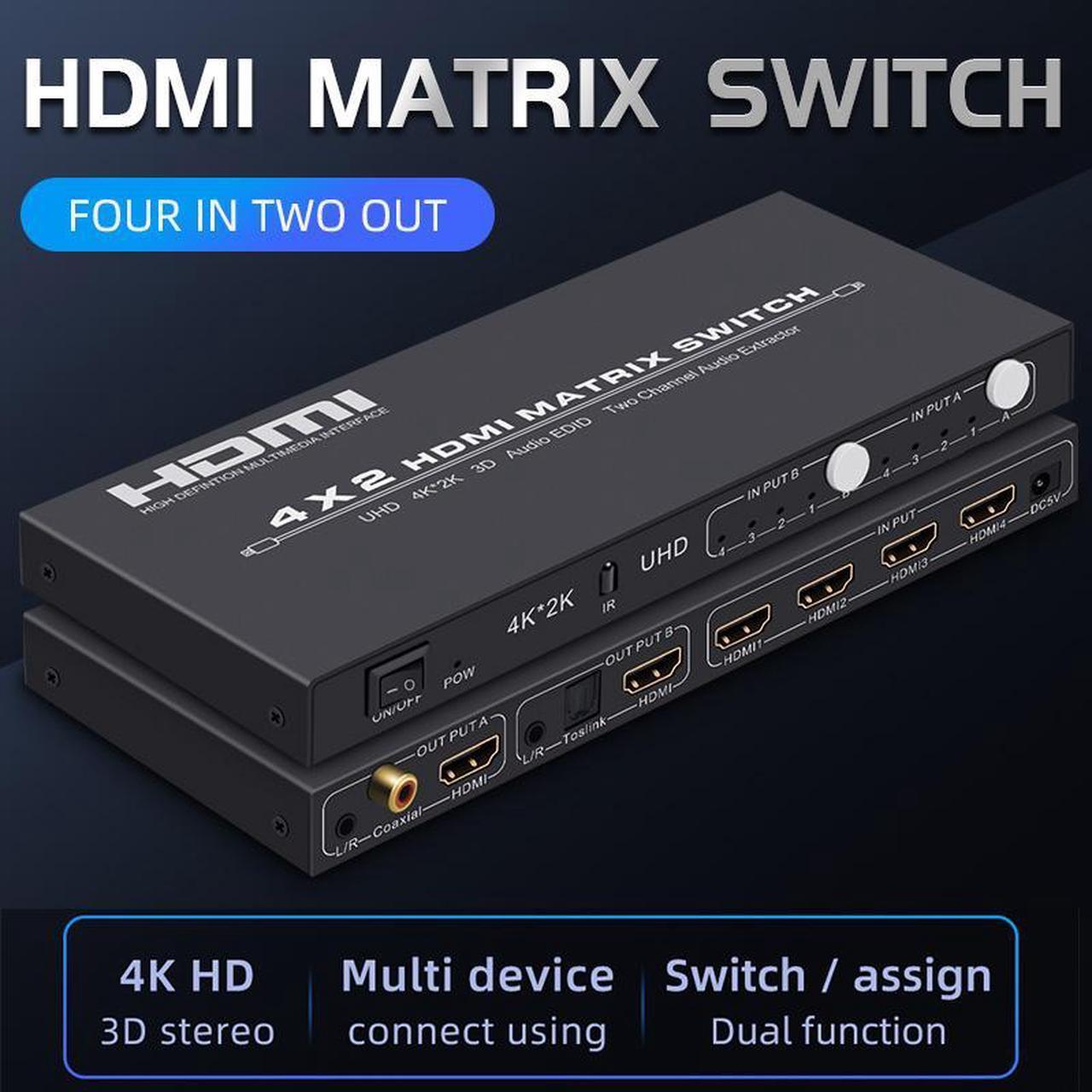

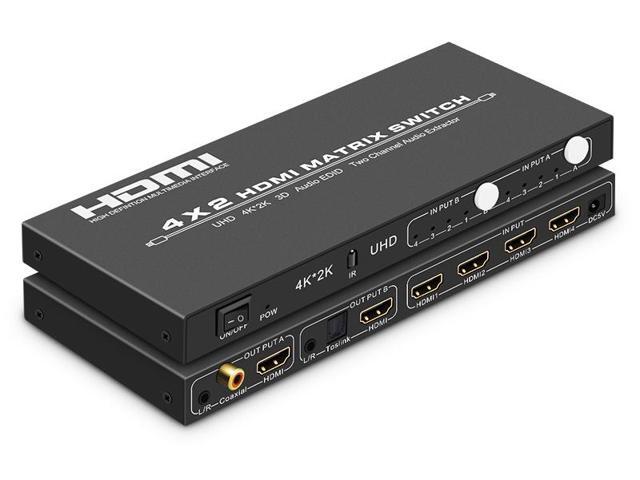

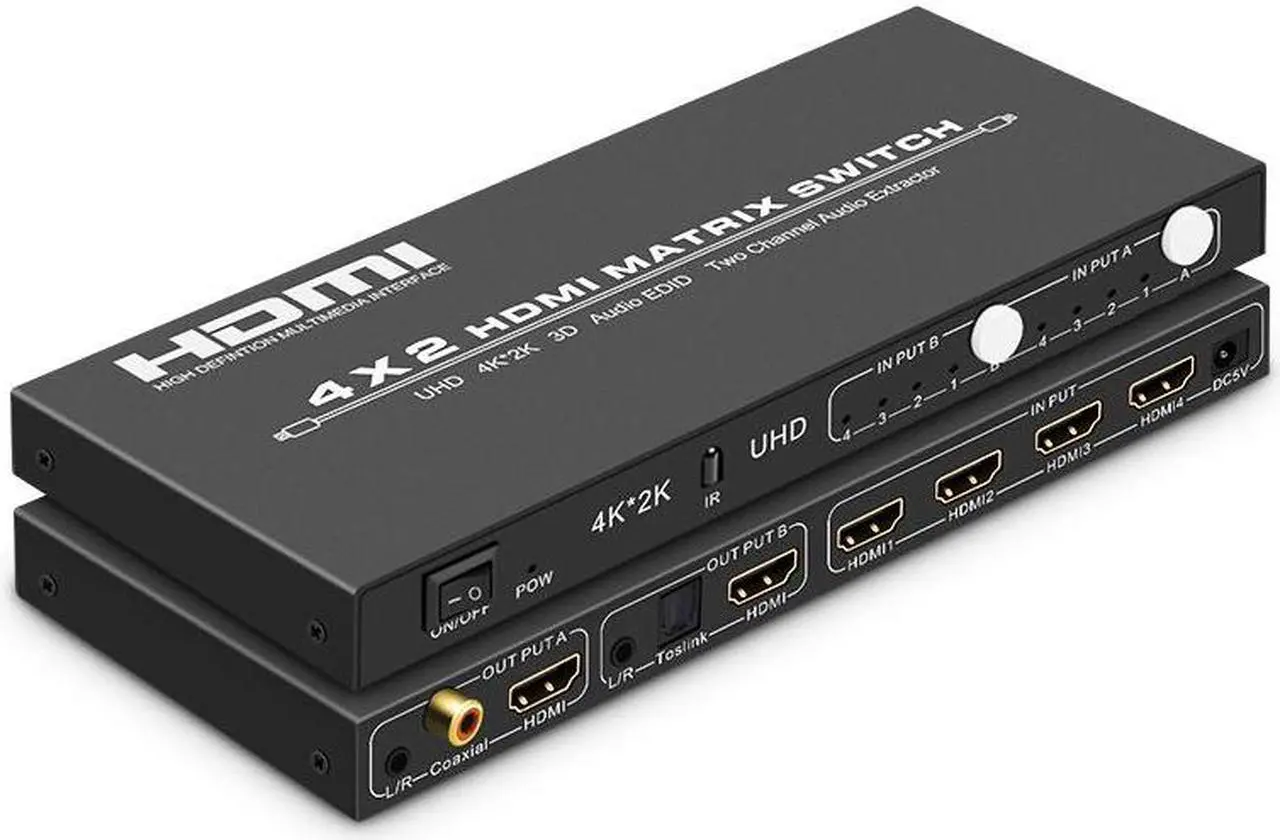

HDMI 2.0 Matrix 4x2 HIFI with 3D Audio EDID HDMI Matrix Switcher 4 in 2 out Audio Extractor 4KHDMI Switcher Splitter
- The HDMI2.0 Matrix 4x2 HIFI can connect four high definition sources and two sinks with audio
- output optical or stereo simultaneously. It can easily switch or split four high definition video sources to two compatible displays or projectors. The Optical and stereo audio output can extract audio signal from output A or B.
- Four HDMI input signals switched or split to two HDMI sink devices

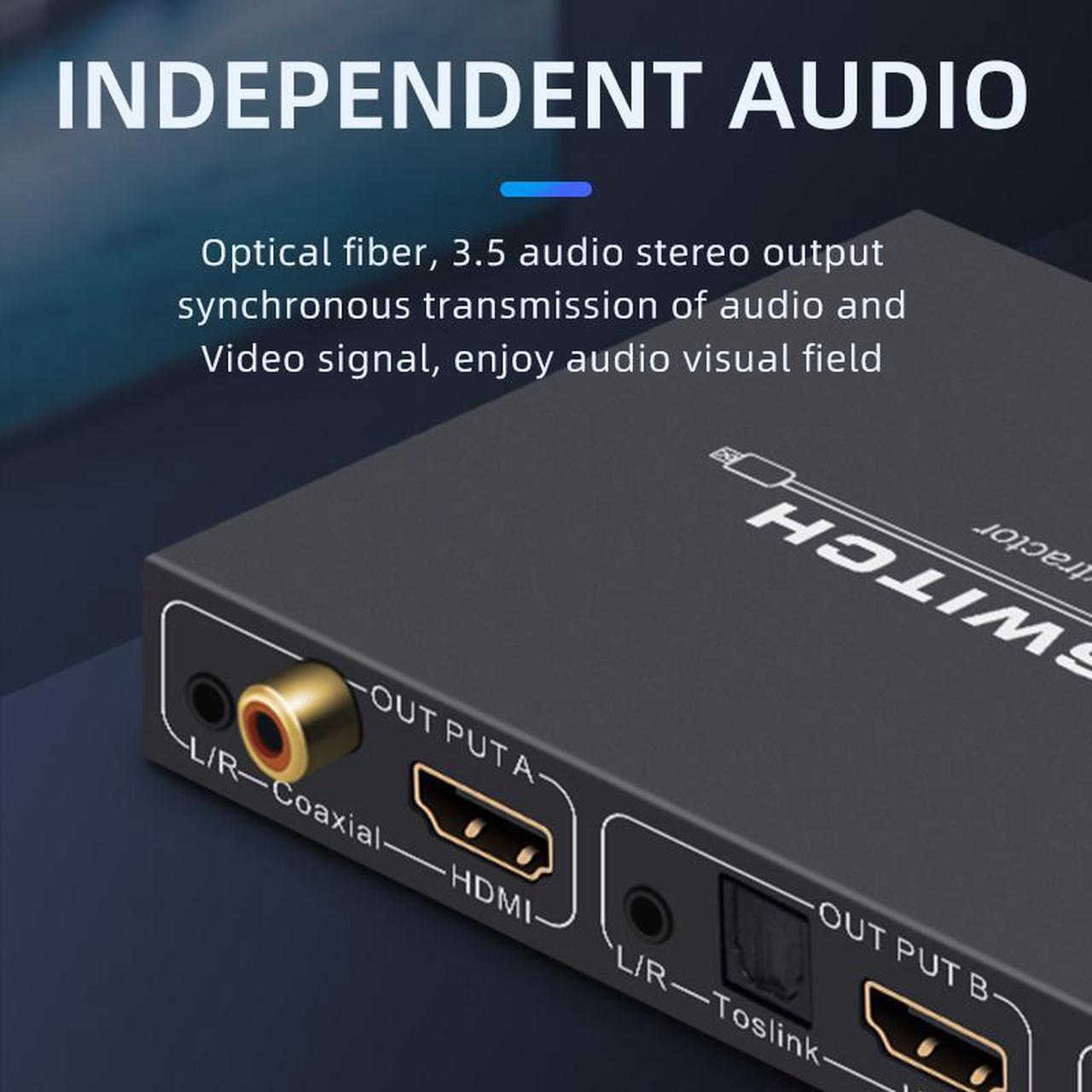

- The HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output
- Audio sync separator output can be achieved
- Support 3D video format
- Support for 4K(input)resolution 2K (output) (Down scaler)
- Support HDMI 2.0 HDCP2.3
- Support deep color 30bit,36bit
- Support Blue-Ray24/50/60fs/HD-DVD/xvYCC
- Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD
- Support signal retiming

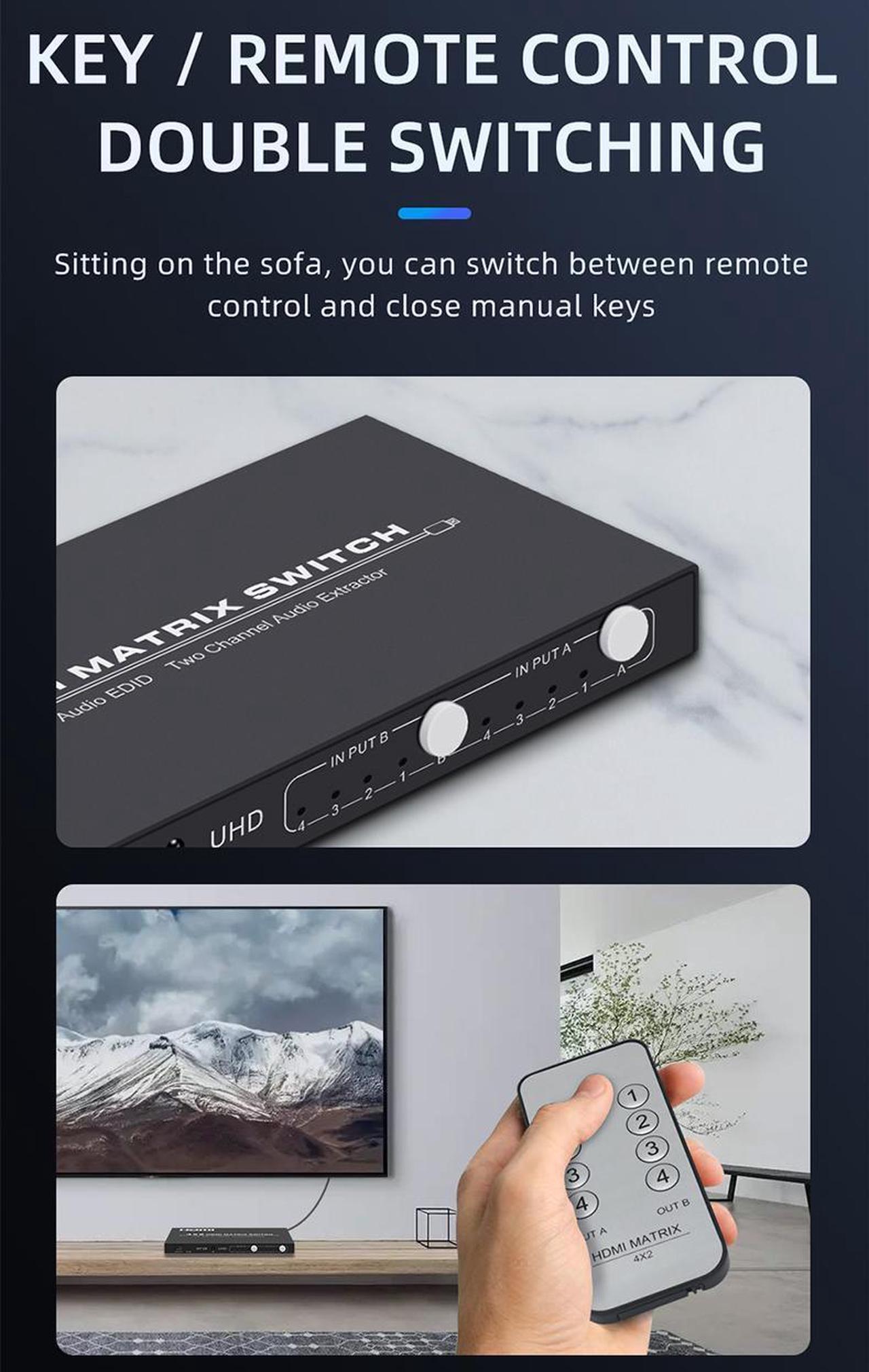

- Inputs can be switched with the IR remote control, also can be controled by two buttons
+
+
Overview
Specs
Reviews
INTRODUCTION
The HDMI2.0 Matrix 4x2 HIFI can connect four high definition sources and two sinks with audio
output optical or stereo simultaneously. It can easily switch or split four high definition video sources to two compatible displays or projectors. The Optical and stereo audio output can extract audio signal from output A or B.
FEATURES
Four HDMI input signals switched or split to two HDMI sink devices
The HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output
Audio sync separator output can be achievedKEY_TAB
Support 3D video format
Support for 4K(input)resolution 2K (output) (Down scaler)KEY_TAB
Support HDMI 2.0 HDCP2.3
Support deep color 30bit,36bit
Support Blue-Ray24/50/60fs/HD-DVD/xvYCC
Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSDKEY_TAB
Support signal retiming
Inputs can be switched with the IR remote control, also can be controled by two buttons
SPECIFICATIONS:
HDMI Version..................HDMI2.0
HDMI UHD resolution.....................24/30/50/60fs/2160p
HDMI HD resolution.................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format.............................................24 bit/deep color 30 bit,36 bit,48 bit
Support audio format.............DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output...............................SPDIFand35mmStereo
Max transmission bandwidth..........................................600MHz
Max baud rate.................................................18Gbps
Input/Output TMDS signal.............................. .......0.5~1.5Volts p-p
Input/Output DDC signal........................ ......5Voltsv p-p(TTL)
Input/Output 4K/30Hz cable distance...........................=15m AWG24 HDMI standard cableKEY_TAB
Input/Output 4K/60Hz cable distance.......................=5mAWG24 HDMI 2.0 standard cable
Max working current........................... 1..600mA

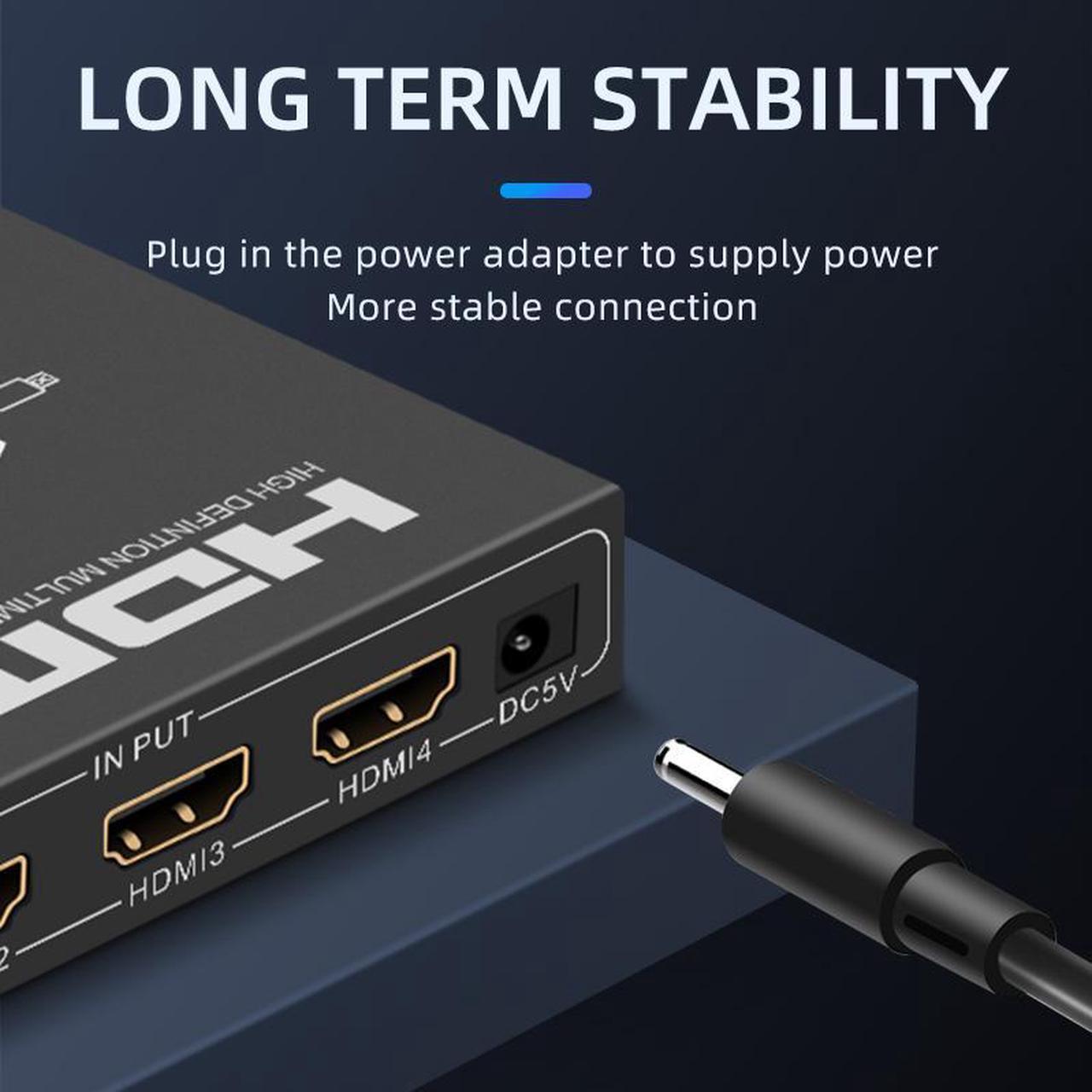

Power adapter forma.........Input:AC(50Hz,60Hz)100V-240V;Output:DC5V/1A
Operating Temperature range.................................15to+55?)
Operating Humidity range...5 to 90%RH(No Condensation)
Dimension(LXWXH)....................205x90x20(mm)
Weight...............500g
