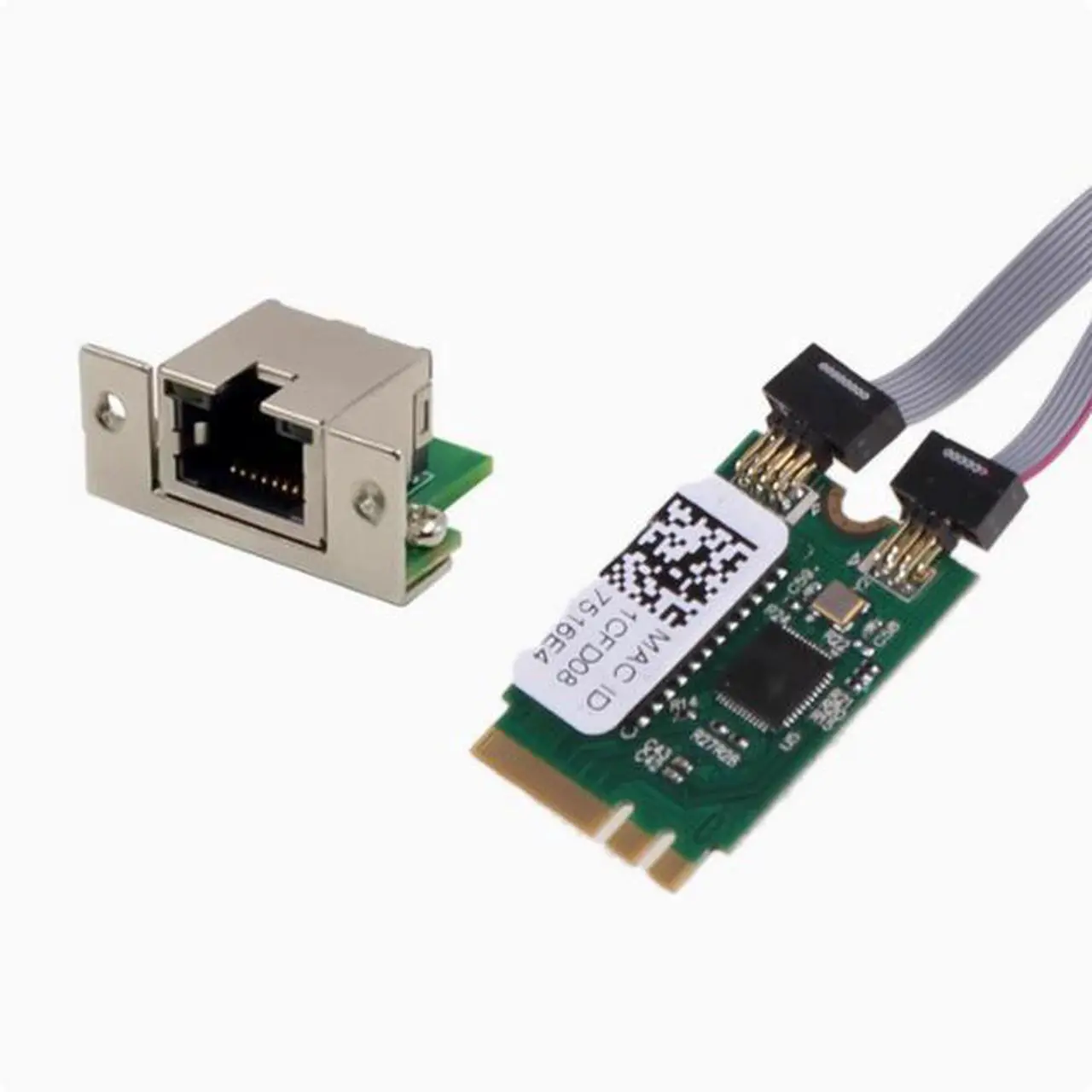

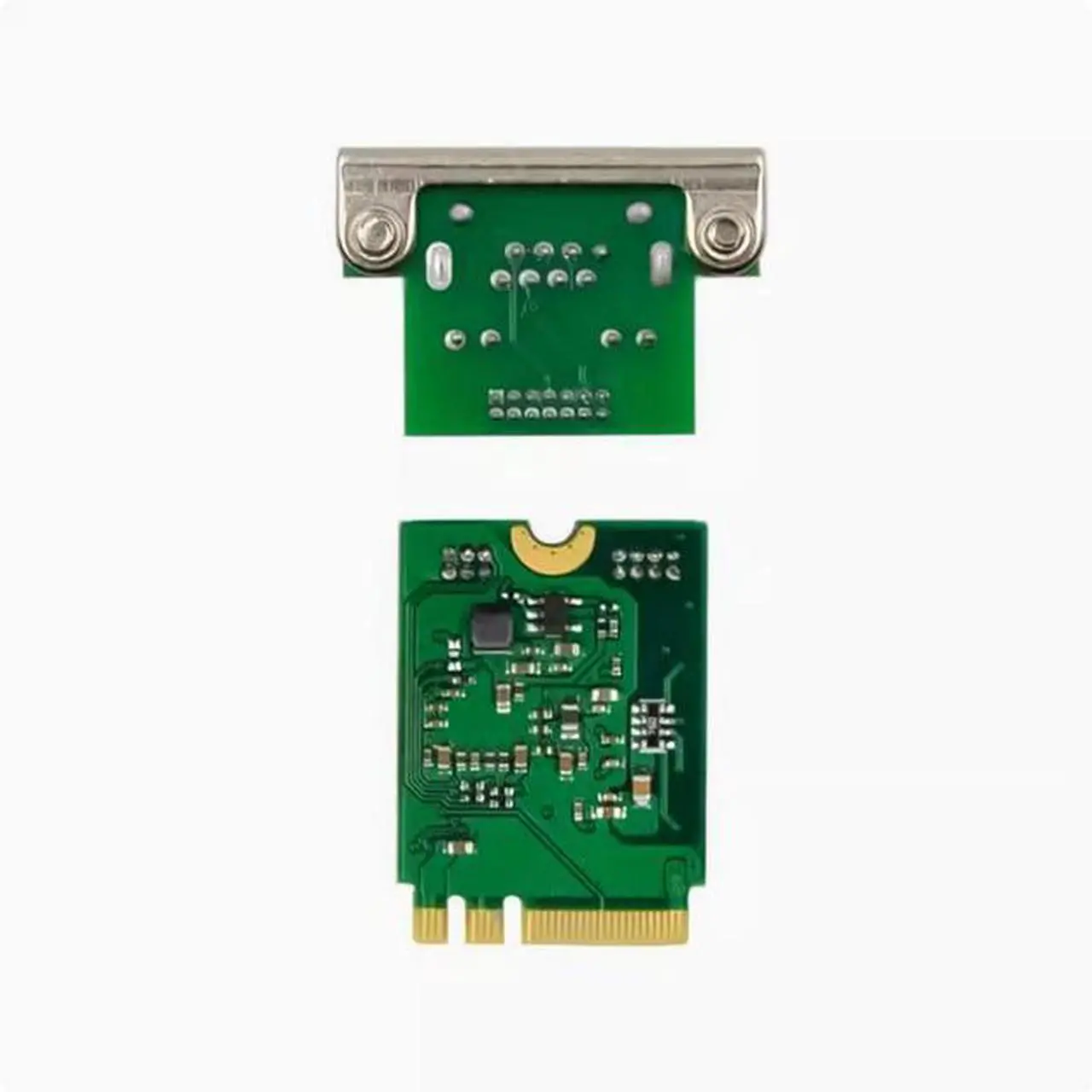

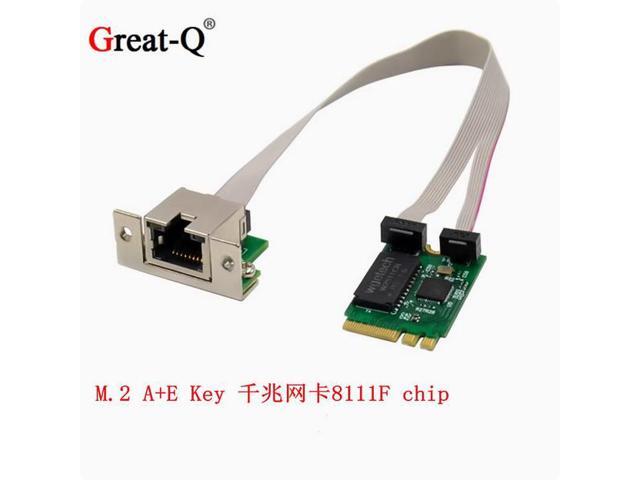

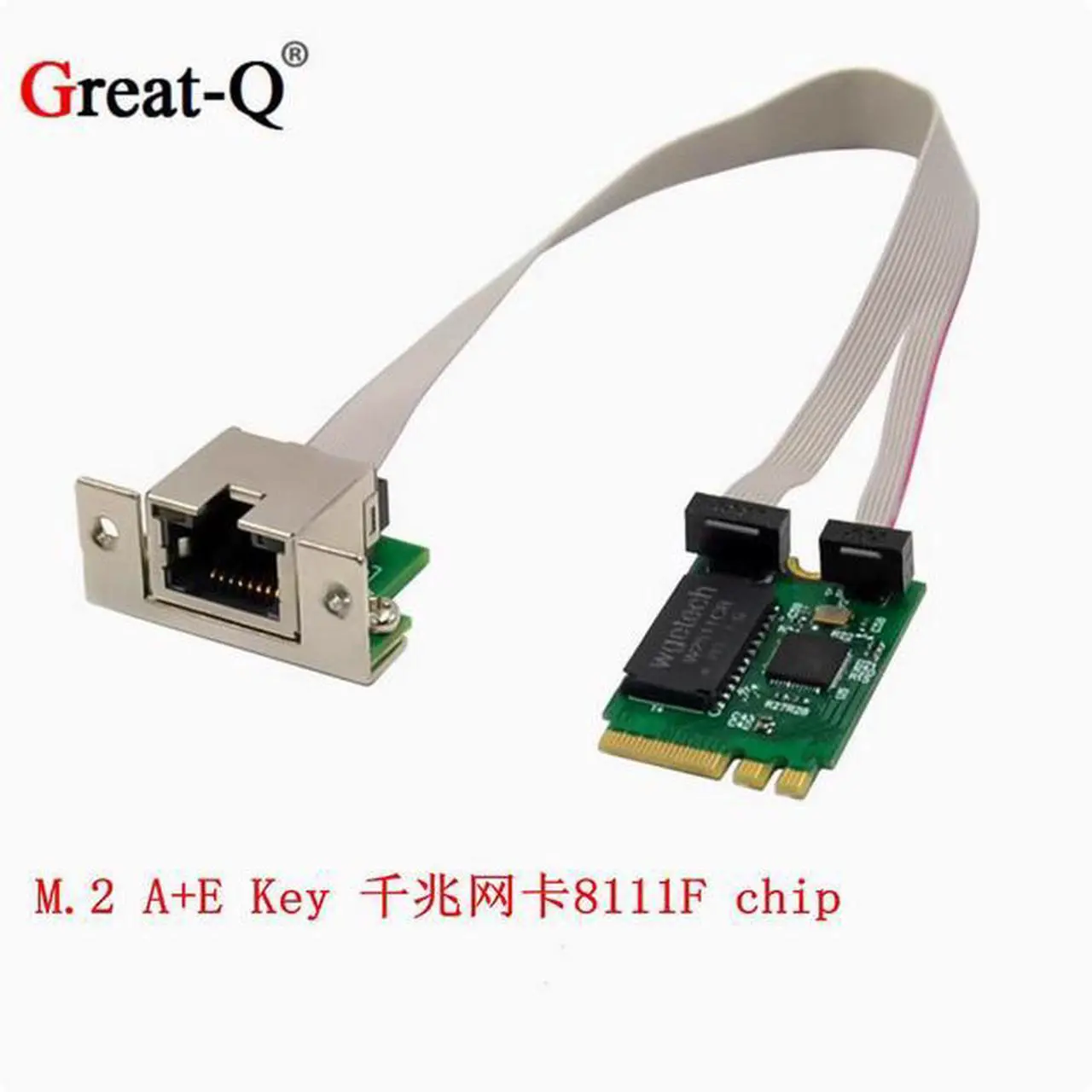

M2 NGFF KEY A+E RTL8125B Industrial 2.5G Gigabit Network Card 2500M desktop Gigabit vertical needle 8111F

Line length: 18CM

SM-LG8125B-BT M. 2 A+E KEY RTL8125B 2.5G single-port network adapter, will be four-speed IEEE 802.3 compatible media

The access controller is combined with a four-speed Ethernet transceiver that complies with the 10/100Mbps Ethernet IEEE 802.3 u specification, the IEEE 802.3 ab 1000Mbps Ethernet specification and the IEEE 802.3 bz 2500Mbps Ethernet specification. It is also available via CAT5e UTP cable or CAT3 UTP

(only 10Mbps) cable provides high-speed transmission. It is suitable for multiple market segments and emerging applications such as desktops, workstations, servers, communications

Platforms and embedded applications.





- Conforms to PCI Express specification revision v 2.1
- Supports 1-Lane 2.5 /5Gbps PCI Express bus
- Onboard single 2.5G network port, integrated 10/100/1000M/ 2.5G transceiver
- Support 2.5G and 1G Lite, 100M mode
- Automatic negotiation with extended next page function
- Support for exchange/sex/skew correction
- Cross detection and automatic correction

- Compatible with IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
- Supports IEEE1588v1, IEEE1588v2, and IEEE 80.2AS time synchronization
- Supports shaping algorithms based on IEEE 802.1Q av credit
- Supports IEEE 802.1P Layer 2 priority coding
- Supports the IEEE 802.1Q VLAN tag
- Supports IEEE 802.3AZ -2010
- Support IEEE 802.3 bz-2016 (NGBASET)
- Support full duplex flow control (IEEE 802.3 x)
- Supports jumbo frames up to 16K bytes
- Support virtual Machine queue (VMQ)
- Support quad-core reception - Side Scaling (RSS)





Bus type: M. 2A +E

Transmission medium: 1 x 2.5G RJ45 port

Transmission rate: 2.5G /1000/100Mbps

Network mode: Supports 2.5G or 1G Lite mode

Network topology: - Supports IEEE1588v1, IEEE1588v2, and IEEE 80.2AS time synchronization
- Supports shaping algorithms based on IEEE 802.1Q av credit
- Supports IEEE 802.1P Layer 2 priority coding
- Supports the IEEE 802.1Q VLAN tag
- Supports IEEE 802.3AZ -2010
- Support IEEE 802.3 bz-2016 (NGBASET)
- Support full duplex flow control (IEEE 802.3 x)



Features: - Automatic negotiation with extended next page function

- Support for exchange/sex/skew correction
- Cross detection and automatic correction
- Supports hardware ECC (error correction code) and hardware CRC (cyclic redundancy check) functions

- Support PCI MSI (Message Signal Interrupt) and MSI-X
- Supports the ECMA-393 ProxZzzy standard for sleep hosts
- Support LAN wake-up and "RealWow! " Technology (Remote Wake up)








System requirements:

- Win 7/Win 8/Server 2008/Win 8.1 /Server 2012/2016, Win 10 32/64bit, Linux...

- One available M. 2 A+E KEY slot

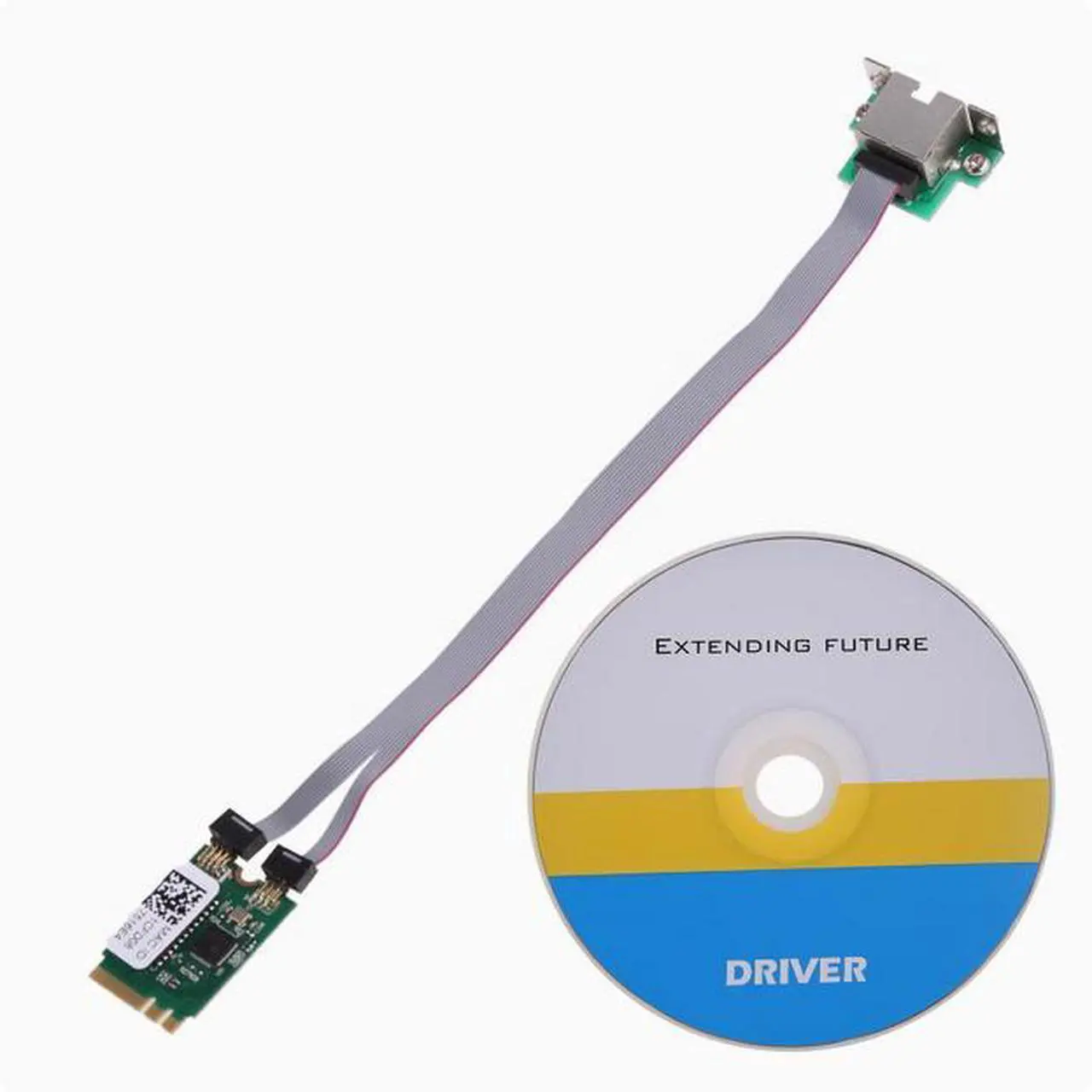

Packaging:

1 x M. 2 A+E RTL8125B- Main card

1 x RJ45 terminal

1 x CD- Drive disc

1 x Network terminal cable
