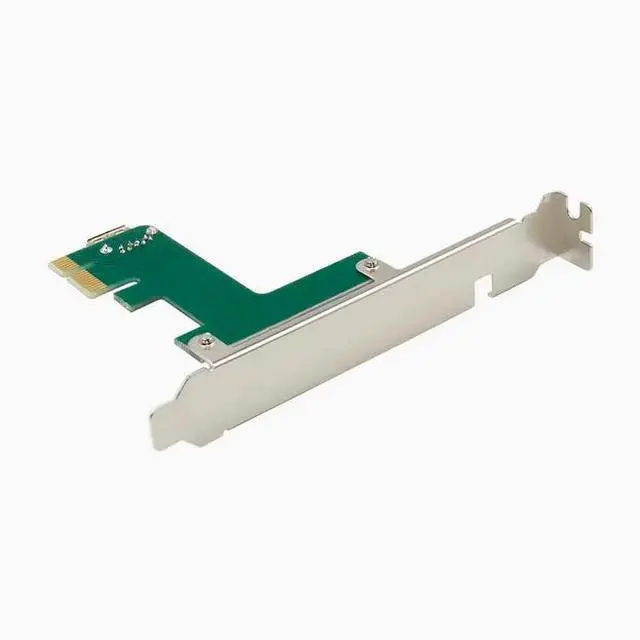

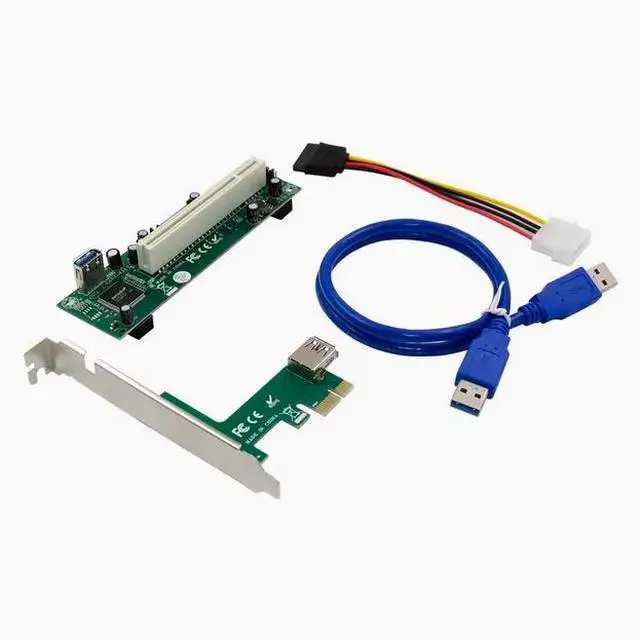

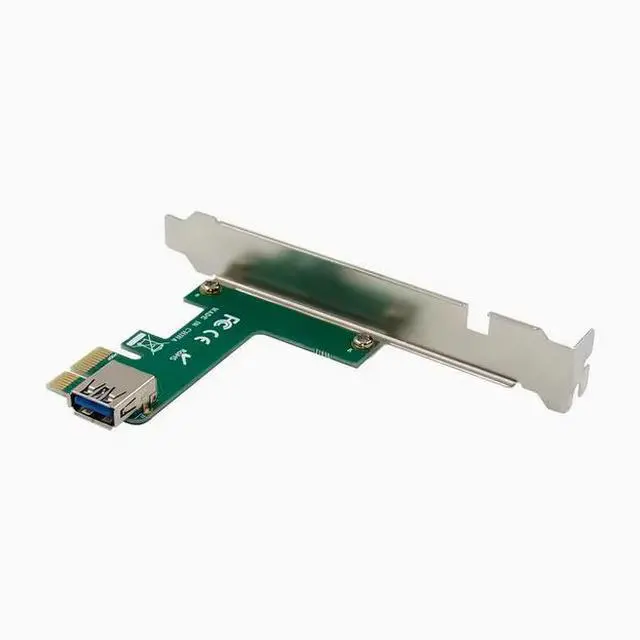

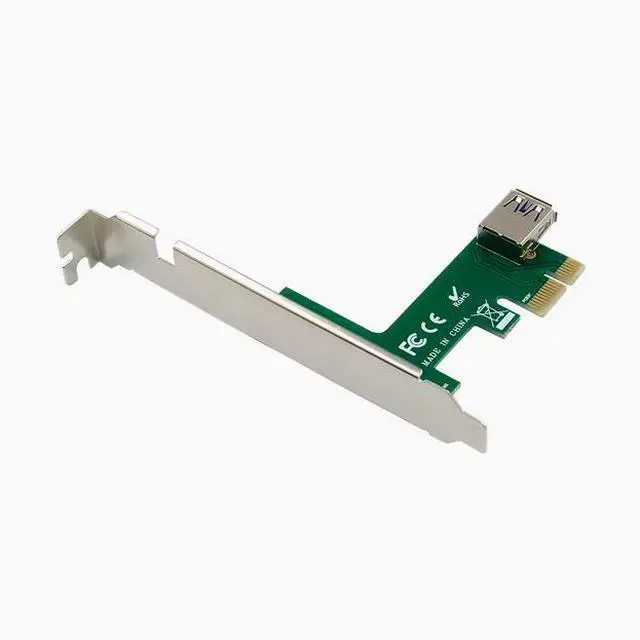

ASM1083 PCI-E X1 to 1XPCI bridge conversion card Split PCI card slot drive free
- SB-EP1083A-1P PCIExpress-to-PCI split bridge converter card that allows PCI bus to be connected with high performance PClExpress
- Use the network together. SB-EP1083A-1P, PCIExpressx1 to 32-bit PCI bridge, enables users to set up legacy parallel buses
- prepare
- The ASM1083 is a PCIExpress-to-PCl forward bridge that is fully PCI-SIGPCIExpre compliant for connecting to the serial PClExpress interface.
- ss-to-PCI bridge Specification 1.0.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Type: PCleto PCl Converter Card (split type)
Main chipset: ASM1083
Bus type: PCI
Expressx1 (1xLane virtual channel)
Socket interface: 1xPCI32bit 33/66MHz (split type)
1 XUSB 3.0. 0 Port
1x15Pin SATA interface
PCI card slot: 3.3V /1A, 3.3V /100mA,
5V/ and 12V/500mA (adjustable)
Features: No additional power supply is required (in special cases, SATA power interface is available on the board)
No drive, plug and play
Main chipset: ASM1083
Bus type: PCI
Expressx1 (1xLane virtual channel)
Socket interface: 1xPCI32bit 33/66MHz (split type)
1 XUSB 3.0. 0 Port
1x15Pin SATA interface
PCI card slot: 3.3V /1A, 3.3V /100mA,
5V/ and 12V/500mA (adjustable)
Features: No additional power supply is required (in special cases, SATA power interface is available on the board)
No drive, plug and play
