NRF24L01 PA LNA Wireless Module 1100 Meters Long Distance Wireless Module Professional

NRF24L01 PA LNA Wireless Module 1100 Meters Long Distance NRF24L01 PA LNA Module with Antenna for Arduino
Feature:


1. Extended Range of 1100
Meters: This wireless module provides an impressive range of up to 1100 meters, allowing for reliable communication over long distances. Stay connected even in challenging environments.
2. PA and
LNA Components: The module includes a Power Amplifier (PA) and Low Noise Amplifier (LNA) in the form of the rfx2401c, enhancing signal strength and minimizing noise for improved signal quality and stability.
3. SPI Interface for
Easy Configuration: With a 4-pin serial peripheral interface (SPI), each module can be easily configured. Access configuration registers through the SPI connection, enabling convenient customization of parameters such as frequency channels, output power, and data rates (250kbps, 1Mbps, and 2Mbps).


4. Wide Voltage Input Range and
Onboard Voltage Regulator: The onboard voltage regulator accepts power supply voltages ranging from 1.9V to 3.6V. This wide tolerance allows for direct connection to SPI pins on platforms like for Arduino, providing flexibility and ease of use.


5. Internal Filtering for
RF Compliance: The module incorporates internal filtering to meet high-profit margins and comply with RF management standards. Experience improved signal integrity and efficiency while ensuring regulatory compliance.
Specification:
Working range: 1100 meters
Plate size (with pin): approximately 40.7 x 15.5 x 12.2 mm/ 1.6 x 0.61 x 0.48 inch
Antenna size: approximately 87x 9.5 mm/ 3.43 x 0.37 inch
Including board level support components and rfx2401c are PA (power amplifier) and Low Noise Amplifier
A host can be configured with nRF24L01+4-pin serial peripheral interface (SPI).
The configuration register can be accessed through an SPI connection.
The configurable parameters include frequency channel (125 optional channels), output power, and
data rate (data rates: 250kbps, 1Mbps, and 2Mbps).
The on-chip voltage regulator accepts a power supply voltage from 1.9 to 3.6V.
V tolerant input, allowing SPI pins to be directly connected to for Arduino.
Internal filtering leads to high profit margins that meet RF management standards.
The radio uses Gaussian Frequency Shift Keying (GFSK) modulation and Fast Automatic Gain Control (AGC).
Including an interrupt (IRQ) pin that can be used to wake up the host microcontroller (such as for Arduino) and provide high-power conservation transmission from the sleep module to the battery device.
The ability to automatically respond and retransmit
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

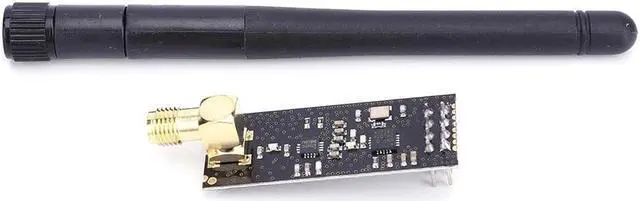

1 x Wireless Module
1 x Antenna
