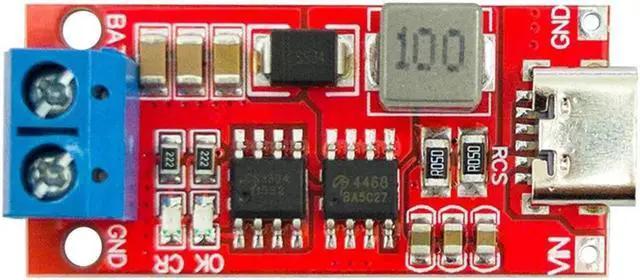

4S Type-C To 16.8V Boost Polymer Li-Ion Charger Module DC 3-6V Step Up Battery Converter Module Power Supply(4S 2A)

DC 3-6V Boost Polymer Li-Ion Charger Module 2S 3S 4S Type-C To 8.4V 12.6V 16.8V 18650 Lithium Battery Charger Board Power Supply
Features:
1.
Multiple Options: The boost lithium battery charging module offers a wide range of options for customers to choose from, catering to their different needs and requirements.
2.
Wide Application: With its versatile design, this boost polymer li-ion charger module can be used for various purposes, including charging 18650 lithium batteries or LiPo polymer lithium-ion batteries.
3.
High Safety Performance: The li-ion charger module comes with high safety features, such as overvoltage protection, ensuring the safety of customers and their devices.

4. Easy to
Use: This step up boost battrey converter module is simple and easy to operate, allowing customers to charge their batteries effectively without any hassle.
2.
LED Indicator Light: The LED indicator light shows the charging status, making it convenient and easy for customers to monitor the charging process.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Specification:
2 strings 1A/2 strings 2A/2 strings 4A/3 strings 1A/3 strings 2A/3 strings 4A/4 strings 1A/4 strings 2A/4 strings 4A (optional)
Product Description:
2S 3S 4S Type-C to 8.4V 12.6V 16.8V Step-Up LiPo Polymer Li-ion Charger 7.4V 11.1V 14.8V 18650 Lithium Battery
Features:
1: Various choices, customers can choose what they need according to different needs, 2: Wide range of uses, 3: High safety performance, 4: Easy to understand and easy to operate, 5: Battery overvoltage protection
scope:
2-Cell (2S) 8.4V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A (1A Version); 2A (2A Version); 4A (4A Version)
Charging voltage: 8.4V
Charging current: 0.55A (1A Version); 1.1A (2A Version); 2.2A (4A Version)
3-Cell (3S) 12.6V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A (1A Version); 2A (2A Version); 4A (4A Version)
Charging voltage: 12.6V
Charging current: 0.37A (1A Version); 0.74A (2A Version); 1.48A (4A Version)
4-Cell (4S) 16.8V version:
Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A (1A Version); 2A (2A Version); 4A (4A Version)
Charging voltage: 16.8V
Charging current: 0.28A (1A Version); 0.56A (2A Version); 1.12A (4A Version)
Battery Overvoltage Protection
LED indicator: "CR" LED is charging status indicator
"OK" LED fully charged or constant voltage mode;
Working environment temperature -40C to +85C
Product size: 43*21*14mm/ 1.69 * 0.82 * 0.55 in
Note:
Due to the different monitor and light
