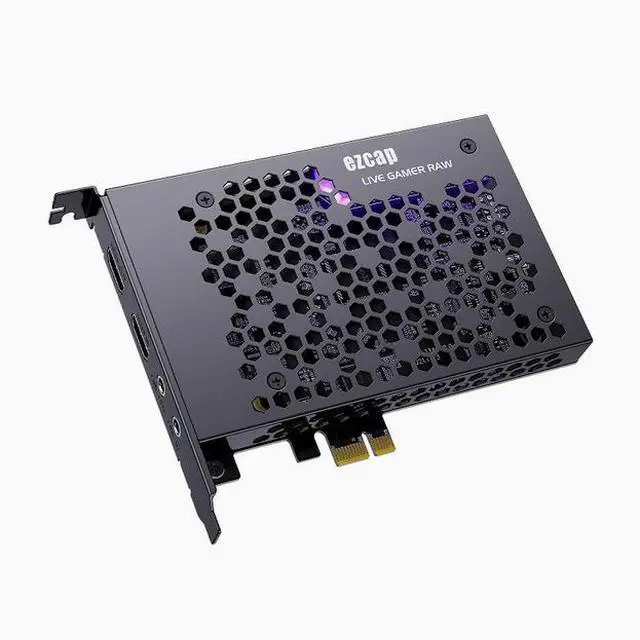

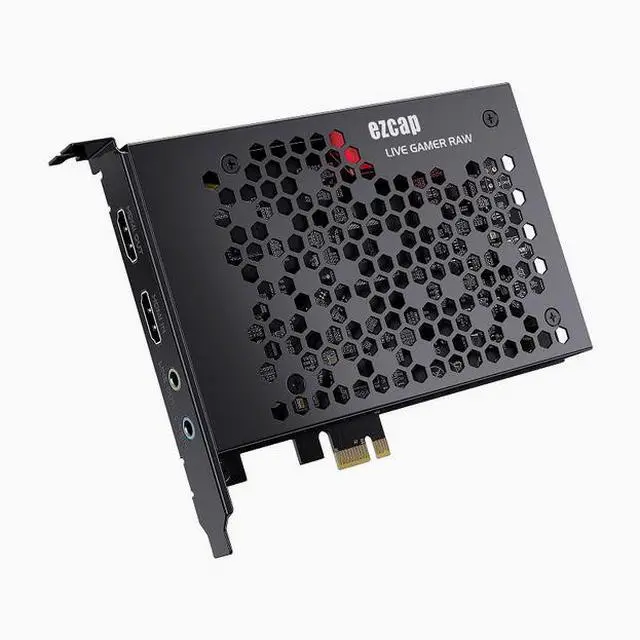

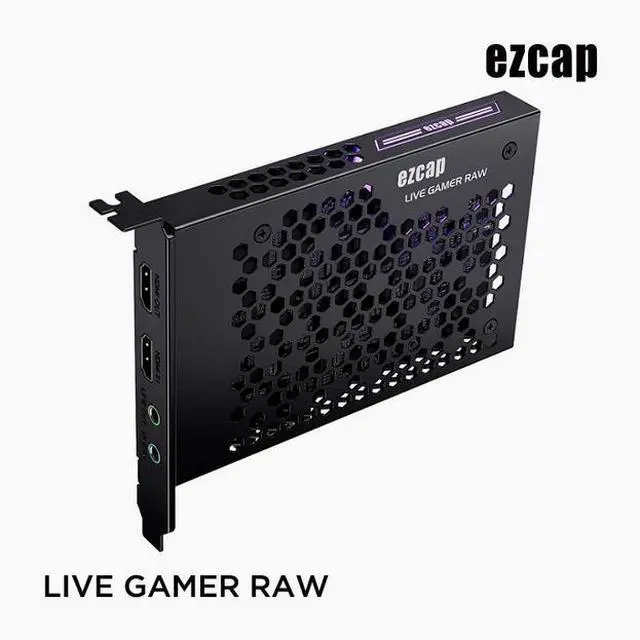

ezcap324B high-definition HDMI video capture card for live streaming on PS5, Switch and PC games on Douyu
Limited time offer, ends 01/11 By EnYZME
- ezcap324B Live Gamer RAW 4K game capture live streaming card
- LIVE GAMER RAW PCle- The choice of professional gamers
- The ezcap LIVE GAMER PCle collection card is designed for professional gamers. Compared with USB capture cards, its advantages are self-evident. Install it firmly, fix it in the PCIE slot and secure the acquisition card to the case tightly with screws. Super speed and bandwidth, up to 5000Gbps/S. Provide a stable and abundant current.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification parameters

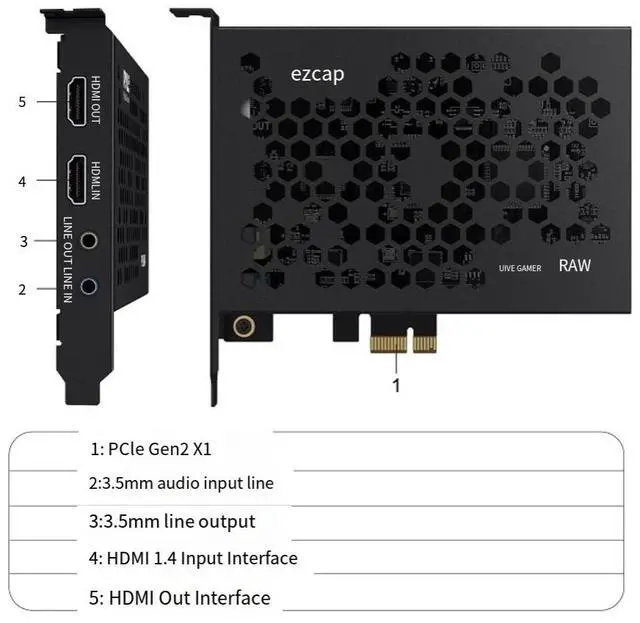

Host interface: PCle Gen2 X1
Video input/output: HDMI 1.4
Audio input: HDMI, line input ( 3.5 mm TRS)
Audio output: HDMI line output ( 3.5 mm TRS)
Maximum loop-out: 2160p30, 1440p60, 1080p120
Maximum recording capacity: 1080p120, 2160p30, 1440p60.
Supported resolutions: 2160p, 1440p, 1080p, 720p
Output video format: YUY2, NV12, RGB. Recording resolution and maximum frame rate: 3840x2160-NV12/30; 2560x1440-NV12/60, YUY/50; 1920x1080-NV12/120, YUY/60, XRGB/30; 1280x720-NV12/60, YUY/60, XRGB/60. -

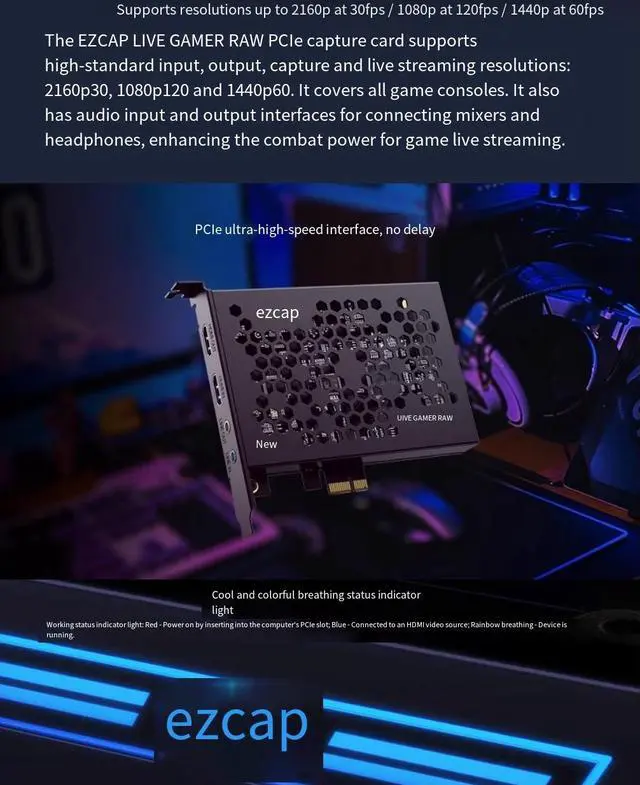

Working indicator light: Red - Powered on, blue -HDMI signal input, slow seven-color breathing - Equipment running.
- System configuration requirements:
Windows 10 x64, PCI-E X1 slot
Recording at 4Kp30 or 1080p120: ntel Core i5-6XXX/AMD, Ryzen 3 XXX, NVIDIA GTX 1060 /AMD RX57 0.8GB RAM.
1080p60 recording: Intel Core i7-3770, NVIDIA GeForce GTX 650 /AMD Radeon R7 250X, 4 GB RAM. Mac Pro Mac Os High Sierra 10.15 or higher, PCI-E X1 slot
- Packaging content: ezcap324B LIVE GAMER RAW 4K Game Capture Live Streaming Card, User Guide
- Dimensions: 151 x 121 x22 mm
Host interface: PCle Gen2 X1
Video input/output: HDMI 1.4
Audio input: HDMI, line input ( 3.5 mm TRS)
Audio output: HDMI line output ( 3.5 mm TRS)
Maximum loop-out: 2160p30, 1440p60, 1080p120
Maximum recording capacity: 1080p120, 2160p30, 1440p60.
Supported resolutions: 2160p, 1440p, 1080p, 720p
Output video format: YUY2, NV12, RGB. Recording resolution and maximum frame rate: 3840x2160-NV12/30; 2560x1440-NV12/60, YUY/50; 1920x1080-NV12/120, YUY/60, XRGB/30; 1280x720-NV12/60, YUY/60, XRGB/60. -
Working indicator light: Red - Powered on, blue -HDMI signal input, slow seven-color breathing - Equipment running.
- System configuration requirements:
Windows 10 x64, PCI-E X1 slot
Recording at 4Kp30 or 1080p120: ntel Core i5-6XXX/AMD, Ryzen 3 XXX, NVIDIA GTX 1060 /AMD RX57 0.8GB RAM.
1080p60 recording: Intel Core i7-3770, NVIDIA GeForce GTX 650 /AMD Radeon R7 250X, 4 GB RAM. Mac Pro Mac Os High Sierra 10.15 or higher, PCI-E X1 slot
- Packaging content: ezcap324B LIVE GAMER RAW 4K Game Capture Live Streaming Card, User Guide
- Dimensions: 151 x 121 x22 mm
