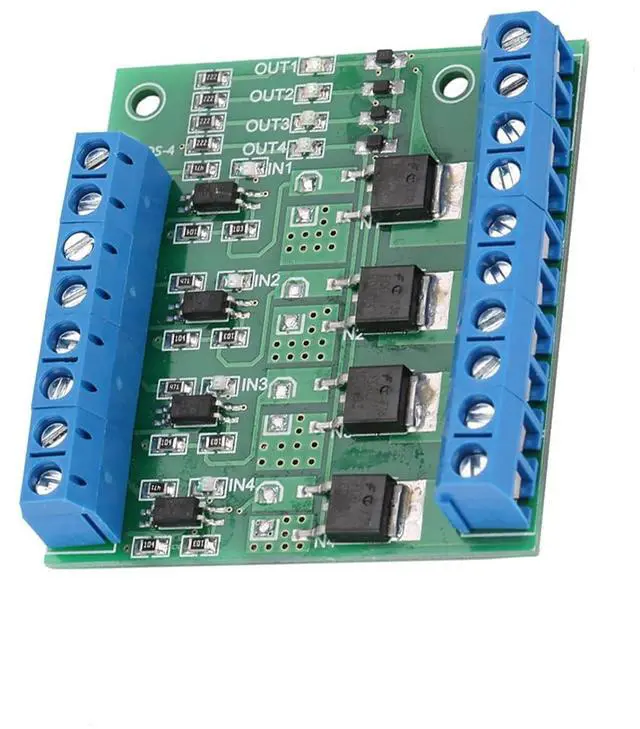

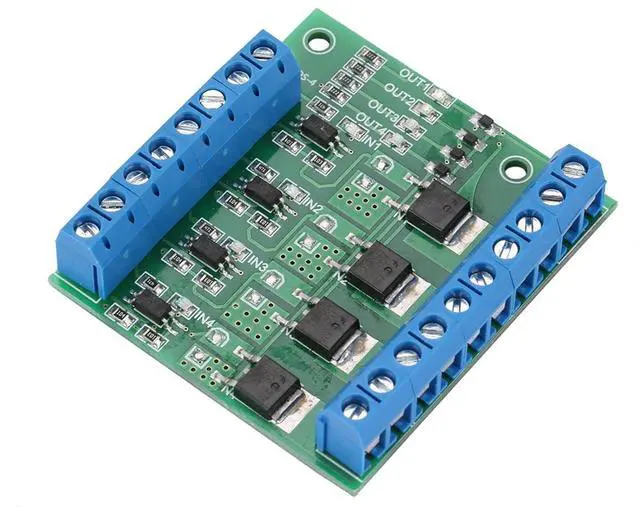

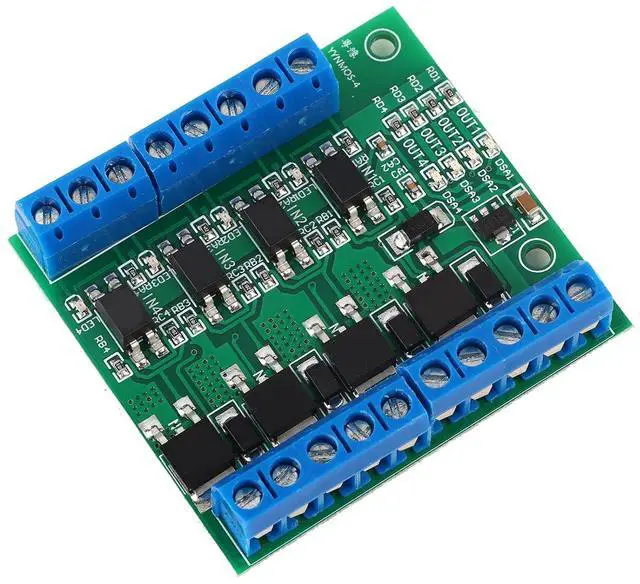

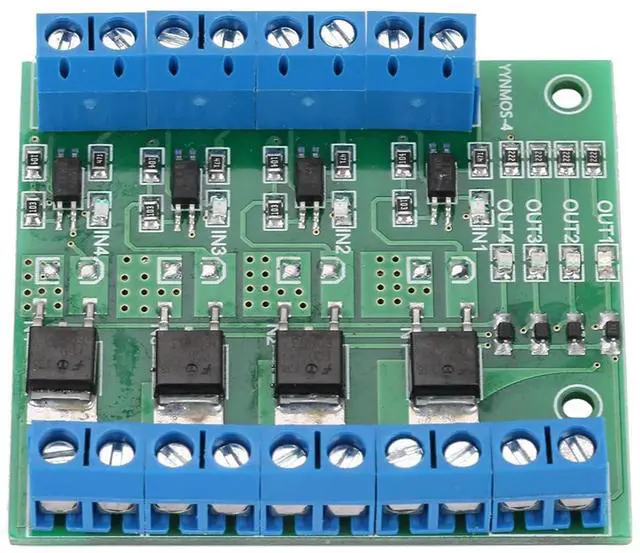

PWM 4-Channel PLC Amplifier Circuit Board MOS FET Module Driver 3-20V to 3.7-27VDC 10A
Limited time offer, ends 01/09 By EnYZME
- 3~20V PWM ; PWM frequency: 0~1kHz; Output capacity: DC 3.7V~27V, 10A per channel current
- There are input and output indicators on the PLC amplifier circuit board. The input and output are completely isolated, featuring strong anti-interference capability and
- ultra small optocoupler is used for strong anti-interference ability and
- The output can control high-power devices, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.
- On board screw terminal block for quick wiring and easy installation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Model: YYNMOS-4
Weight: 27g (approx. )

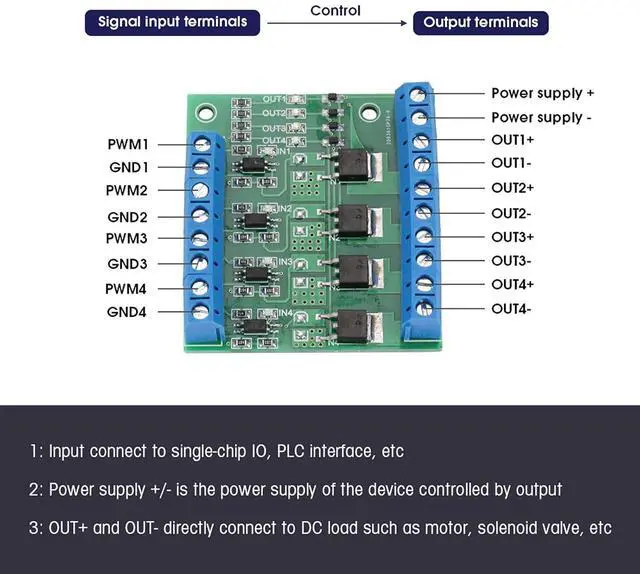

Wiring terminal description:
1.
DC+: DC power supply positive
2.
DC-: DC power supply negative
3.
PWM: Signal input terminal (connected to the single-chip IO port, PLC interface, DC power supply, etc. )
4.
GND: Signal negative terminal
5.
OUT+: Output positive terminal (connected to the device positive)
6.
OUT-: Output negative terminal (connected to the device negative)
Package list:
1 * PLC Amplifier Circuit Board
Model: YYNMOS-4
Weight: 27g (approx. )
Wiring terminal description:
1.
DC+: DC power supply positive
2.
DC-: DC power supply negative
3.
PWM: Signal input terminal (connected to the single-chip IO port, PLC interface, DC power supply, etc. )
4.
GND: Signal negative terminal
5.
OUT+: Output positive terminal (connected to the device positive)
6.
OUT-: Output negative terminal (connected to the device negative)
Package list:
1 * PLC Amplifier Circuit Board
