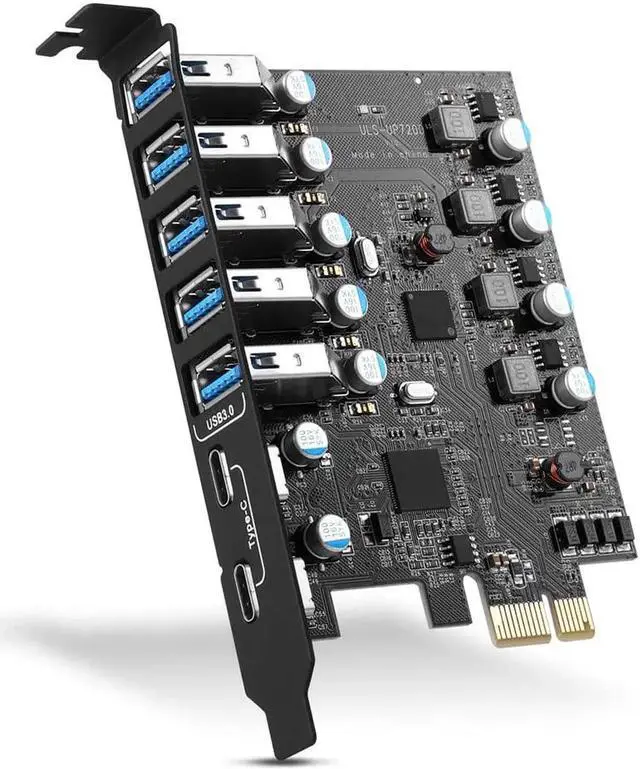

PCI-E to USB 3.0 7-Port(2X USB-C - 5X USB-A ) Expansion Card ,PCI Express USB Add in Card , Internal USB3 Hub Converter for Desktop PC Host Card Support Windows 10/8/7/XP and MAC OS 10.8.2 Above

Product advantages:

1. Add 7 ports on the desktop through the PCI Express slot,-each port has a maximum data transmission speed of 5Gbps to achieve fast connection.

2. Users do not need to plug in any additional power cords from the power supply.

3. The internal USB card provided from the motherboard through the PCI Express slot-to ensure a stable connection and improve data transmission speed. Will not lose the connection problem like an external USB Hub.

Prompt:

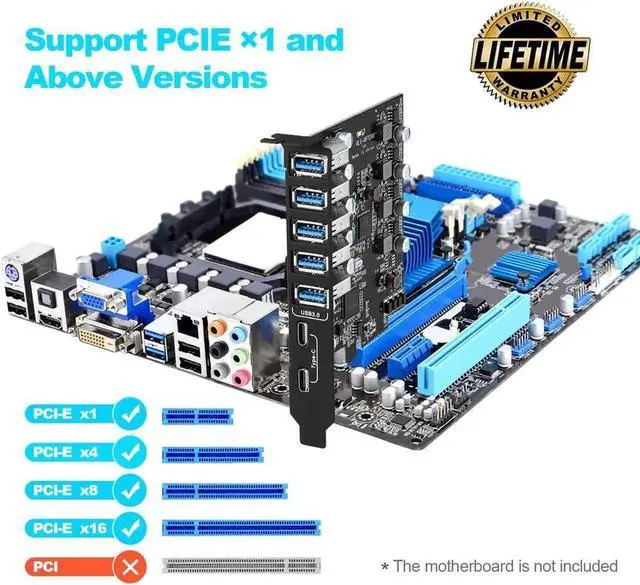

1. An available X4, X8 or X16 PCI Express slot is required inside the computer case.

2. The system requirements are Microsoft Windows XP/7/8/10 operating system and Mac OS 10.8.2 above.

3. It is not compatible with the old version of PCI.

4.Windows 7 / XP system needs to install the driver from the attached CD, or download the driver according to the content of the user manual.

5.This pci express card only supports data transmission, not video signal transmission (DP,HDMI).

6.USB-A port power supply: 5V-0.9A; USB-C port power supply: 5V-3A, used for low-power USB devices (not supported for monitors).

1. NOTE: The USB A port is vertical. The vertical height is 0.72 inches. Be sure to check the height of the expansion slot on the back of the computer host before choosing, to avoid the narrow expansion slot of the host computer, unable to insert the USB cable or flash memory into the port.

Safe and Stable

Explosion-proof capacitors are made of polymer dielectric materials,Each interface is equipped with a voltage-regulating capacitor.Can provide good temperature control during operation and ensure stable power supply for each interface.

Advanced Dual Chip

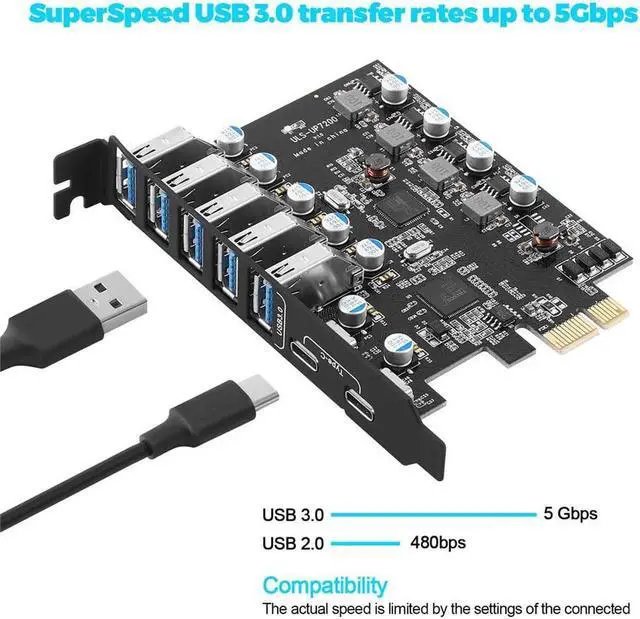

Uses Fresco Logic 1100 +VL820 dual chips .It better provides stable 5Gbps high-speed transmission for the PCI expansion card USB 3.0 interface, which is 70% faster than the traditional UASP USB 3.0.

Large Scale Expansion

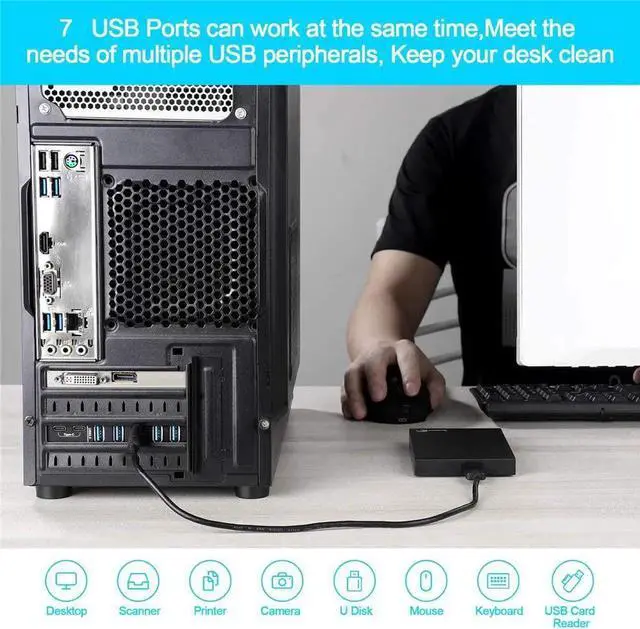

Seven external USB ports can be provided for computer systems that support PCI Express to connect other external U disks, printers, keyboards, mice, webcams, game controllers, USB fans, etc. to the computer case.

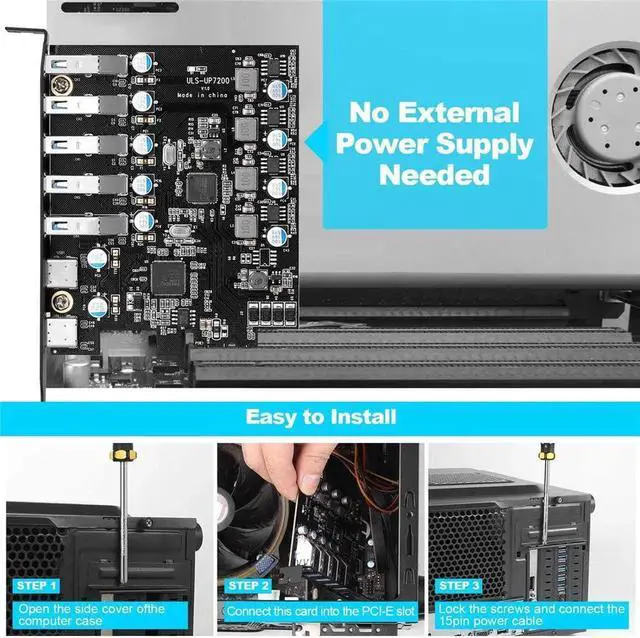

Step 1

Turn off the computer power, then unplug the power plug from the power outlet and remove the cover from the computer case.

Step 2

Find the corresponding PCI-E card slot.

Step 3

Insert the card into a free PCI Express slot.

Step 4

First insert the U disk into the usb slot for positioning.Then, use a screwdriver to firmly tighten the screws on the side of the bracket, put the computer cover back on the computer, and insert the plug into the socket.

NOTE:

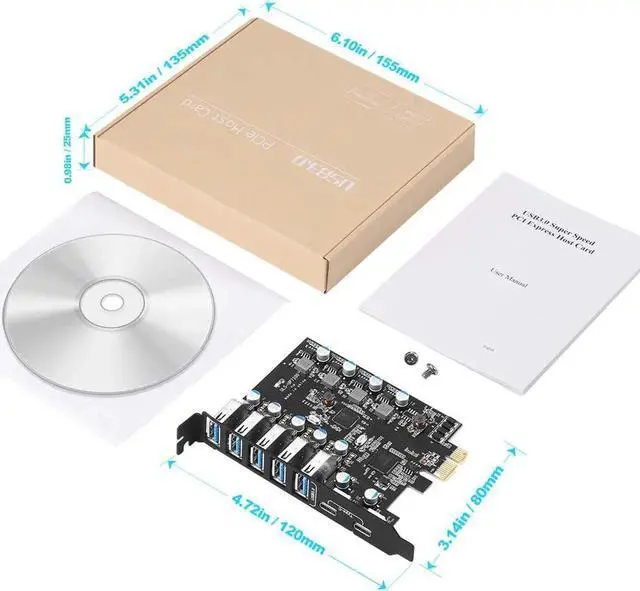

1.Not equipped with Low-profile bracket. It doesn't apply to small computers and server chassis.(The overall size of the PCI-E card is 4.72x3.14x0.72 in)

2. After reviewing the product details,Please check the port size of the computer chassis baffle to avoid poor installation and excessively small PCI-E expansion cards.

3.For repairs, please contact our online support.

Package Contents:

1 * USB 3.0 Expansion Card

1 * Screw

1 * CD Drive

1 *User Manual

USB 3.1 Type-C a super fast, convenient and powerful data transfer solution.

Features:

Plug & play and hot swapping capability.

Two USB 3.1 Type-C female connectors available.

Stable and reliable ASMEDIA Chipset ASM3142.

Bus-powered mode and no external power required for most of peripherals.

Low-profile bracket available for small computer & server case, like 1U & 2U.

Specifications:

PCI-E 4X connector fits PCI-E 4X, 8X or 16X slot.

Supports 10Gbps PCI-E bus with full duplex channel.

Support Windows 7 / 8 /10 & Linux Kernal.

Support 5V Max 2A power output to each USB 3.1 device

Built-in over current protection and short circuit protection on each USB port Support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), and FullSpeed (12 Mbps) (Note: The actual transmission speed is limited by the setting of the device connected.)

Support USB 3.1 devices,backwards compatible with USB 3.0, 2.0

Compliant with PCI-Express specification revision 2.0

Support PCIe 2.0, or PCIe 3.0 motherboard, Compliant with PCI Express Base 3.0

Specification, Compliant with Universal Serial Bus 3.1 Specification.

Package Includes:

1 x PCI-E 4x Express to USB 3.1 Type C Dual Port Expansion Card

1x Low profile bracket

1x CD driver

Please note

It's PCI-E 4X card and does not support PCI-E 1X slot.

Win7 needs to install the driver through the CD to run.
