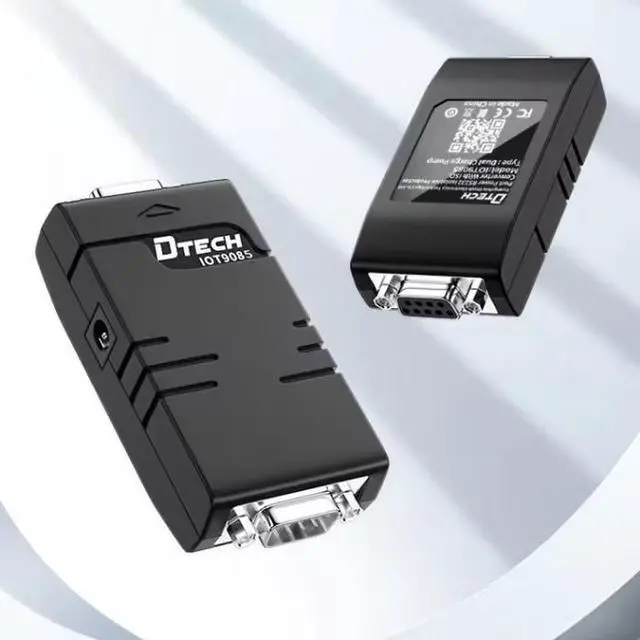

DTECH IOT9085 Industrial 3-Wire Passive RS232 Photoelectric Isolator - Male to Female, 256Kbps, 2500Vrms Protection
Limited time offer, ends 01/11 By EnYZME

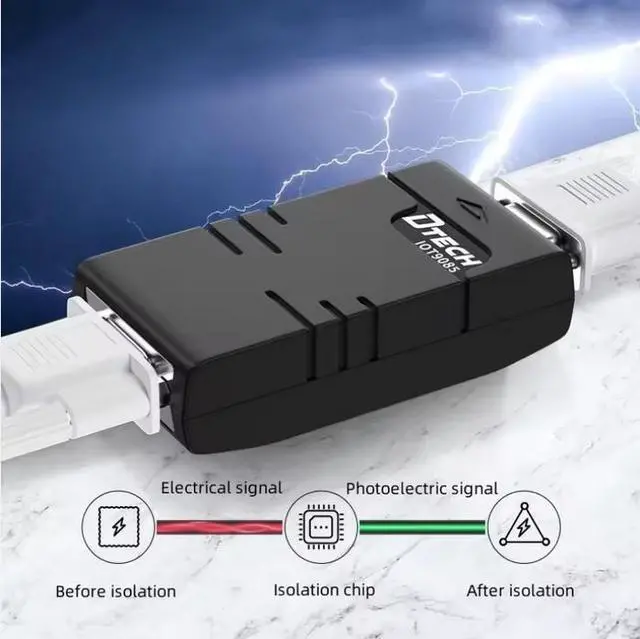

- Advanced Photoelectric Isolation

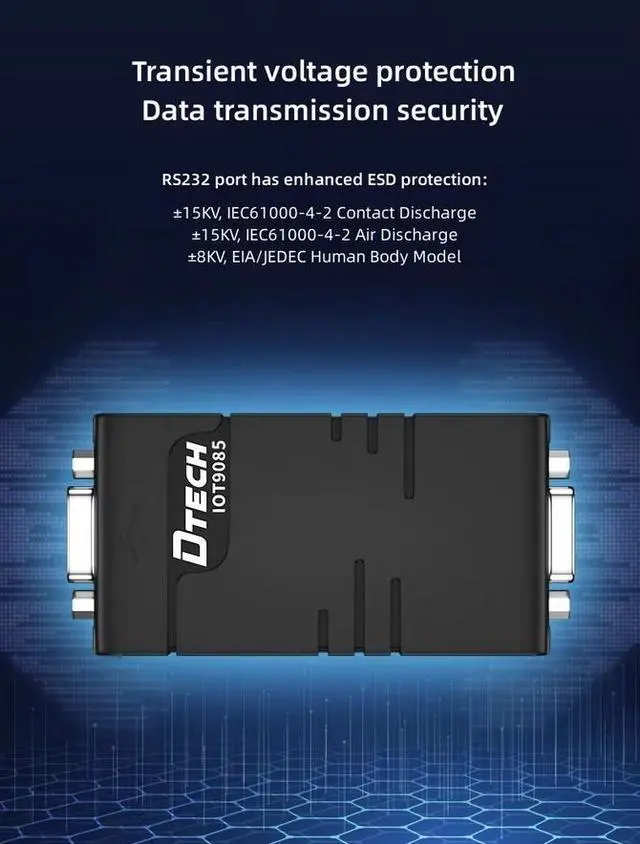

- Provides 2500Vrms electrical isolation protection, effectively preventing ground loops, lightning surges, and power fluctuations from damaging sensitive equipment.
- True Passive Operation
- Requires no external power supply, deriving operational energy directly from the RS232 communication signals for simplified installation.

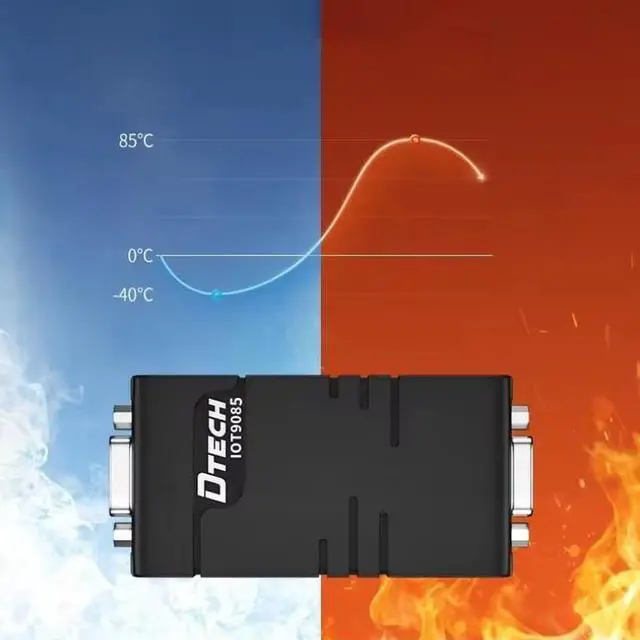

- Industrial Temperature Tolerance
- Maintains stable performance across -40 to 85 operating range, suitable for harsh industrial and outdoor environments.
- Compact 3-Wire Design
- Supports TXD, RXD, and GND signals in a compact form factor, ideal for space-constrained installations while maintaining essential communication functions.
- Plug-and-Play Connectivity
- Standard DB9 male to female connectors enable direct inline installation between existing RS232 devices without cable modifications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Model: IOT9085
- Isolation Voltage: 2500Vrms
- Connectors: DB9 Male to DB9 Female

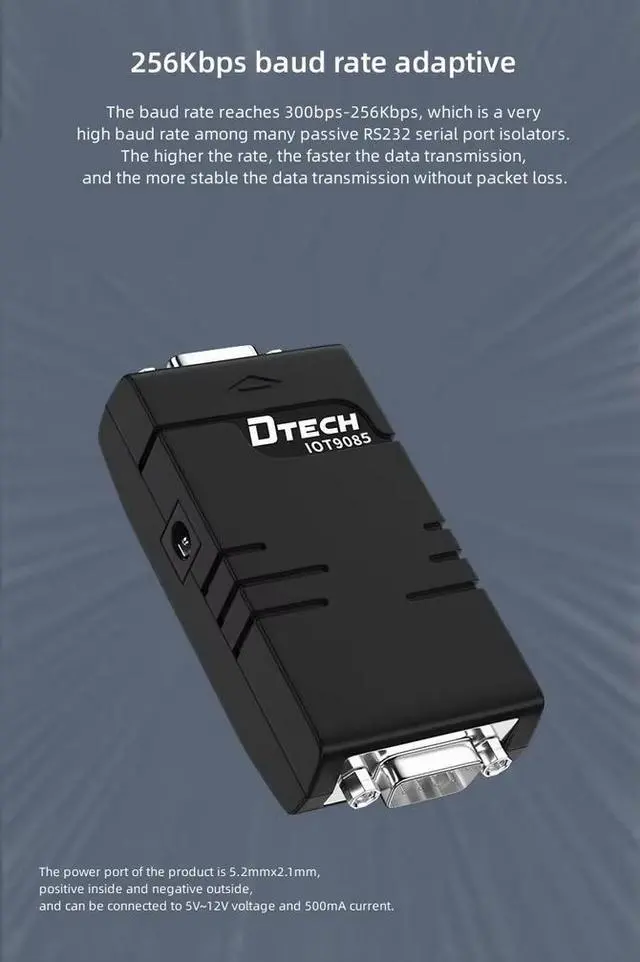

- Transmission Rate: 300bps - 256Kbps
- Maximum Distance: 15 meters
- Power Supply: Signal-Powered (No External Power)
- Operating Temperature: -40 to 85
- Installation: Direct inline connection
- Housing: Industrial-grade plastic
Applications:
- Industrial control system protection
- Medical equipment isolation
- Laboratory instrument connectivity
- POS system surge protection
- Communication equipment maintenance
This compact photoelectric isolator provides essential protection for RS232 communication lines in critical applications where electrical noise, ground potential differences, or voltage surges could disrupt data transmission or damage connected equipment.
