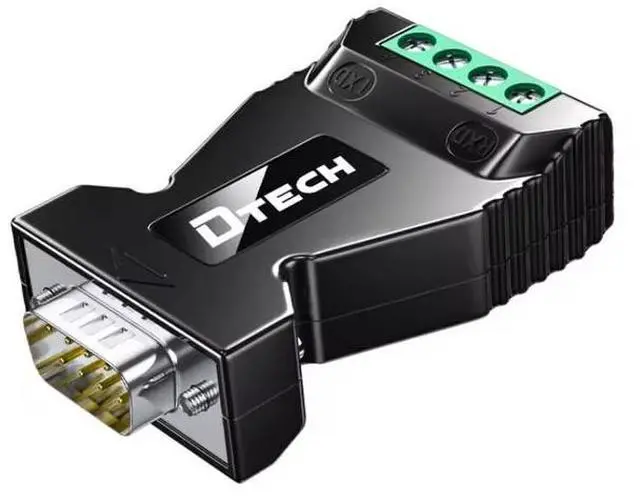

DTECH DT-9001B Industrial RS232 to RS485 Converter - Plug & Play DB9 Male Serial Adapte
- Extended Communication Range
- Enables long-distance data transmission up to 1200 meters via RS485, overcoming the 15-meter limitation of standard RS232 connections.
- True Plug-and-Play Operation

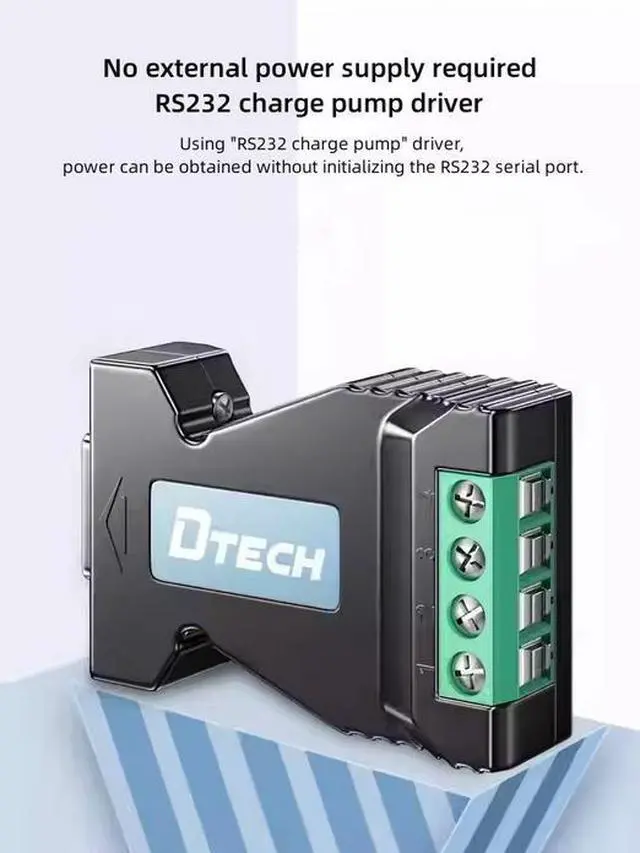

- Requires no external power supply or software configuration, automatically deriving power from the RS232 data and control signals.
- Industrial Temperature Resilience
- Operating temperature range of -20 to 70 ensures reliable performance in demanding factory and outdoor environments.
- Compact Direct-Connect Design
- Standard DB9 male connector interfaces directly with equipment ports, eliminating the need for additional cables or adapters.
- Bidirectional Protocol Conversion
- Provides seamless conversion between RS232 and RS485 standards, supporting full-duplex data communication.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Model: DT-9001B
- Input Interface: DB9 Male RS232
- Output Interface: RS485 Terminal Block
- Transmission Rate: 300bps - 115.2Kbps
- RS485 Distance: Up to 1200 meters
- RS232 Distance: Up to 15 meters
- Power Supply: Signal-Powered (No External Power)
- Operating Temperature: -20 to 70
- Installation: Direct port connection

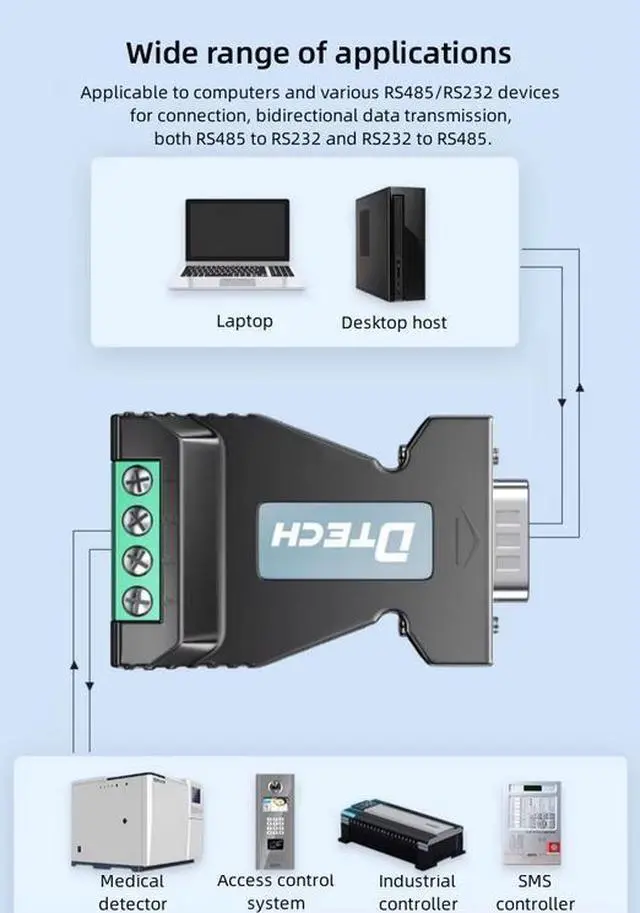

Applications:
- Industrial automation control systems
- Access control and security systems
- Building management systems
- Environmental monitoring equipment
- Instrumentation and data acquisition
This compact converter provides a cost-effective solution for extending the communication range of RS232 devices, making it ideal for industrial monitoring, control applications, and equipment integration where long-distance data transmission is required.
