Oculink SFF-8612 8611 to U.2 Kit M-Key to NVME PCIe SSD and NGFF to SATA Adapter for Mainboard

Oculink SFF-8612 8611 to U.2 Kit M-Key to NVME PCIe SSD and NGFF to SATA Adapter for Mainboard

Oculink 4x connectors are internal and external small form factor PCI-E connectors and cables optimized for the client and market.

Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA

The card not work for NVME M-key SSD to SATA host, Also can't work for NGFF B-key SD to oculink host.

It only can work for NVME M-key SSD to oculink or NGFF B-key SD to SATA.

Hyper Kit Storage controller,Ultra PCI-E Card (PCIe 3.0 x4),The card work for PCI-E SSD.(Not work for SAS or Slimeline SAS HD)

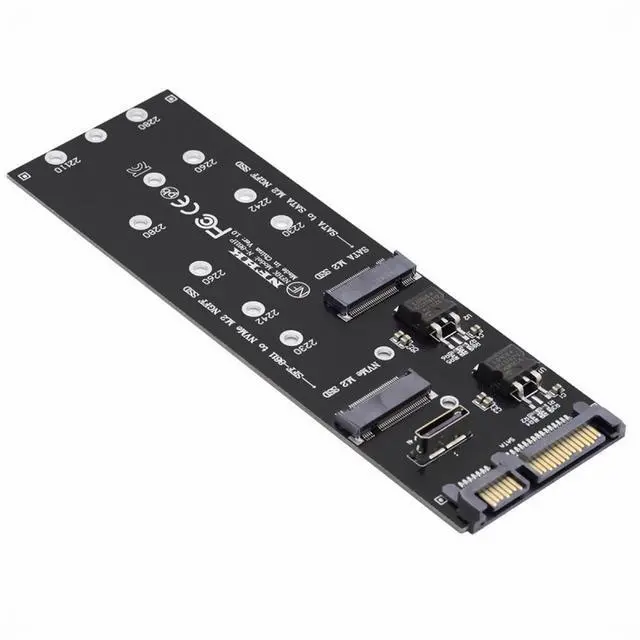

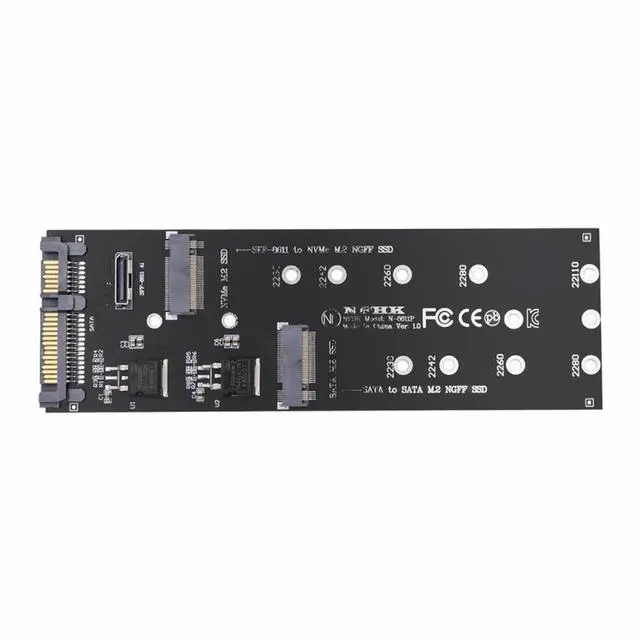

This U.2 M.2 converter enables two different usage applications.

1. One M.2 PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SFF-8611/8612 oculink interface.

2. One M.2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SATA 22pin interface.

3. It can't convert NVME to SATA, also can't covert NGFF/SATA to Oculink.
