JAENFONG PCI-E to USB 3.2 Gen 1 Card 5Gbps Dual USB-A Ports Expansion Card with 20PIN Front Panel Header USB Card,PCI Express Card with 15-Pin SATA Power Connector.

Product Description

With the popularity of USB 3.0, more and more computer cases offer a 19-pin USB3.0 port on the front of the case,

but the old motherboards do not support USB3.0 or do not have a 19PIN interface!

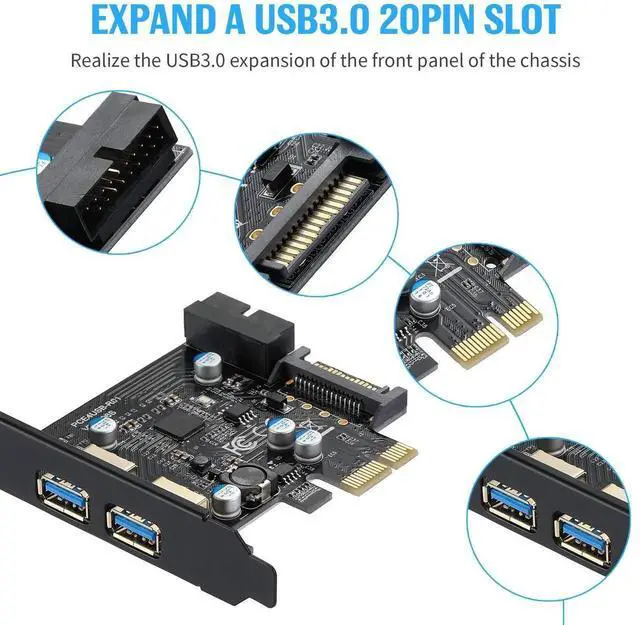

At this point, you can convert the PCI-E signal to the 19-pin USB3.0 port and 2 rear USB3.0 ports via the motherboard's PCI-E slot, and then convert the 19PIN of the panel to the Insert expansion card so that it offers the front super high-speed USB3.0 interface is very practical!

Specifications:

Compatible with the PCI Express specification version 2.0

Compatible with the USB3.0 SuperSpeed specification version 1.0

Note the xHCI specification version 1.0

Master chip: Renesas UPD720201 chipset

Applies to all PCI-E -Sockets

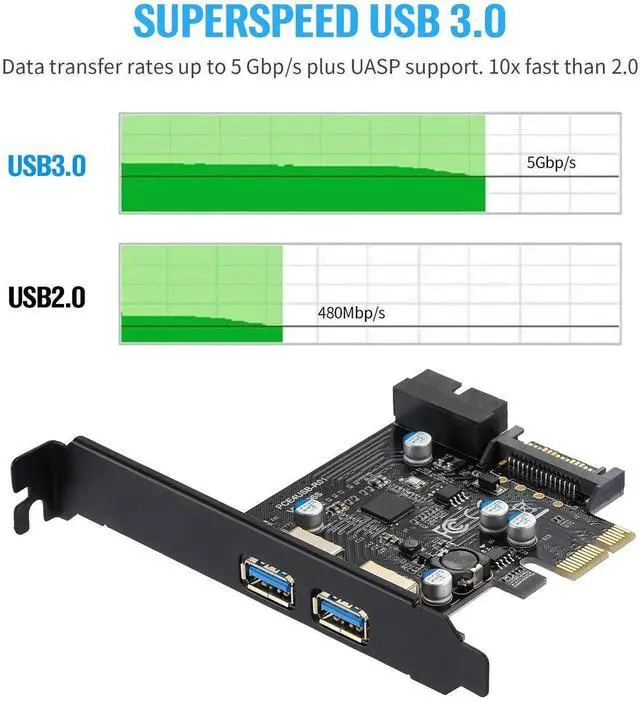

The highest transfer rate is up to 5 Gbit / s, which is much higher than 480 Mbit / s from USB 2.0, which is up to 10 times.

Backward compatible with USB2.0, USB1. 1, USB1.0

Transfer rate: 5000/480/12 / 1.5 Mbit / s

USB output: up to 5V 2A (increased current type)

Integrated SATA-extended power interface

Supports di e USB hot plug function

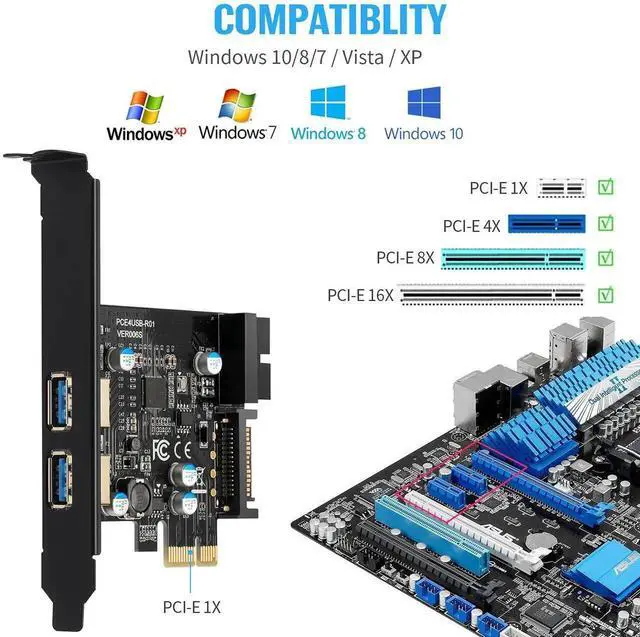

Support Windows XP / 2003 / Vista / win7 / win8 / win10

Hardware requirements:

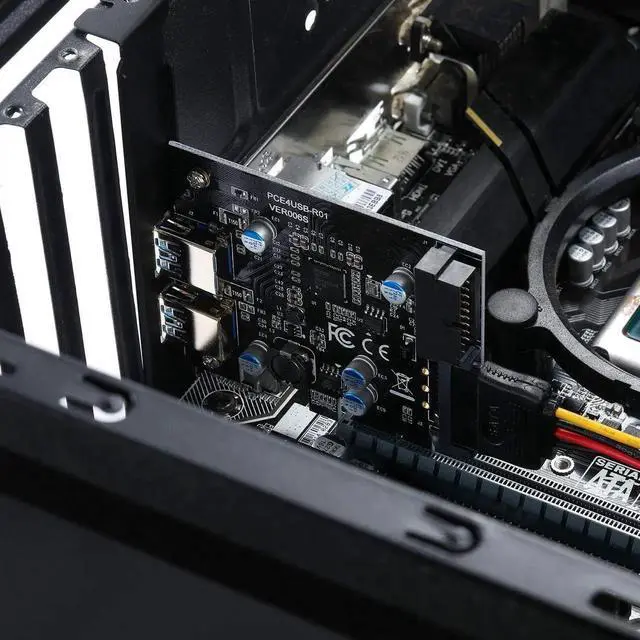

This product is a desktop PCI-E expansion card which requires a free PCI-E slot on the motherboard for installation and use.

Also determine if the slot is blocked by the graphics card.

The PCI slot cannot be installed and used. Never install the expansion card in the PCI slot.

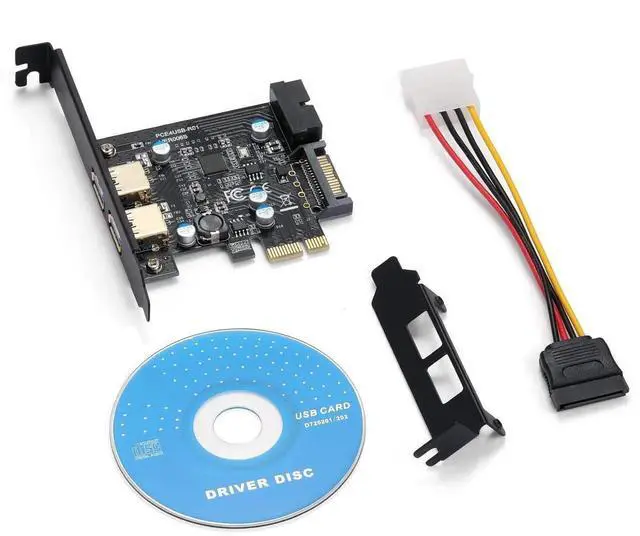

Packaging accessories:

A: USB3.0 expansion card * 1

B: Driver CD * 1

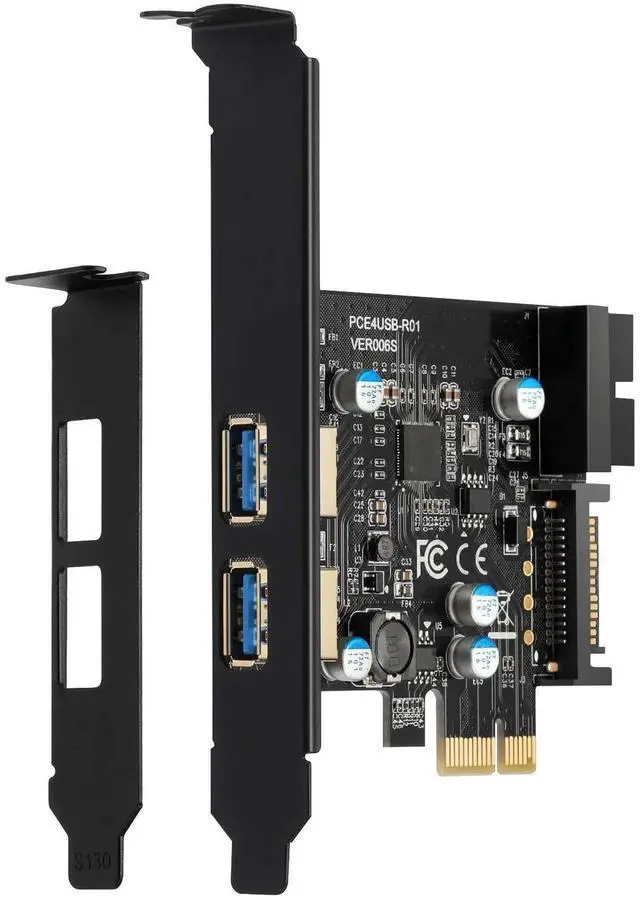

C: Low-profile bracket * 1

D: 4 pin Molex to SATA power cable * 1

Additional Features

1. [Stable and easy to use] The internal USB ports card is provided by the motherboard through the PCI Express 1X slot to ensure a stable connection and improve data transfer speed. Does not lose the connection problem like an external USB hub.
2. [Easy to install] Shut down the PC, disconnect the power supply, remove the PC case, slide the card into the PCIe socket and tighten the screws, and close the PC case cover, turn on the PC and install the driver. quick and easy installation, a simple solution to connect and use USB 3.0 devices on your standard desktop PC.
