JAENFONG 2.5GBase-T PCIe Network Adapter RTL8125B 2500/1000/100Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller Support PXE for Windows/Linux/MAC with Low Profile

PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet.

Product Feature.

It offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

Specification

ChipsetRTL8125B

Port number1* RJ45

StandardIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3azIEEE 802.3bz

Network media10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP

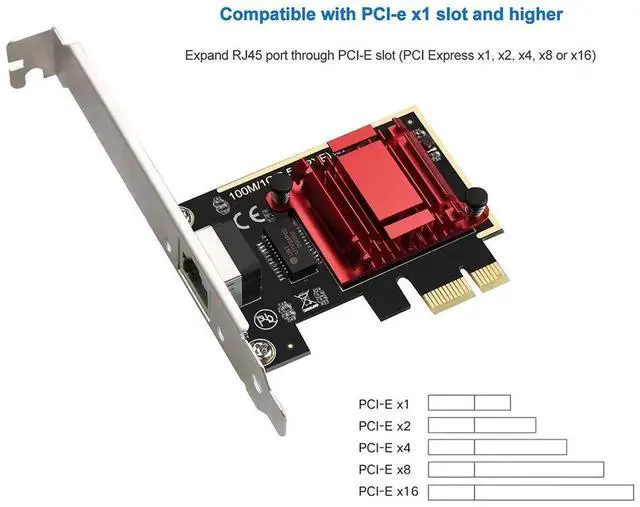

Data ratePCI Express 1x slot

Auto MDIXYES

Full Duplex SupportYES

LED Indicator100M/1G/2.5G Link/Act

Dimension71.5*50*1.6mm

Support OSWindows10(32/64), Win7 (32/64), Win8,8.1 (32/64)Windows Server 2012,2008LinuxMac OS

Support PXE function.

Support Wake on LAN

Support 2.5G and 1G Lite mode

Compatible with NBASE-T Alliance PHY Specification

Supports PCI Express 2.1

Supports 1-Lane 2.5G/5Gbps PCI Express Bus

Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab

Supports IEEE 802.1P Layer 2 Priority Encoding

Supports IEEE 802.1Q VLAN tagging

Supports IEEE802.3az(Energy Efficient Ethernet)

Supports IEEE802.3bz(2.5GBASE-T)

Supports Full Duplex flow control(IEEE 802 .3x)

Packing list

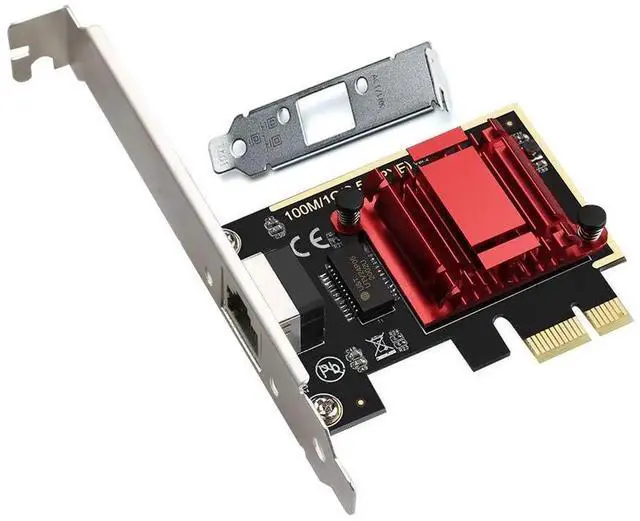

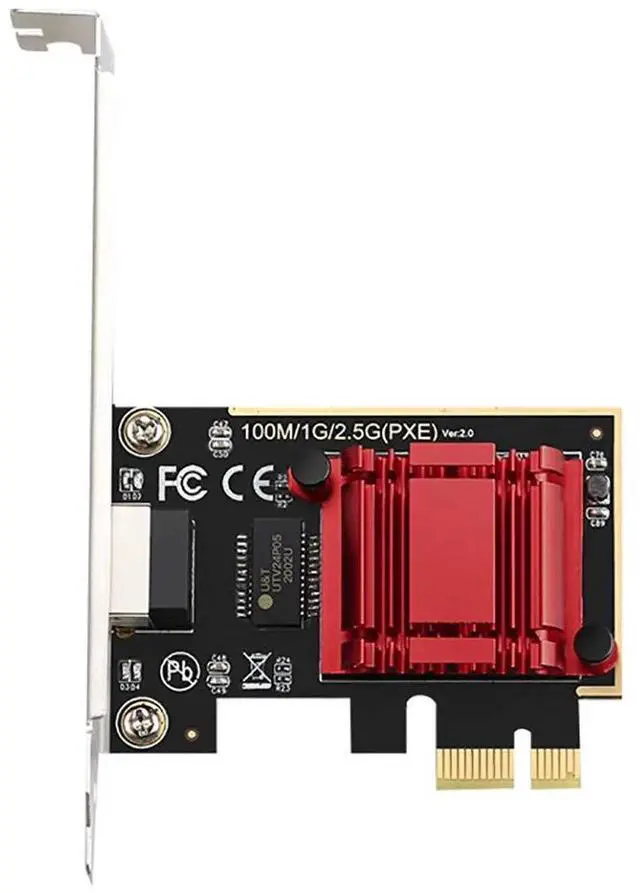

1xPCIE 2.5G LAN Card

1x Low profile Bracket
