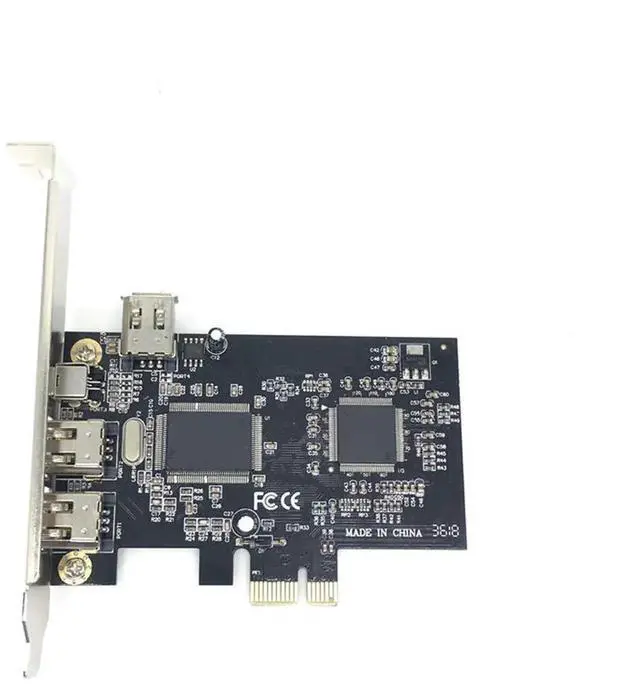

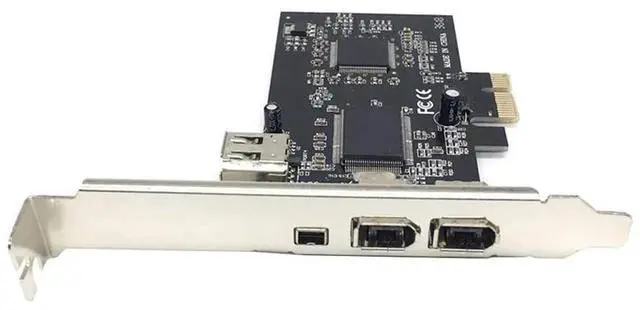

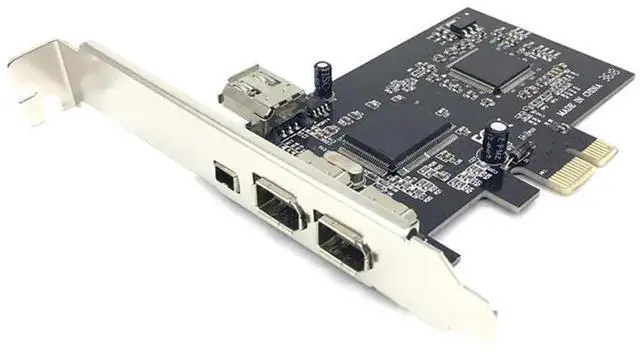

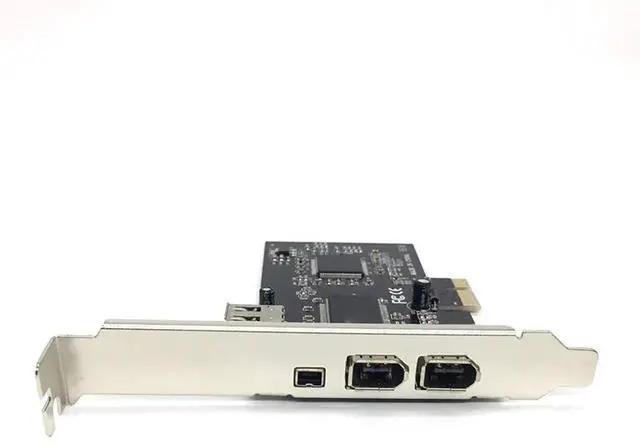

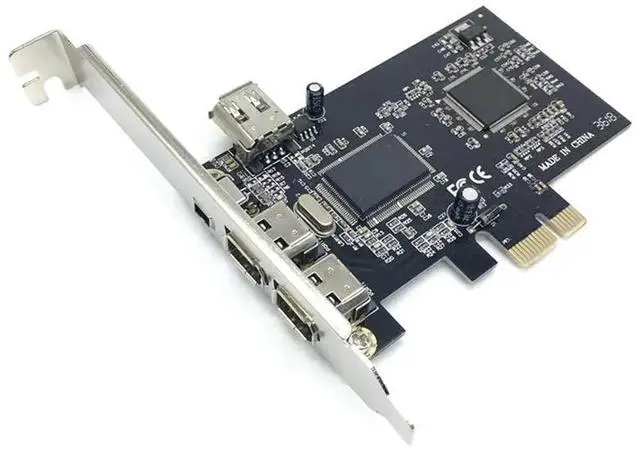

JAENFONG PCIe Combo 4 Ports (3+1) 1394A 1x 4 Pin 3X 6 Pin PCI Express Card Adapter Controller Card Extension Adapter PCI Express to IEEE 1394 for Firewire Desktop

Features:

Compatible with PCI Express Revision 1.1

Support for error reporting performance

Flexible programmable bus master break size and internal judgment control optimize bus utilization

Compatible with PCI-E bus power management instructions v1.1 and ACPI v2.0

Support for I2C EEPROM including 1394 hardware configuration

EEPROM EEPROM supporting EEPROM-less devices

The VT6307 series chips integrates a host controller with a PCI-Express interface to provide fast, flexible connectivity to computer systems with more peripherals and consumer electronics.

The IEEE 1394 Fast Serial Bus (commonly known as Firewire) is a PCI peer-to-peer interconnect system and is widely recognized as the primary interface for digital audio and video equipment. The IEEE 1394a configuration supports hot-swappable quick connections to printers, hard drives, multimedia devices, and consumer electronics such as game controllers and video cameras.

The VT6307 series host controller provides a performance serial connection to the IEEE 1394 and 1394a serial bus by performing the Link and Physical layers.

Compatible with IEEE1394-1995 Description 1.0

Compatible with IEEE 1394a P2000

Provide 8 isochronous transmit contexts

Provide 4 isochronous receive contexts

Support data transfer rate of 400/200/100Mbps

Ordinary DMA controller control mechanism and I/F design

Please note: The built-in 6-Pin IEEE 1394 female on metal bar can not work with the 9-Pin IEEE 1394 female on board simultaneously.

Specs:

Ports: 3x 1394a (6-pin), 1x 1394a (4-pin)

Maximum support: 1440*1080 camera

Weight: about 90g

Package:

1 x PCIE 1394a Controller Card

1 x Data Cable

1 x low profile bracket
