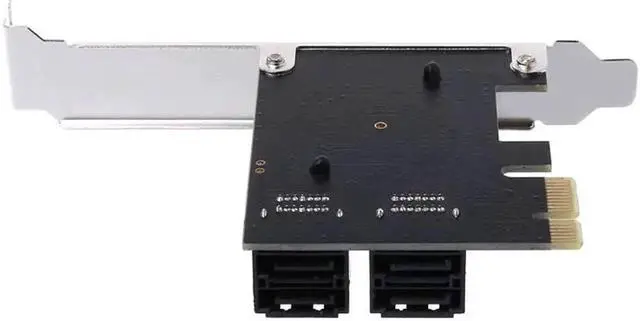

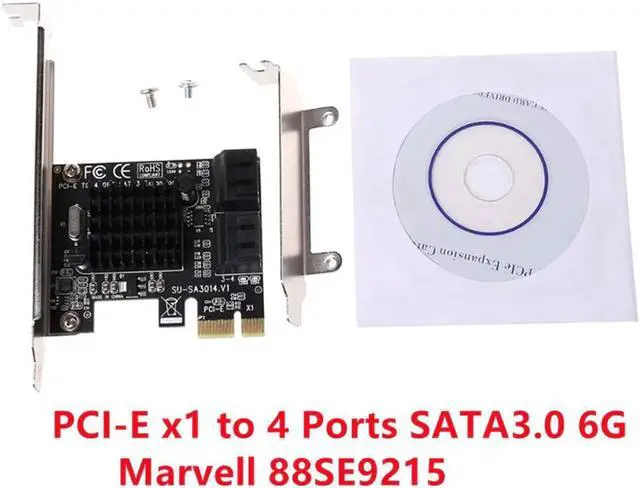

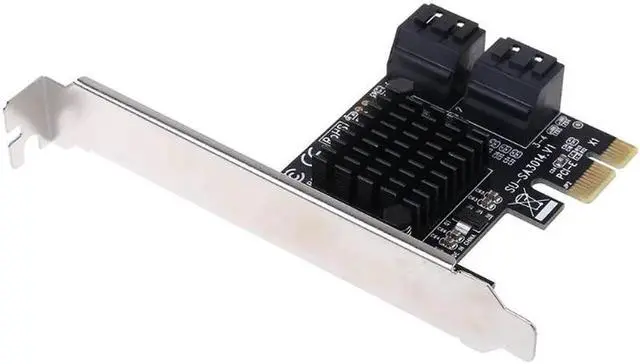

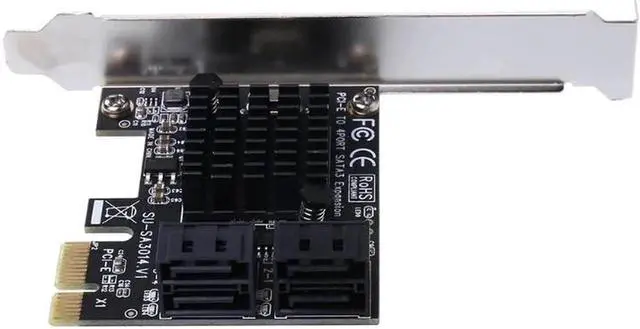

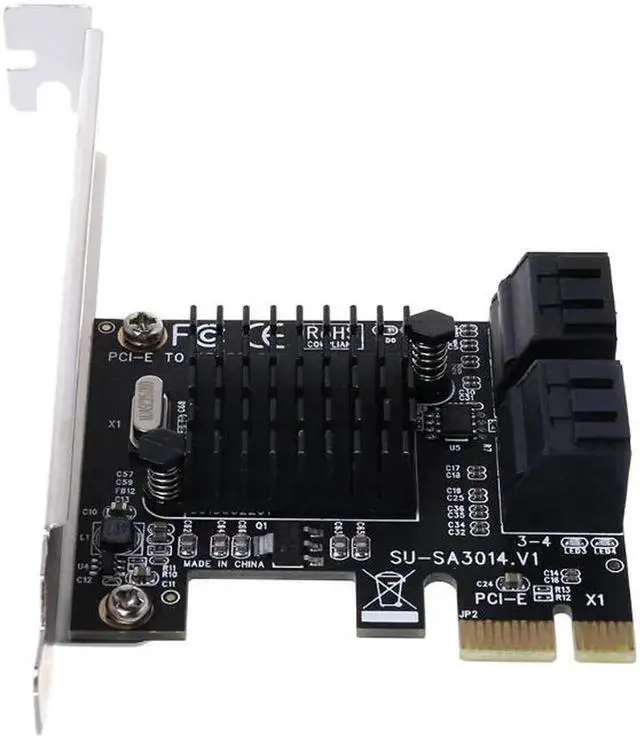

JAENFONG PCI-E x1 to 4 Ports SATA3.0 6G High Speed Expansion SATA Controller Card Mining Card Miner Adapter Card SSD IPFS Mining Adapter Card Marvell 88SE9215 With High/Low Profile Bracket

Feature:

1. With large heat sink, heat dissipation is better.

2. The design of the rear four ports is more convenient to wire.

3. Rear four port design, suitable for all kinds of chassis.

4. The design of the tail edge, and the probability of blocking the card player is smaller.

5. The four layer circuit board, with the addition of isolation layer in the middle, has stronger anti-interference capability.

6.

Support AHCI mode Specification: Main

Chips: Marvell 88SE9215

Bus interface: PCI-EX1 (compatible with X4, X8, X16/ graphics card interface)

Number of interfaces: SATA 3.0 interface X4

Product size: 12x 6.5 x 5.6CM / 4.72 * 2.56 * 2.2 ''

Product weight: 70g

System support: support for Windows XP/2003/ Vista/win7/win8/win10 (32/64bit)/MAC/NAS/Linux operating system Rear 4-port SATA 3.0 interface for easy wiring. Meets Serial ATA 3.0 specification, backward compatible with SATA 2.0 SATA 1.0. Compliant with PCI-Express v 2.0 specification, backward compatible with PCI-Express v 1.0. Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i. Supports Four SATA. Supports AHCI mode. Supports native command queue (NCQ). Supports FIS based on port multiplier switches or command switches. Hot-swappable and hot-swappable. Compatible with SATA6G, 3G and 1.5G Hard Drives. Supports Windows 10/ 8/ 7(32/64 bit)/ Vista (32/64 bit)/ XP/ 2003/ 2008/ linux System. Expansion Card only, other accessories demo in the picture are not included!

Specification:

Material: Plastic+Metal

Bus interface: PCI-Express x1 slot(Compatible PCI-E X2 X4 X8 X16 )

Extension Ports: 4 SATA 3.0 interfaces

Heatsink: with a Big Heat Sinks for Long Time Safe Working.

Feature: Single Port Speed Up to 400MB

Function: for SSD HDD IPFS Mining
