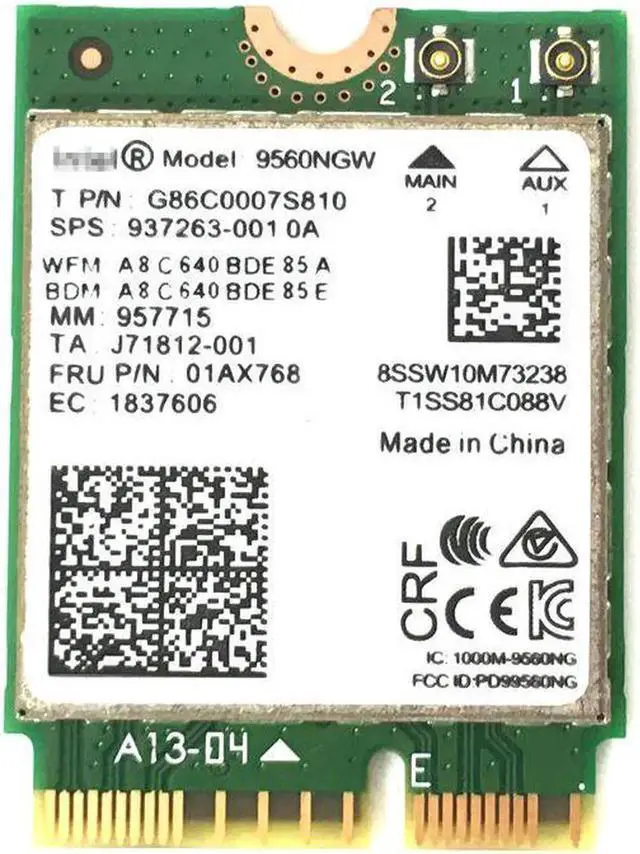

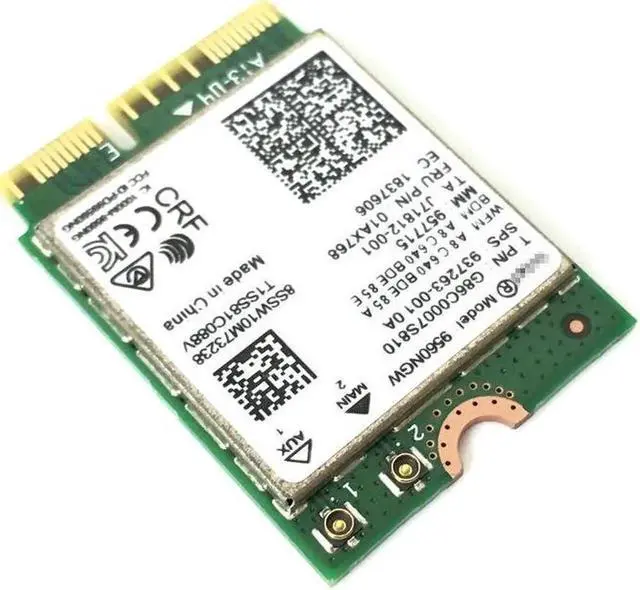

JAENFONG Dual-Band Wireless AC 9560 for Intel 9560ngw 802.11ac NGFF 2.4G / 5G 2x2 Wi-Fi Card Bluetooth 5.0 NGFF /M.2

Model: 9560NGW

Connector interface: M.

2: cnvi

Frequency range: 2.4 GHz / 5

GHz Speed: 1.73 Gb/s (router must be at 160 MHz)

Network standards: 802.11 a / B / G / N, 802.11AC

Bluetooth: 5.0

Operating System: For Microsoft Windows 10 / Linux / Google Chrome OS only.

Please note: It cannot support Win 7/8. Not support IBM/Thinkpad/lenovo/hp laptop.

feature: The Intel Wireless-AC 9560 adapter is a crf2 (supported RF module) that supports an integrated wireless standard, Intel 802.11 ac, consisting of cnvi3 and CRD. The solution offers Bluetooth+5 and 2x2 802.11 ac Wi-Fi, including Wave 2 features such as 160 MHz transmission channels, up to 1.73 gbps4 and downlink mu-mimo. Compared to traditional 802.11 ac devices, these features significantly increase user speed in tight deployments, supporting fast downloads and long battery life. The Intel Wireless-AC 9560 processor, combined with an Intel Core processor and exclusive Intel wireless innovation technology, provides wireless speed4 technology and significantly improves the related experience at home, work or on the go. Currently, it

only supports certain processors: Eighth Generation Intel® Core

TM Processor Intel® Pentium® Processor Based on Gemini Lake Celeron® processor based on

Gemini Lake Note: Although you can insert these CRFs into the E. Key socket's M. 2 standard, they are only compatible with systems developed using cnvi. Please contact the system or motherboard manufacturer for compatibility check
