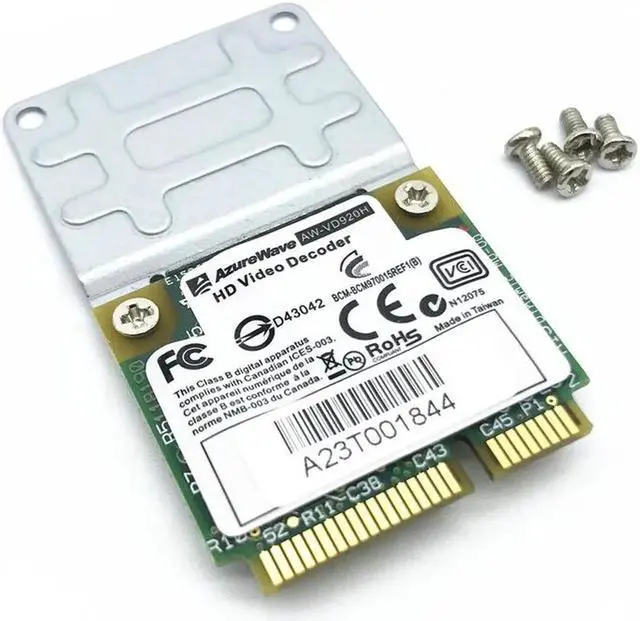

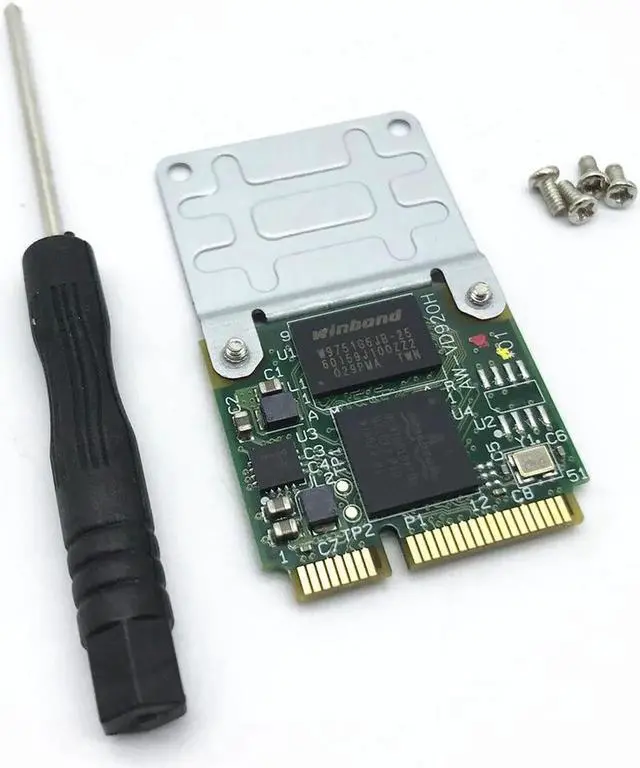

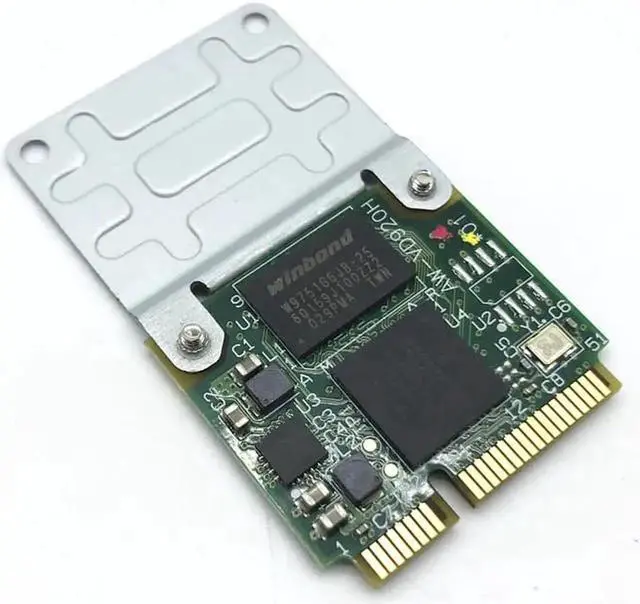

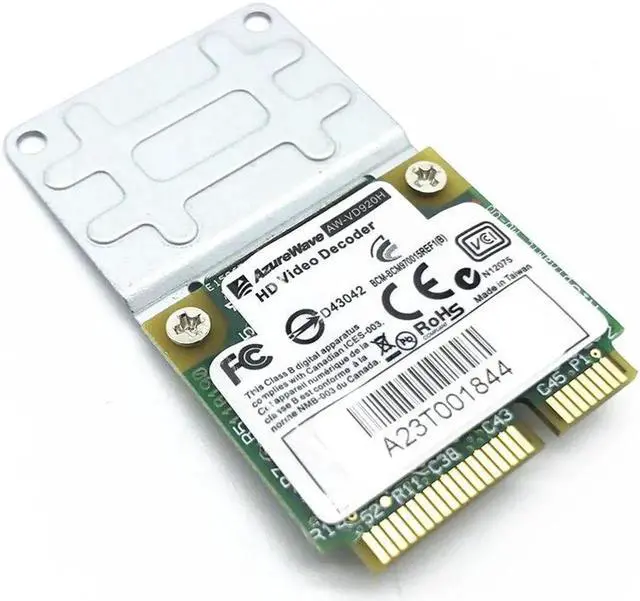

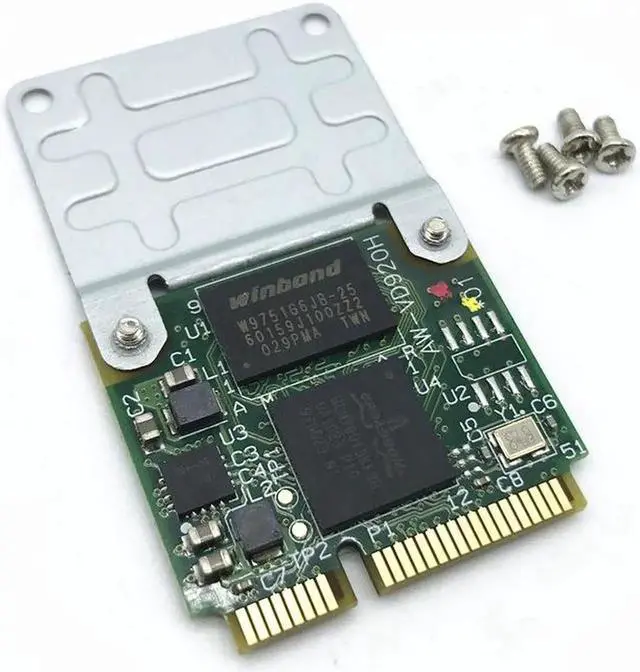

JAENFONG 1080p Broadcom Crystal HD Decoder BCM70015 BCM970015 Better than BCM70012

Features: The BCM70015 (marked as BCM970015 in the old version) Crystal HD is a video/audio hardware decoder in the PCIe Mini Card half-height form factor. It is designed to reduce CPU utilization and allows for full HD real-time decoding support for mobile platform solutions. The BCM70015 single-chip Crystal HD advanced media processor is a low cost, low power (less than 1 W energy consumption), highly integrated solution for high definition (HD) video playback applications. It is targeted for multimedia applications such as HD playback and broadcast and other TV sources. It is excellent for use in small form factor systems that require high-end graphics support but can't compromise power consumption or platform footprint.

Specifications: Form

Factor: PCI Express Mini Card (half-height with extension adapter)

Chipset: AVC, DivX, MPEG-2/4, VC-1

Video/AudioDecoder: BCM70015

SupportedResolution: QCIF up to 1920 x 1088 HD

VideoDecodingFormats: H. 264/AVC HP @ L 4.2 1080p60, 40 Mb/sec. VC-1 Advanced Profile @ L 3.0, 45 Mb/sec. SMPTE VC-1 AP @ L3, 45 Mb/sec. WMV9 (VC-1 SP @ ML and MP @ HL) MPEG-4 Part-2 SP and ASP 1080p30 MPEG-2 MP @ HL, LL, and ML, 80 Mb/sec. DivX 3.11, 4.1, 5. X, 6.

X,

XviDSecurity: AACS, AACS+ Support for various DRM implementations Firmware verification Secure (encrypted) external EEPROM memory storage for content and keys DRAM protection PCIe bus protection

Components: Single-chip Advanced

VideoDecoderPleasenote: For compatible software and the most up-to-date drivers and support (including Linux drivers) please see the Broadcom website.

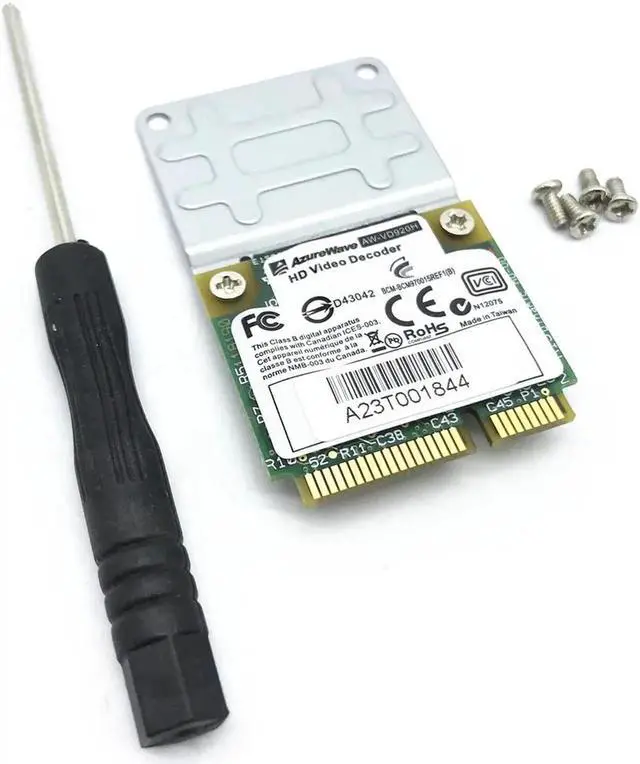

PackageIncludes: 1 x Broadcom BCM970015 Hardware Decoder Adapter 4 x Screws 1 x screw driver
