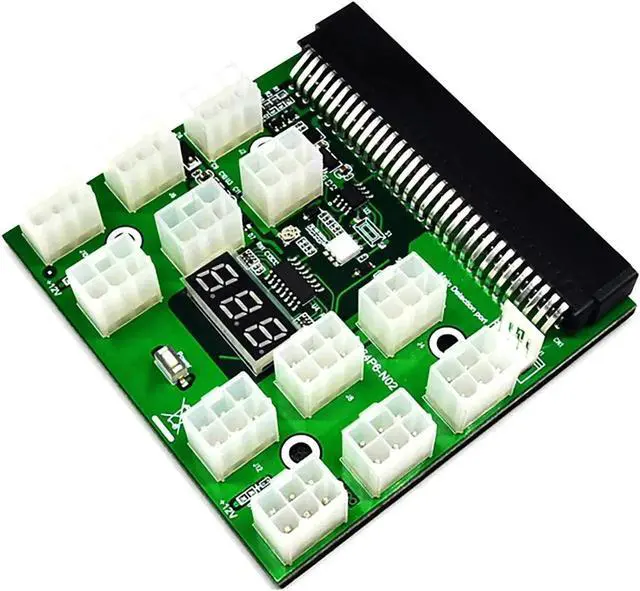

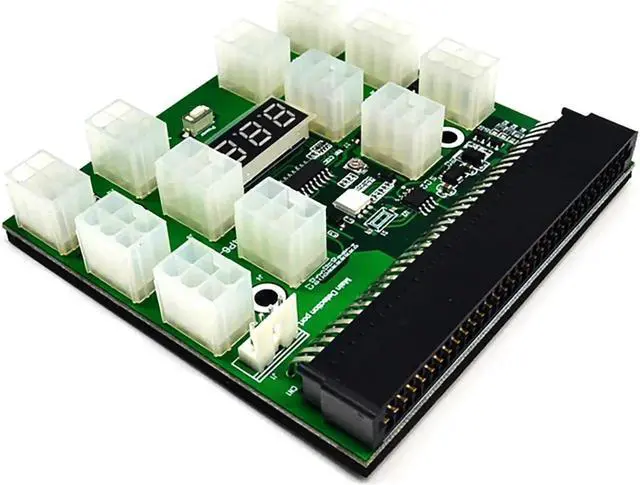

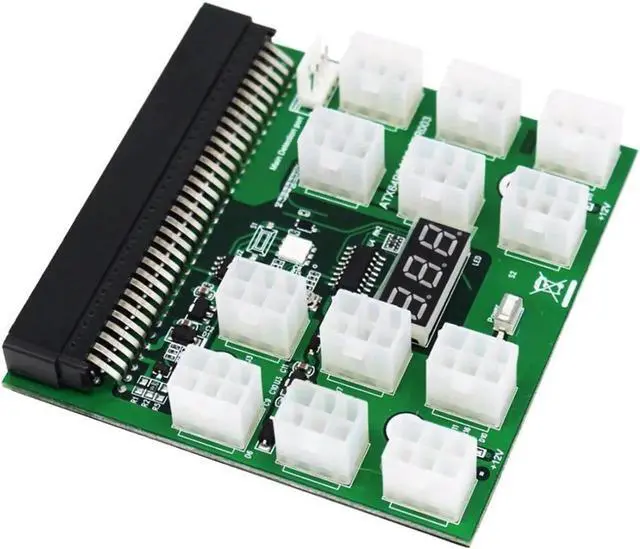

JAENFONG PCI-E 12V 64Pin to 12x 6Pin Power Supply Server Adapter Breakout Board for HP 1200W 750W PSU Server GPU BTC Mining

PCI-E 12V 64Pin to 12x 6Pin Power Supply Server Adapter Breakout Board for HP 1200W 750W PSU Server GPU BTC Mining Specification: Product

brand: XT-XINTE

Cable length: approx. 80cm/ 2.62 ft

Product interface: ATX 6PIN TAT bus interface

Support system: compatible with all WINDOWS systems, LINUX

MAC Features:

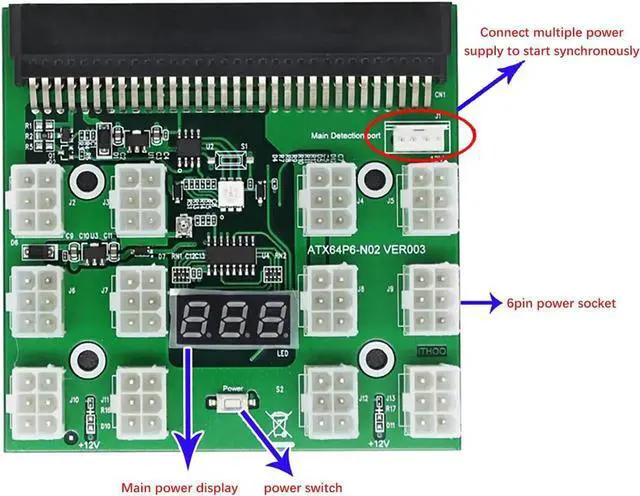

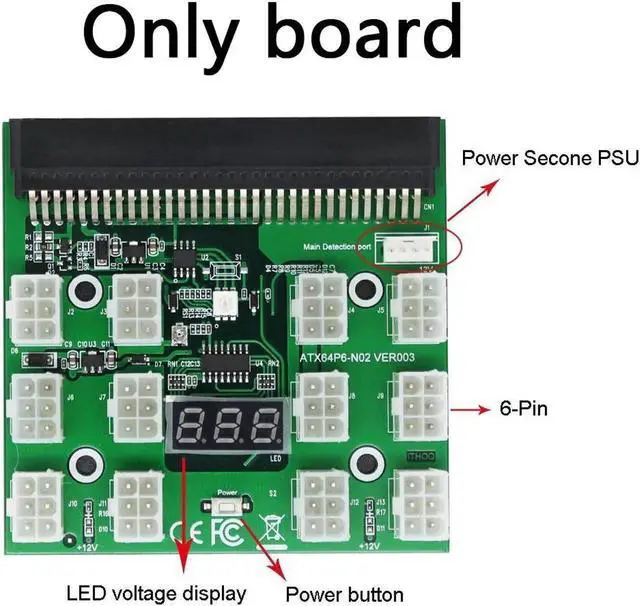

1: The power board with LED voltage display, which can display the voltage of the main power in real time.

2: The floppy drive 4PIN is connected to the main power supply and can be turned on and off synchronously.

3: Turn on the power switch when you press the white button.

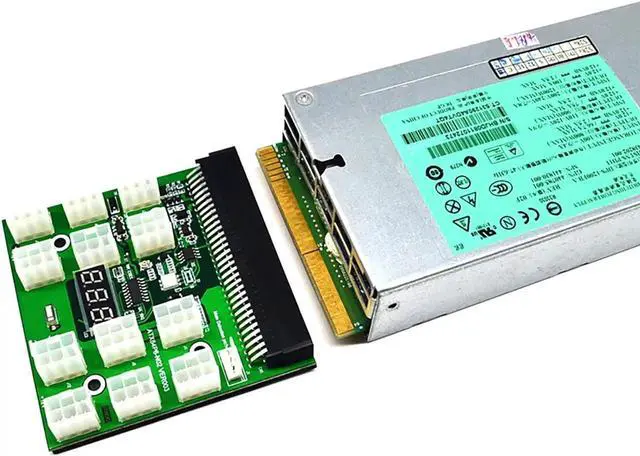

4: When the power cable is plugged in, press the power switch, the tri-color LED flashes, and the LED display shows the voltage. Applicable to common server power to: DPS-1200FB A DPS-1200QB A PS-2751-5Q PS-2751-LF-1F HSTSN-PL12 DPS-700LB D PS-2112-5L DPS-750RB A Wam Tips:

1. When the floppy drive power line is connected to the main power supply, the power switch is invalid. The switch will turn on with the power supply.

2. The matching wire is customized, please do not insert any cable at random.

3. When inserting the line, we must recognize the direction, do not insert the reverse or insert partial position, prevent the burning of the equipment. When inserting the line, hold the socket of the equipment first and then insert the cable, so as to avoid the plug in the socket forcibly and damage the pin.

Package included: 1 x Power Supply Server Adapter Breakout Board
