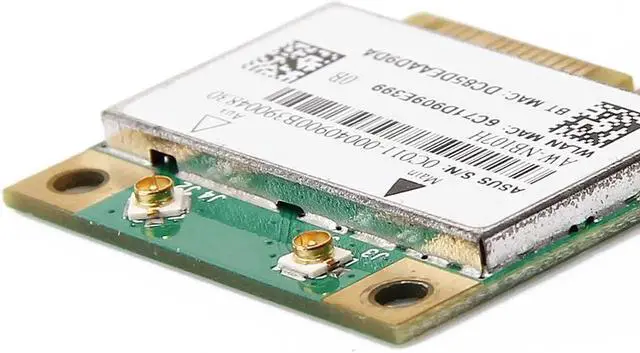

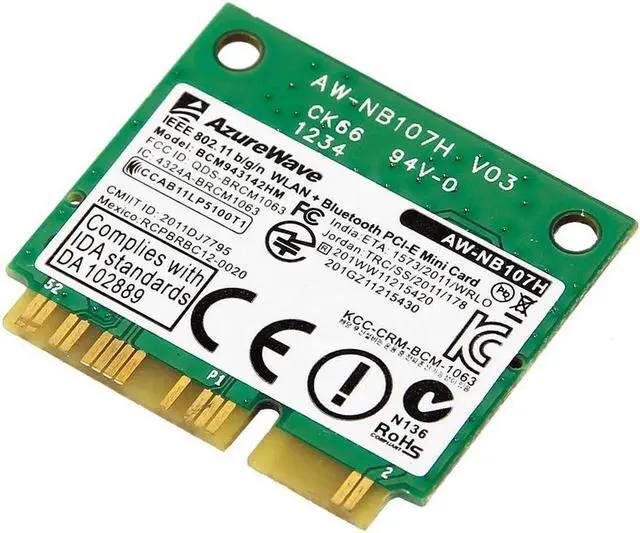

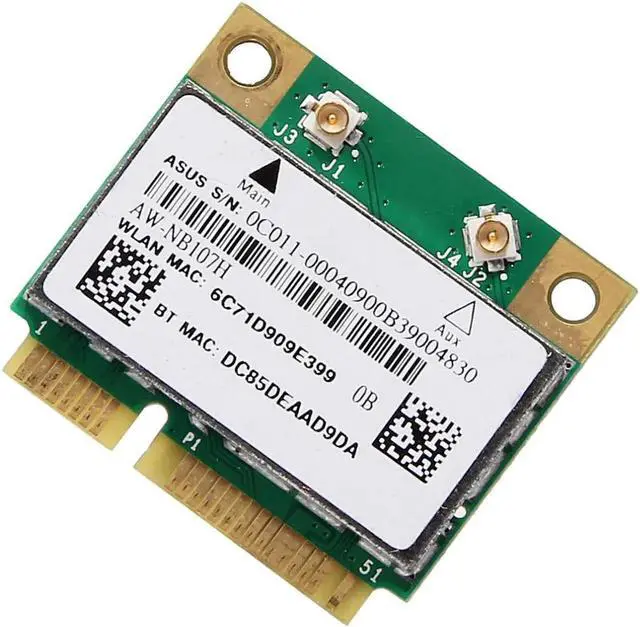

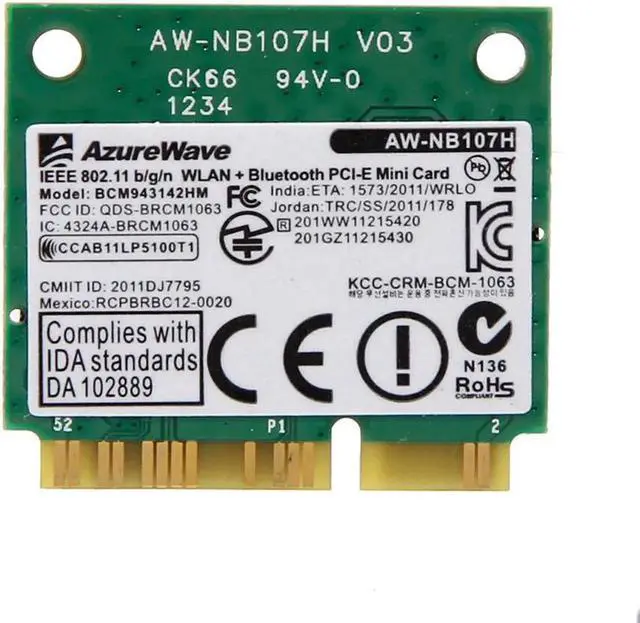

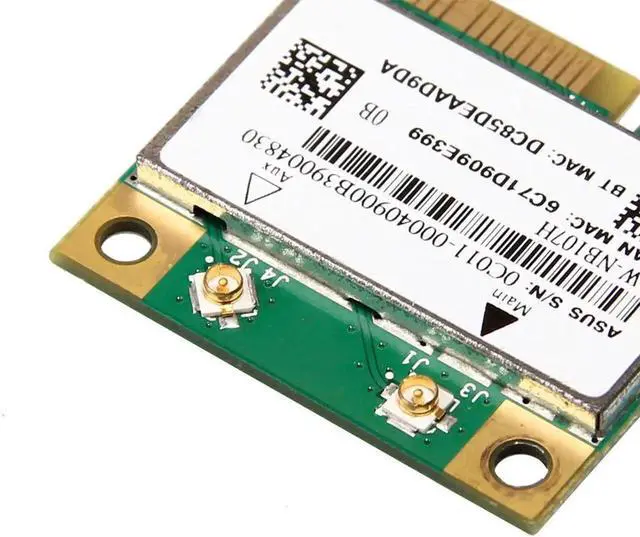

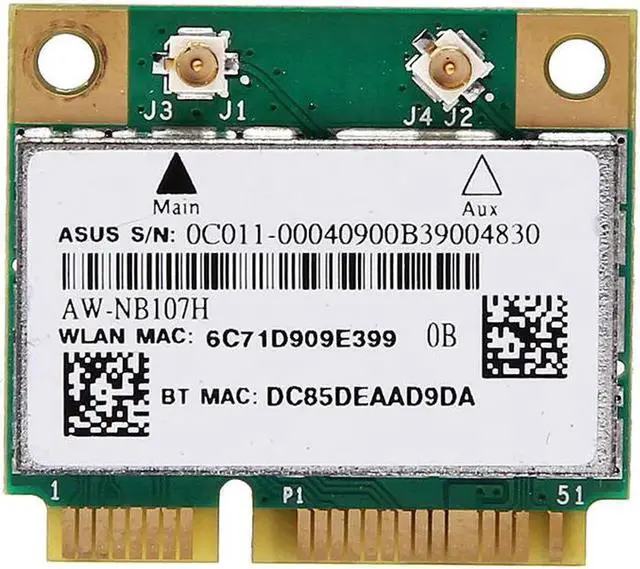

JAENFONG AzureWave AW-NB107H BCM943142HM Half Mini PCIE Wlan WIFI Card BT4.0 802.11 b/g/n

Azure

Wave AW-NB107H BCM943142HM Half Mini PCI-Express Wlan WIFI Card BT 4.0 802.11 b/g/n + Bluetooth 4.0 2.4GH z not for IBM/Lenovo/Thinkpad and

HP Feature:

Brand: Azure

Wave

Modell: AW-NB107HMajor

chipset:

/BCM943142HMWifi: IEEE 802.11 b/g/n, WI-FI compliant

Device class: 802.11 b/g/n +

Bluetooth 4.0I nterface: Half

Mini Pci-eDimension: 29.85 x 26.65 x 3.5 mmBios: Standard / Public

Version

Frequency Range: 2.4GH z ISM Bands 2.412 - 2.472 GHz, 2.484

GHz Modulation: 802.11

g/n: OFDM

802.11 b: CCK(11, 5.5M bps), QPSK (2Mbps), BPSK (1Mbps)

Output Power: 802.11

b: 16 dBm +/- 1.5 dBm 802.11 g: 14 dBm +/- 1.5 dBm 802.11 n: 13 dBm +/- 1.5 dBm11 dBm +/- 1.5 dBmBT: -6?? Output Power?? +4 dBm (Conductive)

Receive Sensitivity: 802.11

b: 11M-76dBm

802.11 g: 54M-67Bm

802.11 n: HT20 MCS7-64dBmHT40 MCS7-61dBm

Date rates: 802.11

b: 11, 5.5, 2, 1Mbps

802.11 g: 54, 48, 36, 24, 18, 12, 9, 6

Mbps 802.11 n: up to 150Mbps

Operating Range: Open

space: 300MIn

door: 100M

Note: not fit for IBM/Lenovo/Thinkpad and

HP Package Included: 1 x BCM943142HM Half Mini PCI-Express card
