JAENFONG Wireless AC 9560 For Intel 9560NGW 802.11ac NGFF 2.4G/5G WiFi Card Bluetooth

Descriptio Model: 9560AC

Connector Interface: M.

2: CNVi

frequency band: 2.4 Ghz / 5

Ghz speed: 1.73 Gbps (the router must be 160 Mhz) network

Standard: 802.11 a / b / g / n, 802.11 ac

Bluetooth: 5.0

Operating systems: Only work with Microsoft Windows 10 / Linux / Google Chrome OS.

Pls note: It can not support Win 7/8. Pls read below carefully before using this product:

Feature: the Intel Wireless-AC 9560 adapter is a CRF2 (companion RF module) supporting the 1st generation integrated Intel wireless 802.11 ac solution consists of CNVi3 and a CRF. the solution offers Bluetooth + 5 and 2x2 802.11 ac Wi-Fi including wave 2 functions such as 160 MHz channels delivering up to 1.73G bps4 and downlink MU-MIMO. These new features deliver significant increase in user speeds in dense implementations, supporting fast downloads and long battery life compared to legacy 802.11 ac devices. Combined with Intel Core processors and exceptional Intel wireless innovations, the Intel Wireless-AC 9560 can offer Gigabit wireless speed4 and drastically improve your connected experience at home, work, or on the go. It currently only supports certain processors: 8th Gen Intel Core processors Intel Pentium Silver processors based on Gemini Lake Celeron processors based on

Gemini Lake Note: although you can insert this CRF into a standard M. 2 Key E socket, they are only compatible with a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility.

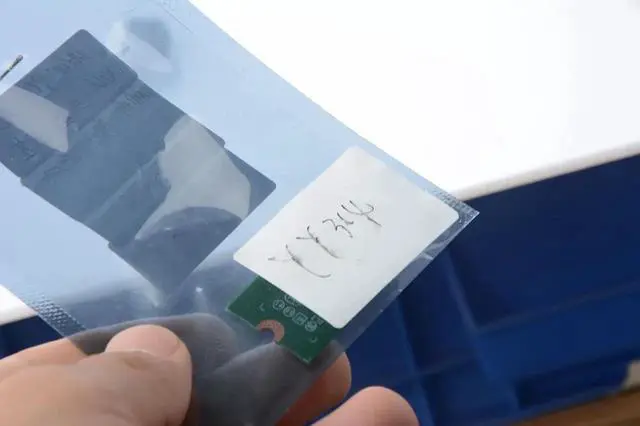

Package Inclueded: 1 * 9560AC WIFI Card
