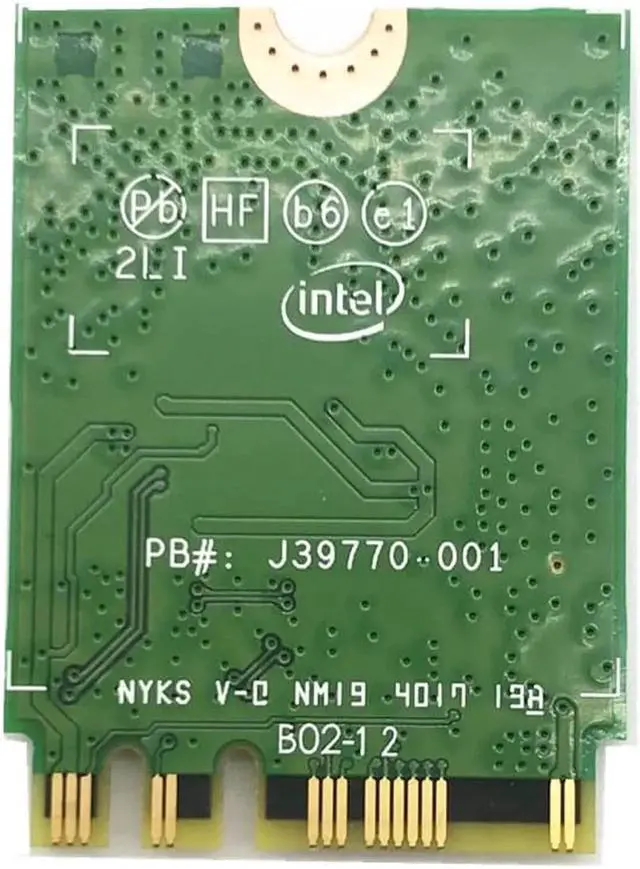

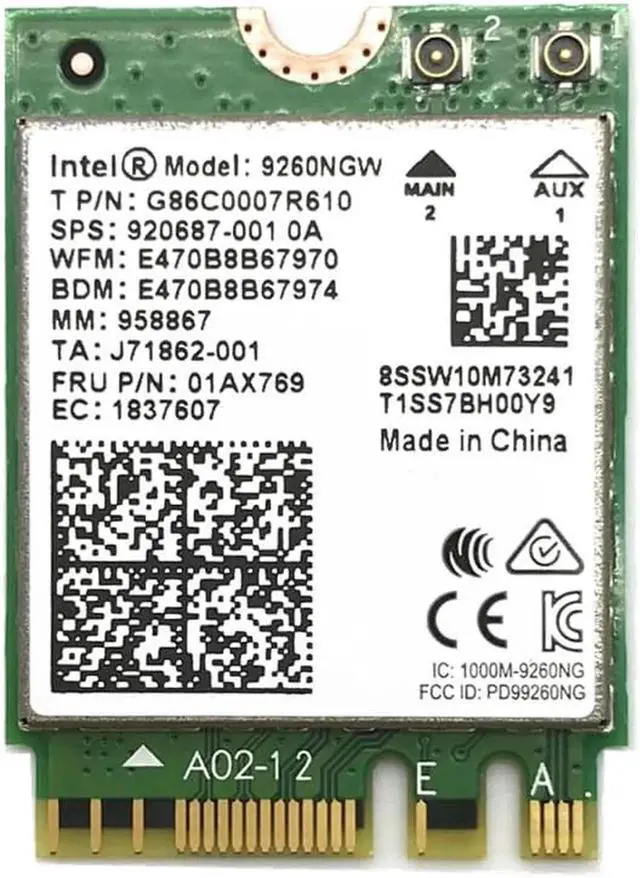

JAENFONG Antenna set of ASUS AC88U 8dbi M.2U.fl RP-SMA Cables + Intel 9260 9260NGW 802.11ac 1730Mbps WiFi Bluetooth 5.0 Card

Chipest Brand:Intel

Model: 9260NGW

Fit for Interface: NGFF Key E/ NGFF Key A

Not for (M2:CNVio)

Dual band:2.4Ghz/5Ghz(160Mhz)

Speed up to 1730Mbps (The router must on 160Mhz)

Bluetooth: Bluetooth 5.0

Networking Specifications

Max Speed:1.73Gbps ,Note:The router support 1730Mbps,and can change to 160Mbps.

Compliance:FIPS, FISMA

Board Form Factor: M.2 2230 or M.2 1216

System Interface Type:PCIe, USB

Wi-Fi Alliance:

Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected

Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct

Only support : Linux*, Google Chrome OS*, Windows 10*

Note: DO NOT Support WinXP & Vista & Win7 & win8 & win8.1

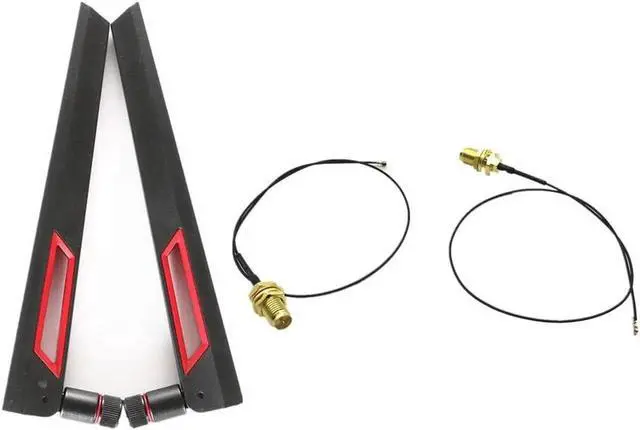

Specifications:

Antenna type: Directional

Frequency: 2400-2500 MHz

Gain: 8dBi

Impedance: 50 Ohm

VSWR: < =1.5

Connector: RP-SMA (without pin inside)

Antenna length: 19.5cm(7.6 inch)

Cable:

High Quality & Low Loss RF cable

Connector A: IPEX MHF4 U.FL connector

Connector B: RP-SMA Female jack

Cable Type : U.FL 0.81mm Cable

Gold plated contacts, nickel-plated

Machined brass construction crimp cable mount

Operating frequency: with highest quality, >= 2.4Ghz 3Ghz 5Ghz

Length: 25cm/9.8"

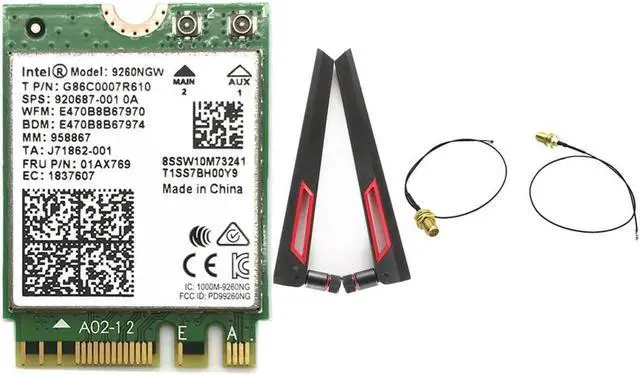

Package includes:

1 x Intel 9260 Card

2 x 8Dbi Antenna

2 x IPEX MHF4 U.FL Cable
